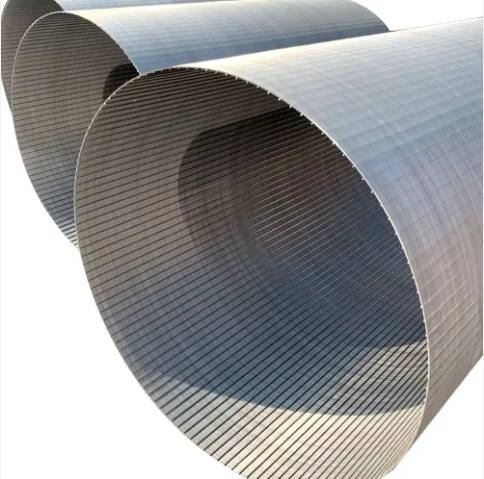

Wedge V Slotted Wire Stainless Steel 316 Sieve Cylinder Johnson Screen Filter With High Quality

Wedge V Slotted Wire Stainless Steel 316 Sieve Cylinder Johnson Screen Filter With High Quality

With more than 20 years of experience, Huadong screen knows the ins and outs of this technology. We are a reliable partner in the filtration industry. Our wedge wire filter products are available in all sorts of designs that can be tailor made to our customer's requirements. We supply into a...

Send Inquiry

Features

With more than 20 years of experience, Huadong screen knows the ins and outs of this technology. We are a reliable partner in the filtration industry. Our wedge wire filter products are available in all sorts of designs that can be tailor made to our customer's requirements. We supply into a vast range of applications like water treatment, food industry, petrochemical industry, Coolant filtration, Paper&Pulp, Nutsche filters, Manure dewatering, Aquaculture and Architecture.

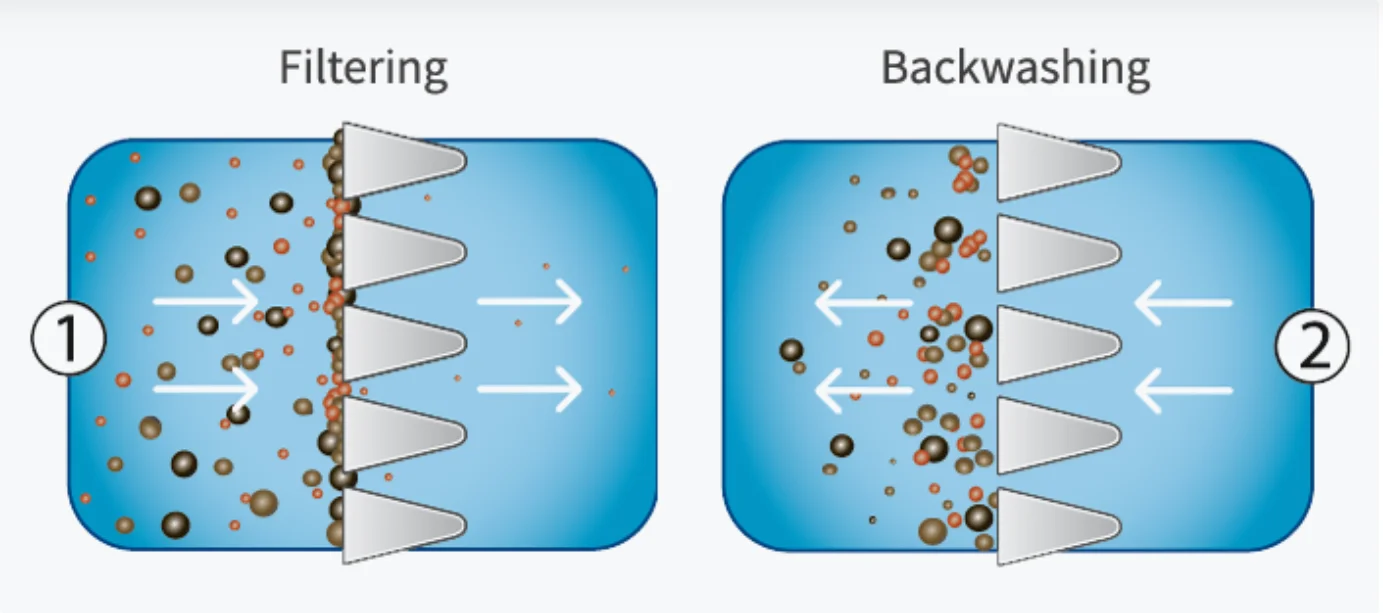

Wedge wire screen is a welded stainless steel construction mainly used for filtration, separation and retention of media. It is made of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately and forms the slot opening through which the filtrate flows.
product-1-1
product-1-1
Specification
item
value
Slot
Generally, from 0.02 mm to 3.00 mm.
(tailor made to our customer's requirements)
Screen Profiled Wire
Generally, from 0.75*1.50 mm to 3.0*5.0 mm
Support Wire
Generally, the support wire is 2.0*3.0 mm and 3.0*5.0 mm.
(tailor made to our customer's requirements)
Distance Between support wire
Generally the distance is from 10 mm to 40 mm.
(tailor made to our customer's requirements)
Material
AISI430 / AISI304 / AISI316L / AISI321
Processing Service
tailor made to our customer's requirements, including cut into various shapes.

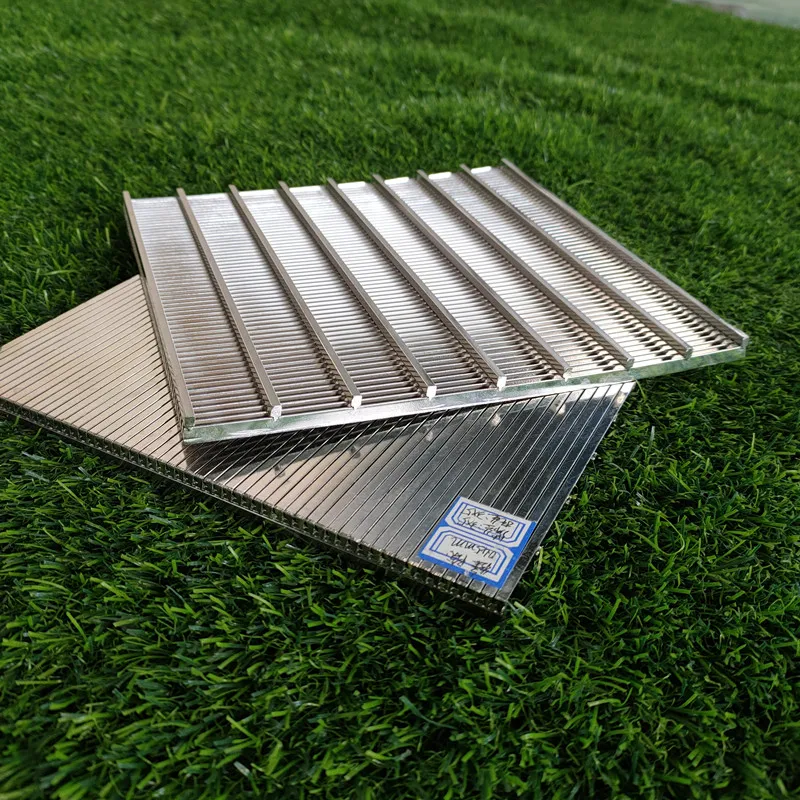

Advantages of Wedge Wire Screen Panel
* Enhanced profile wire flatness, no profile wire waviness between support wires
* Avoids the weakening of the welds and the chance of stress corrosion that can result when producing from a slot tube
* Accurate distance between support profiles
* Possibility of different support wires in one screen
* Flexibility to have variable spacing between support wires in one screen
product-1-1
product-1-1
product-1-1
product-1-1
Packing & Delivery
product-1-1
product-1-1
Wooden Pallets or Wooden Boxes to better protect your products during the transport.



FAQ

1. Who Are We?

We are production and processing Filter Mesh and deep processing products of enterprises. Our company is located in the hometown of wire mesh, wire mesh industrial base -- henan xinxiang Main production and operation of Wedge Wire Filter Screen, Wedge Wire Mesh, V Wire Screen,Johnson Screen,Slotted Screen,Perforated Metal Mesh, Punching mesh, Solid Liquid Separation Screen, Solid Liquid Filter Rotary Drum and other wire mesh products and widely used in petrochemical, environmental protection, machinery, construction, aerospace and other industries.

2. how can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?

Custom Wedge Wire Filter Screen, Wedge Wire Mesh, V Wire Screen,Johnson Screen,Slotted Screen,Perforated Metal Mesh, Punching mesh, Solid Liquid Separation Screen, Solid Liquid Filter Rotary Drum and other wire mesh products

4. why should you buy from us not from other suppliers?

Our company has more than 100 people in the production department; packaging department: 20-30 people; inspection department: 10-15 people; sales department: 30-40 people; engineers: 10-15 people; product managers: 10 people; in filtration design and rich experience in manufacturing filtration products

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,Express Delivery,DAF; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English
