Wedge Wire 0.25mm Slot Sand Control Screens Stainless Steel Johnson Pipe For Water Well Filter
Product Description Wedge wire is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. Products Show Our...
Features
2.High mechanical strength, high corrosion resistance, acid-resistant, heat-resistant;
3.Guaranteed size of the slot tight tolerance to ±0.015mm;
4.Filtration direction can be outside to inside or inside to outside;
5.High capacity filter surface, effective backwashing, and long trouble-free life.
|
Slot size(Opening)
|
0.5mm, 0.75mm, 1mm or customer's requirement
|
|
|
Support rod pitch
|
1.5-3cm or customer's requirement
|
|
|
Profile wire size
|
2.2mm*3.5mm, 3mm*4.6mm, 3mmx6mm
|
|
|
Support bar size
|
3mm, 3.8mm, 4mm or other
|
|
|
Outside diameter
|
4'', 6'', 8'', 10'' 12'' 24'' or Customized
|
|
|
Length
|
2.9m, 5.8m etc
|
|
|
End finishing
|
Thread fitting, Flange, Closed Plated, Metal Ring, etc
|
|
|
|
|
Detailed Image

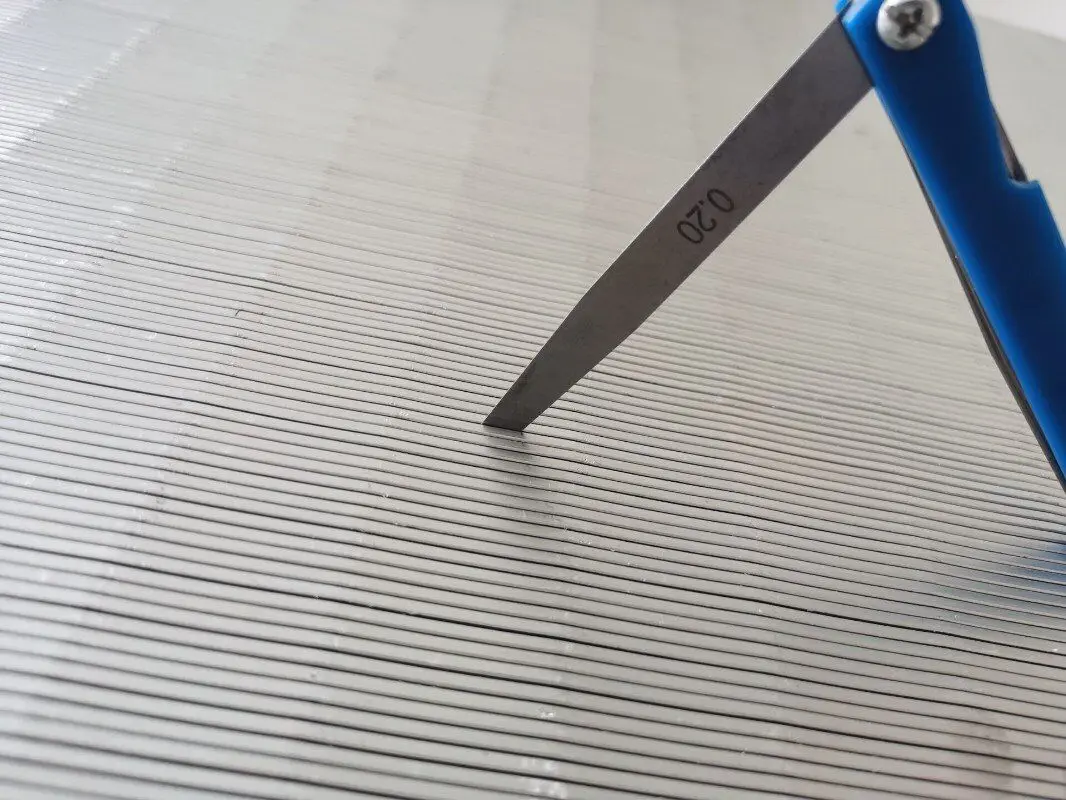

Slot gap:0.2mm

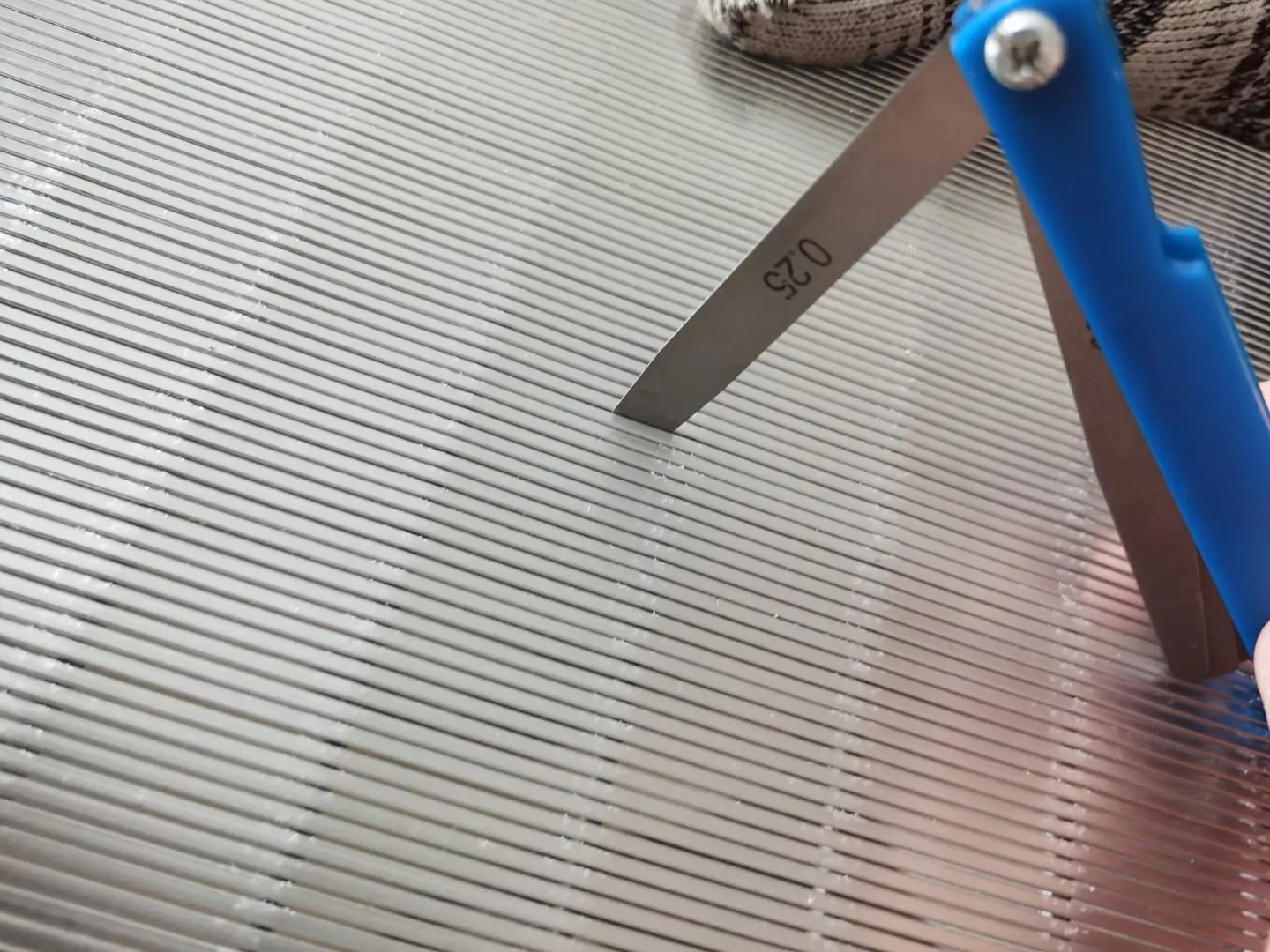

Slot gap:0.25mm

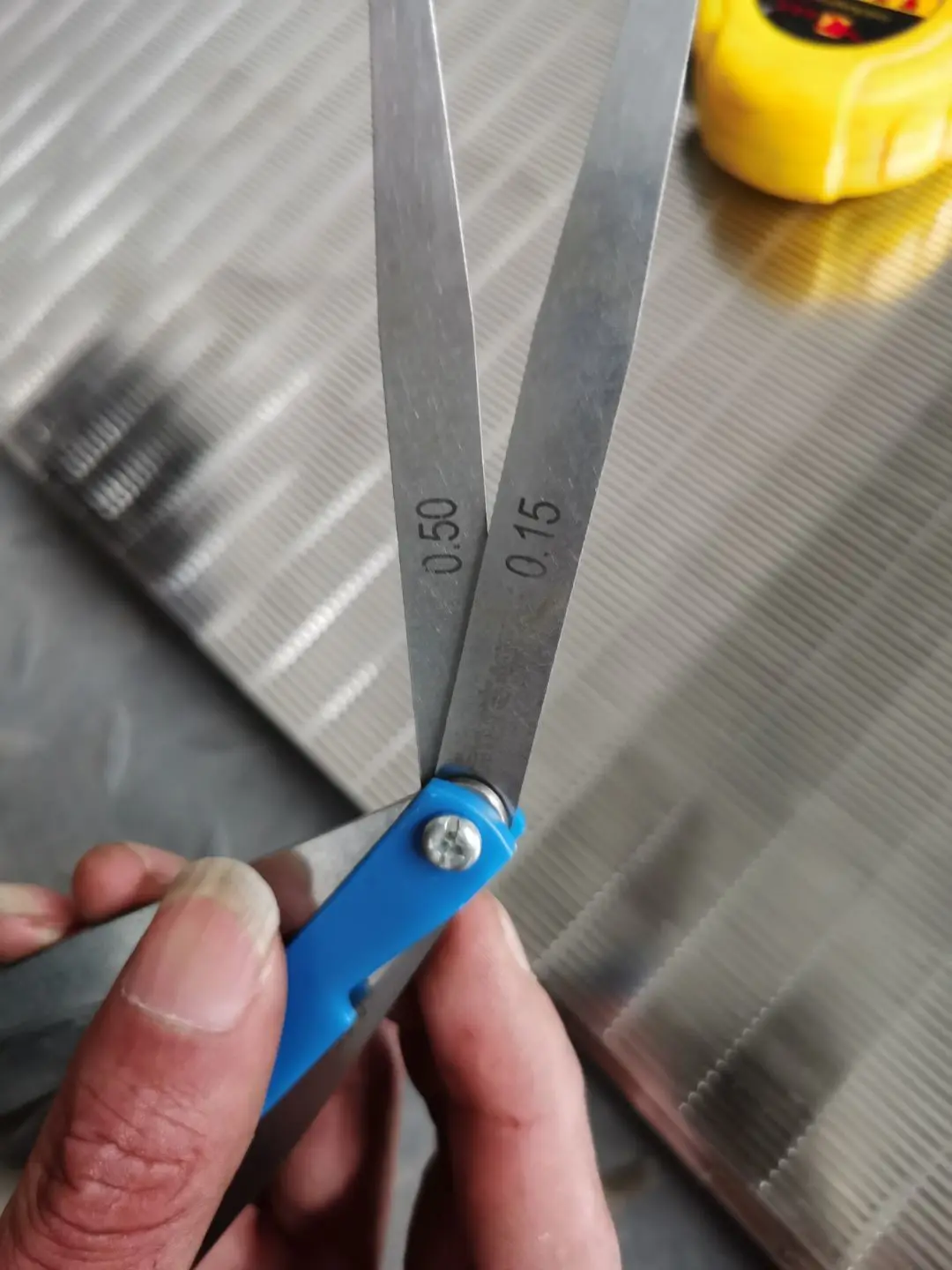

Slot gap:0.15mm

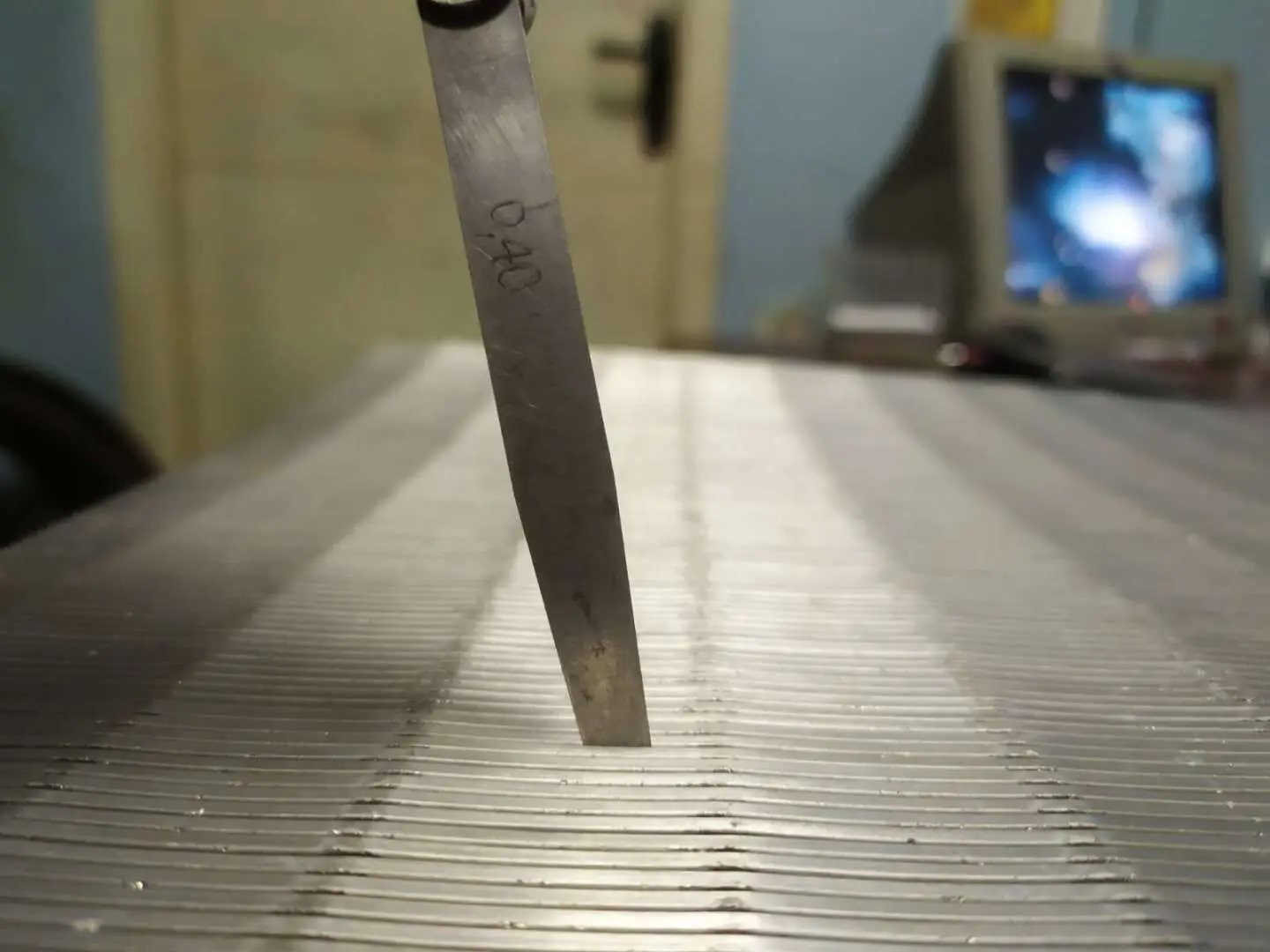

Slot gap:0.4mm

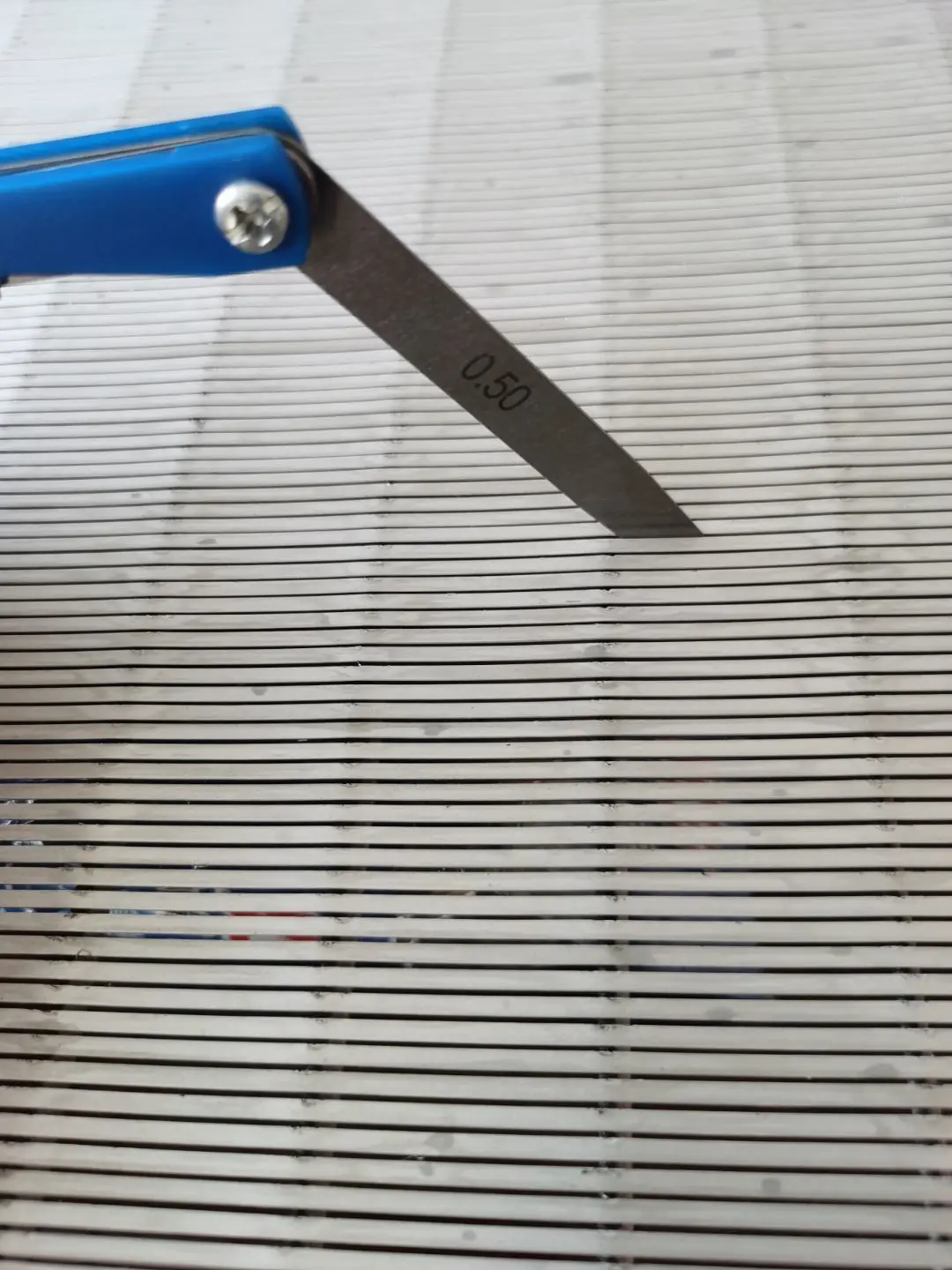

Slot gap:0.5mm.

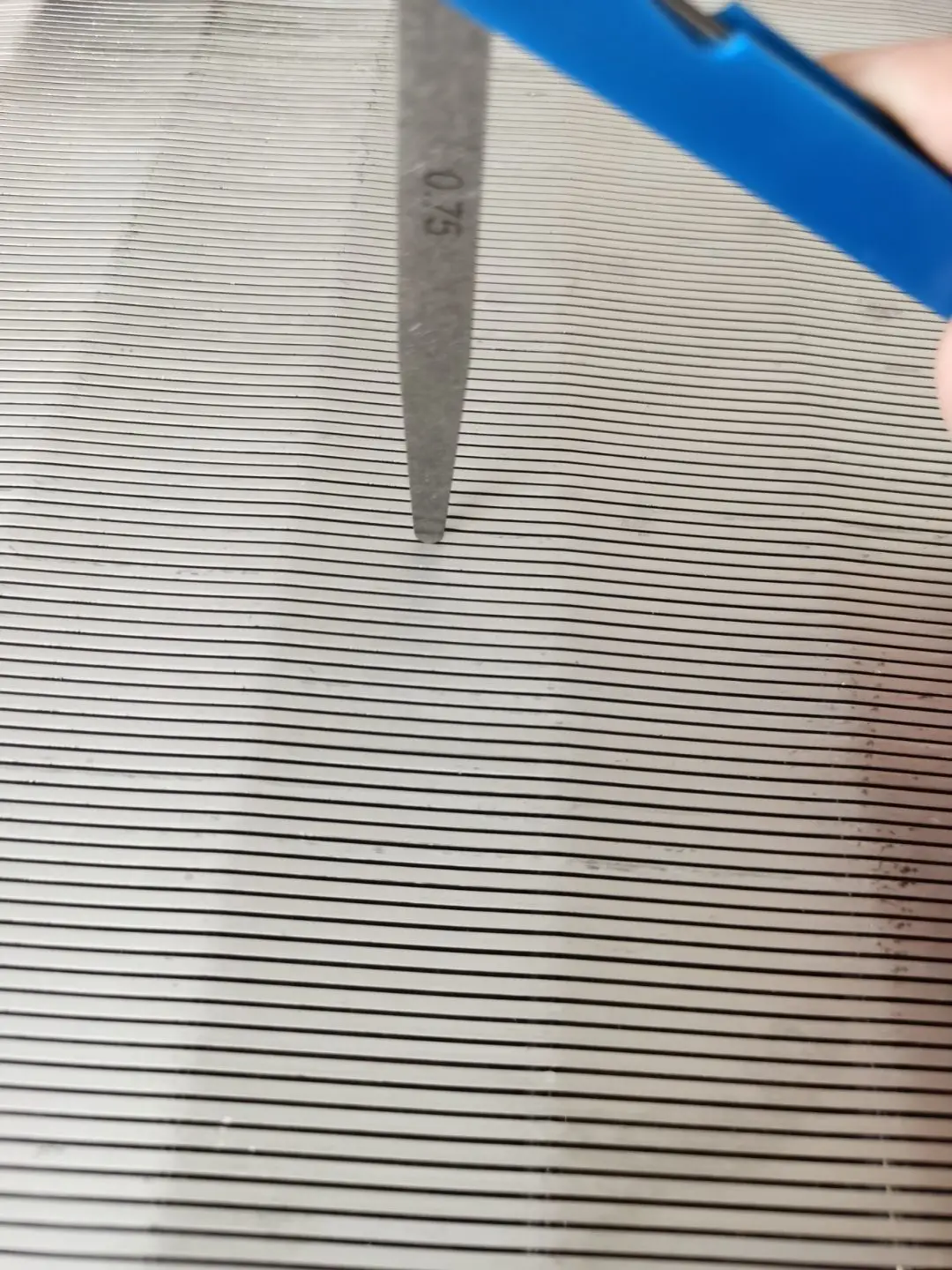

Slot gap:0.75mm

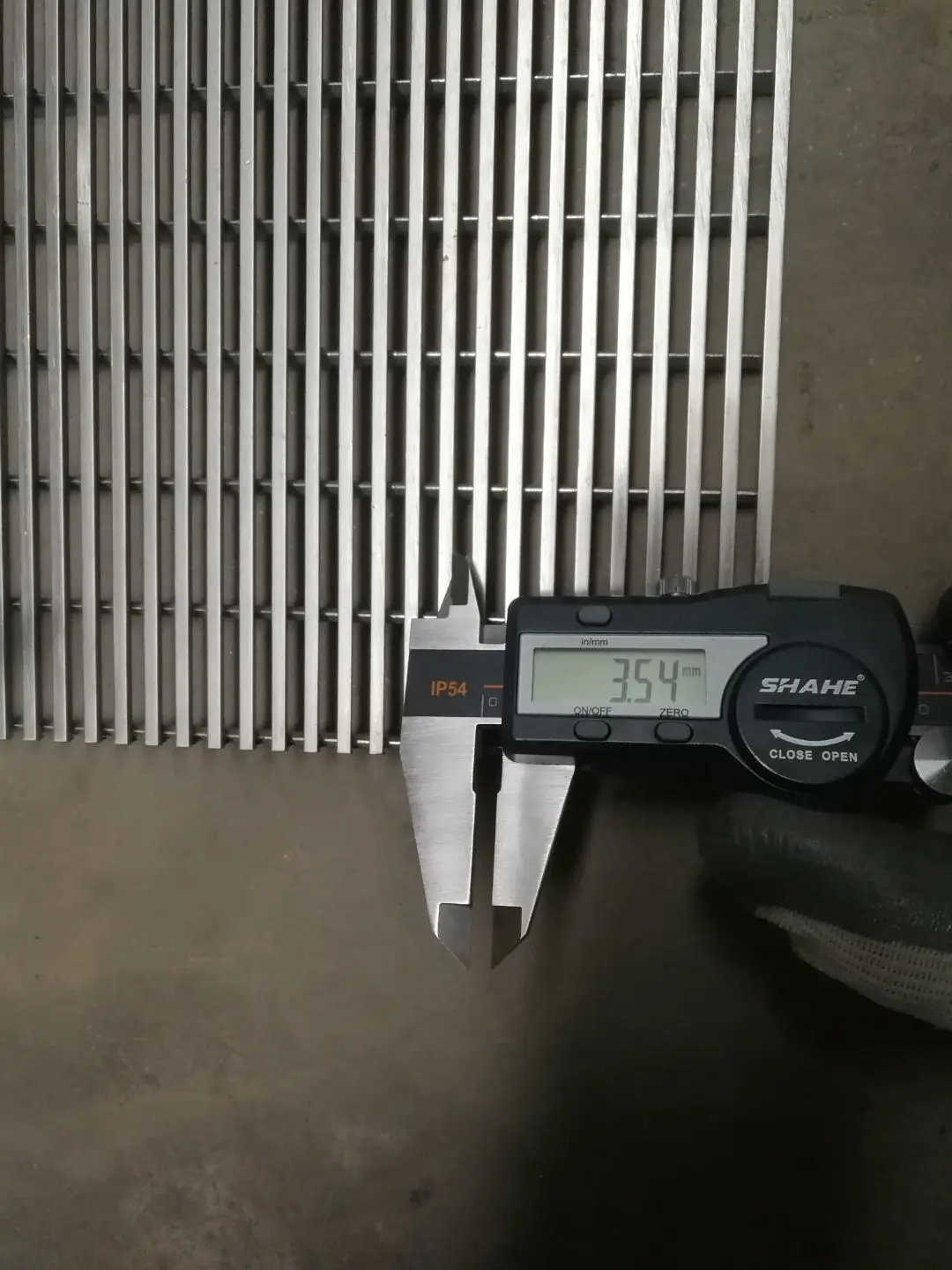

Slot gap:3.54mm
Slot gap:4.8mm

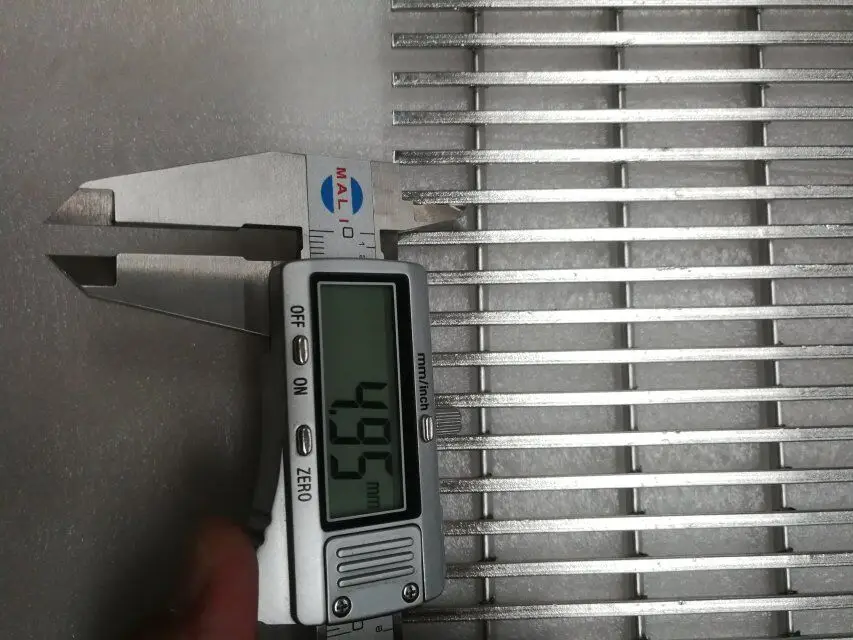

Slot gap:4.95mm
