Stainless Steel Water Well Wedge Wire Screen Hub and Lateral Distributors

Wedge wire lateral assemblies is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

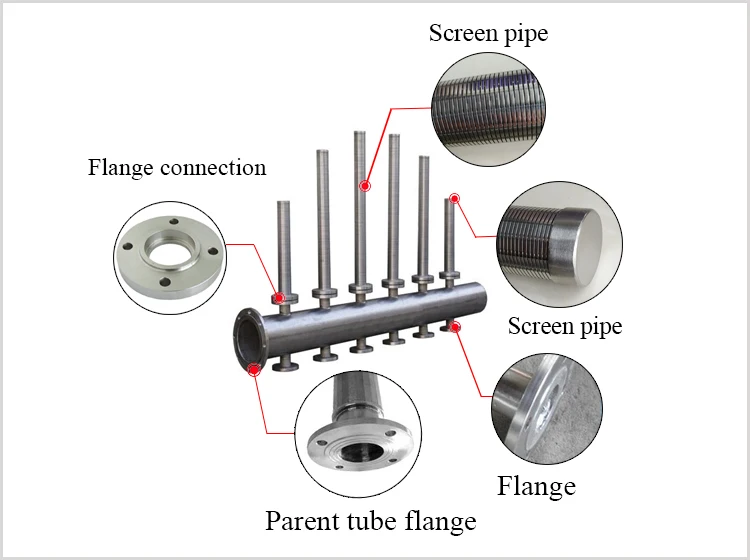

Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Specification

Material	SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc
Normal Lateral Tube QTY (PCS)	4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.
Lateral OD Range (mm)	25 to 80mm, customized
Normal Header diameter (mm)	According to flow rating, thread and flange diameter, and customers' requirement
Header and lateral connector types	Thread, Flange
Diameter Range(mm)	According to the tank diameter. (Usually 200mm shorter than tank diameter)
Slot Range(mm)	Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm. Slot according to request.

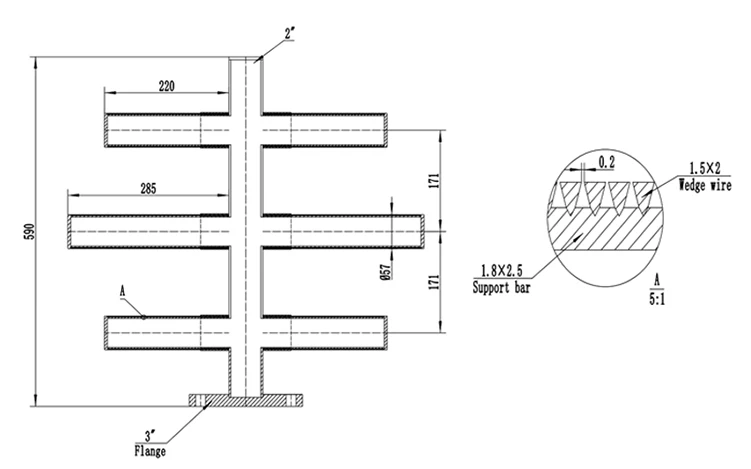

Wedge Wire(mm)	1x2	1.5x2	2x3
Support Rod (mm)	1.5x2.5 2x3	1.8x2.5 2x3	2x3 2x4
Note	Customized According To Requirement

Application

FAQ

• 1.IS huadong screen Factory or Trading Company?

We has our own factory. professional on wedge wire and filters production and export for more than 20 years.

• 2.HOW ABOUT THE MOQ?

MOQ according to different product, sometimes MOQ decided by customer.

• 3.Cou You supply the sample?

We could offer the sample for free charge but the cost of freight is extra.

• 4. What payment term do you accept?

T/T ,L/C at sight, Western Union, and other mainstream payment term.

• 5. How about the delivery time?

Usually within 3-15days after receiving the deposit;

• 6.Where is your Market?

We have been exporting to more than 120 different countries and regions all over the world.

• 7.How About your sales service?

Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
