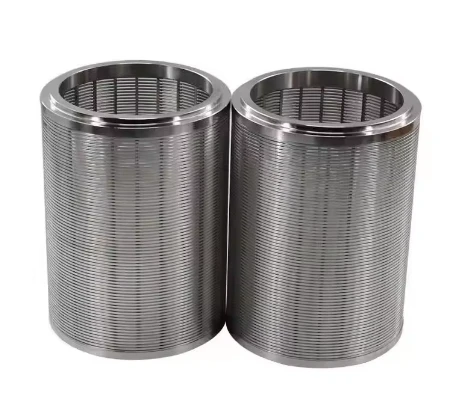

Stainless Steel 316 304Wedge Wire Tube Johnson Pipe Filter

Stainless Steel 316 304Wedge Wire Tube Johnson Pipe Filter

Stainless Steel 316 Wedge Wire Tube Johnson Pipe Filter Products Description Product Features *Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging. *High-precision slot sizes: precise slot...

Send Inquiry

Features

Stainless Steel 316 Wedge Wire Tube Johnson Pipe Filter
Products Description

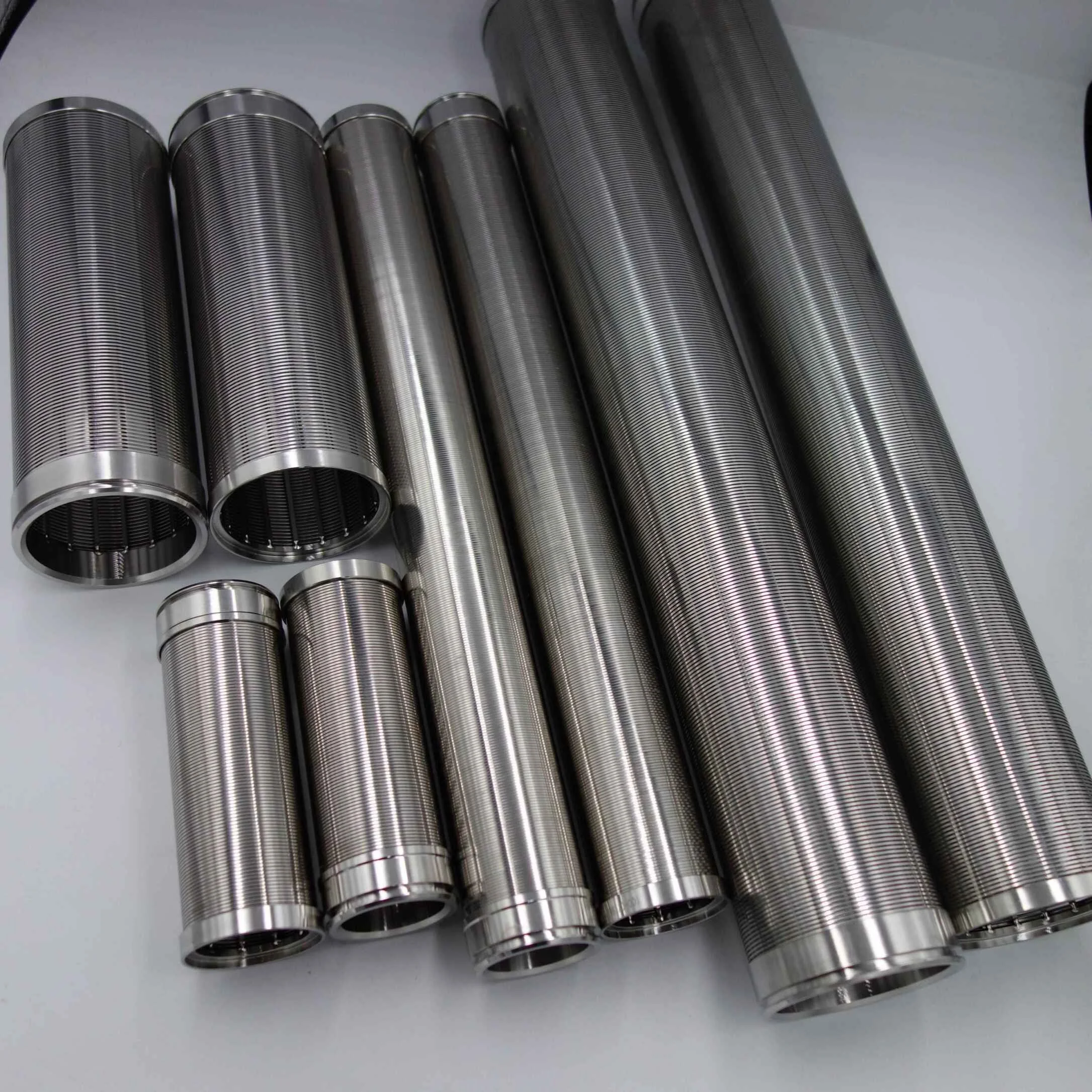

product-1-1
Material
Stainless steel 304 or 316
OD
19mm-2000mm
ID
13mm-1981mm
Length
Up to 6000 mm
Slot
20 micron to 3000 micron
Wedge wire
0.5x1.5,0.75x1.5,1x2,1.5*2,2x3,2*4,3x5
Support rod
1.5x2.5,2x3,2x4,3x5,3x6,3x10,4x7,5x6,5x8
End finishing
Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc



Product Features

*Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.


*High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.

*Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.
*Low pressure-drop.


* Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.

*High efficiency: continuous slot opening.
* Large flow rate: "v" shaped profile wire ensures a uninterrupted flow.
