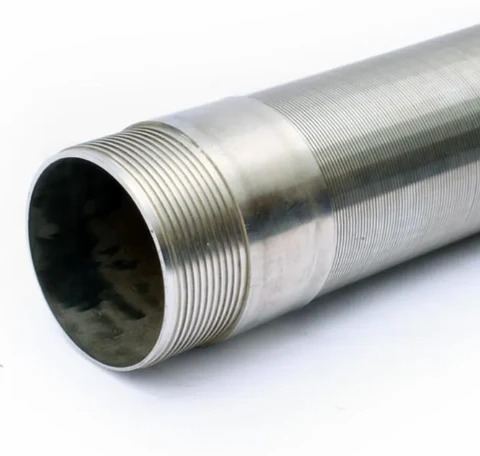

Stainless Steel 304l Wedge Well Screen Filter Used For Drilling Well Oil Well
Product descriptions from the supplier Overview stainless steel water well screen filter used dor drilling About Huadong: Huadong screen Co., Ltd is located in Henan Province Xinxiang Dakuai Industrial Park, which is collection of scientific research, production, manufacturing, sales and service...
Features
Product descriptions from the supplier
Overview
stainless steel water well screen filter used dor drilling
About Huadong:
Huadong screen Co., Ltd is located in Henan Province Xinxiang Dakuai Industrial Park, which is collection of scientific research, production, manufacturing, sales and service as one of the major high-tech enterprise. We have a group of professional technical and sales staff and management team, extensive and stable business channel as well as the strong economic strength, international and domestic marketing ability.
Advantage:
1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2.A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
|
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
|
4 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
|
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
|
6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
|
8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
Packing details:
Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly
marked with:
Name & identification mark of manufacturer-HuaDong Brand
Batch number
Date of manufacture
Material
Safe heating & application temperature
application
The continuous-slot water well screen filter is widely used for the construction of the building of the hydrologic geology, Coal Geology, chemical, geological, geothermal air conditioning, foundation precipitation, water source development, urban water supply and other walks of life.
