Stainless Steel Sand Filter Nozzle Filter For Water Filtration System

Stainless Steel Sand Filter Nozzle Filter For Water Filtration System

Product descriptions from the supplier Overview stainless steel sand filter nozzle filter for water filtration system Product Description Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size...

Send Inquiry

Features

Product descriptions from the supplier

Overview

stainless steel sand filter nozzle filter for water filtration system



Product Description

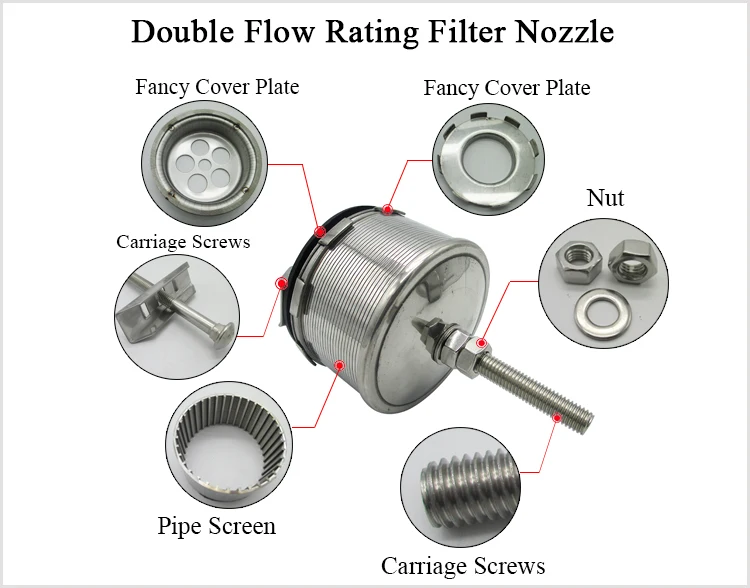

Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot.
To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.
Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Advantages for stainless steel wedge wire sand water nozzle filter

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006"(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Specifications

stainless steel sand filter nozzle filter for water filtration system

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement



Various kinds of filter nozzle



stainless steel sand filter nozzle filter for water filtration systemstainless steel sand filter nozzle filter for water filtration systemstainless steel sand filter nozzle filter for water filtration systemstainless steel sand filter nozzle filter for water filtration systemproduct-750-548product-750-671stainless steel sand filter nozzle filter for water filtration system



Application

stainless steel sand filter nozzle filter for water filtration system
