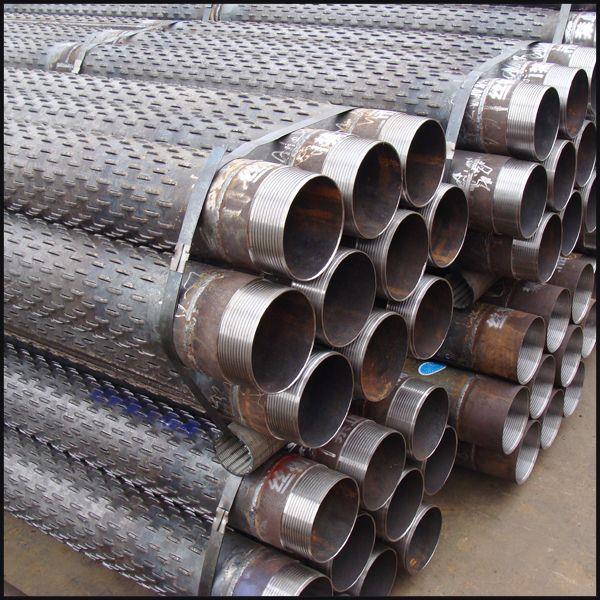

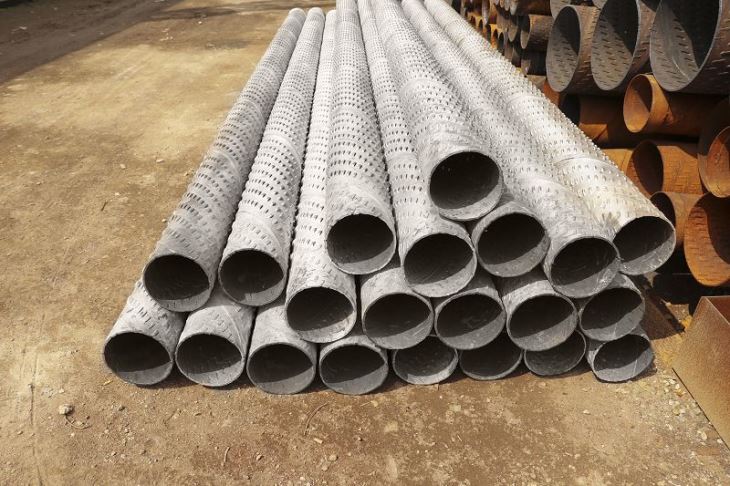

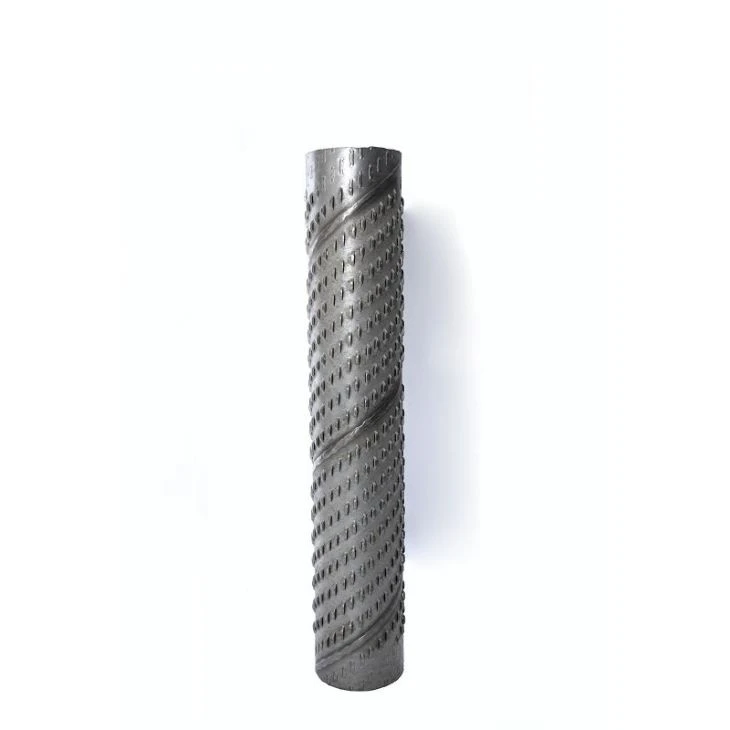

Bridge Slot Screen Pipe
The sand and gravel cannot easily block the slot because of the special bridge design. It has great mechanical strength and water entering capacity. Meanwhile, it use steel punching technology and rolled in many ways, so it is light, cheap and easily operating.
Features

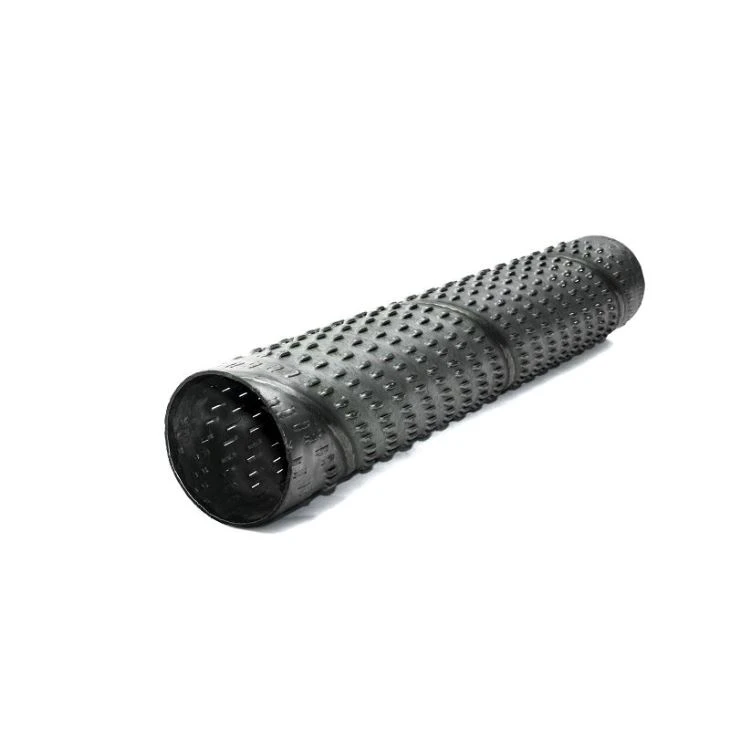

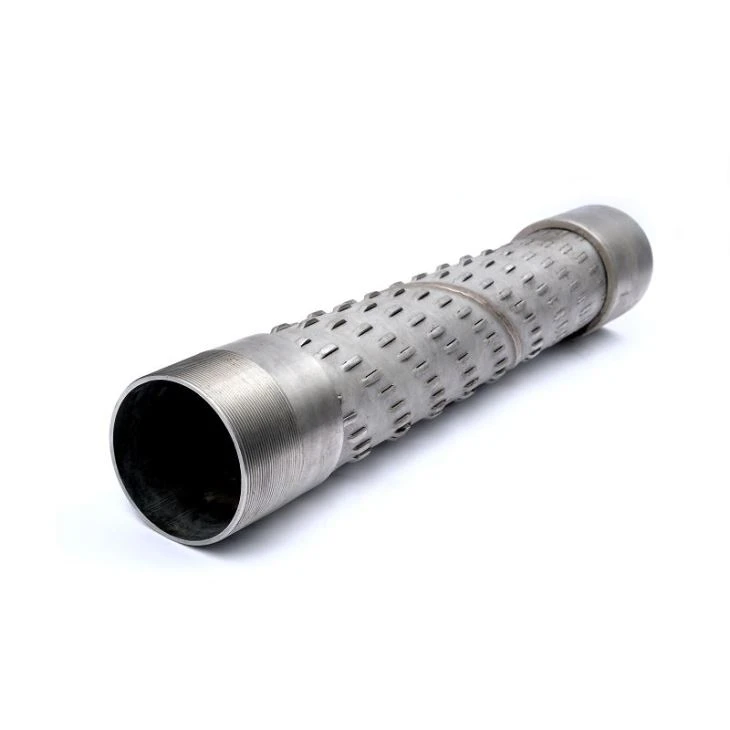

Bridge slot screen pipe, a type of well screen with vertical slots that are formed by protruding "bridges" that are pushed outward from the well casing.
The sand and gravel cannot easily block the slot because of the special bridge design. It has great mechanical strength and water entering capacity. Meanwhile, it use steel punching technology and rolled in many ways, so it is light, cheap and easily operating.
Stainless steel well screen pipes are used for oil and water exploiting.
Specifications of Bridge slot screen pipe
1. OD: 33-600mm
2. Minimum slot: 0.05mm
3. Unit length: 1-10m
4. Material: Low carbon steel, SS304 316
5. Slot Size: 3-8mm
6. Connection Type: Welded, Flange
Specification of Bridge slot screen pipe
Diameter | 146 | 159 | 219 | 273 | 325 | 377 | 426 | 529 | ||||||||||||
ID | 130 | 140 | 138 | 200 | 198 | 254 | 250 | 246 | 305 | 300 | 297 | 357 | 350 | 346 | 406 | 400 | 398 | 502 | 500 | 498 |
Thickness | 5 | 5 | 6 | 5 | 6 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 6 | 7 | 8 |
Coupling OD | 146 | 160 | 162 | 220 | 226 | 274 | 278 | 278 | 325 | 328 | 329 | 377 | 378 | 379 | 426 | 428 | 432 | 529 | 530 | 531 |
