Water Well Screen

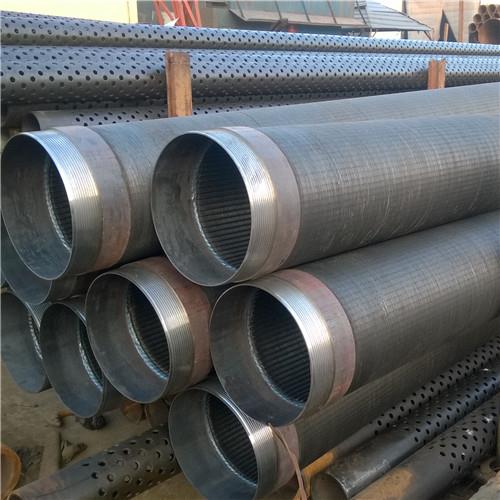

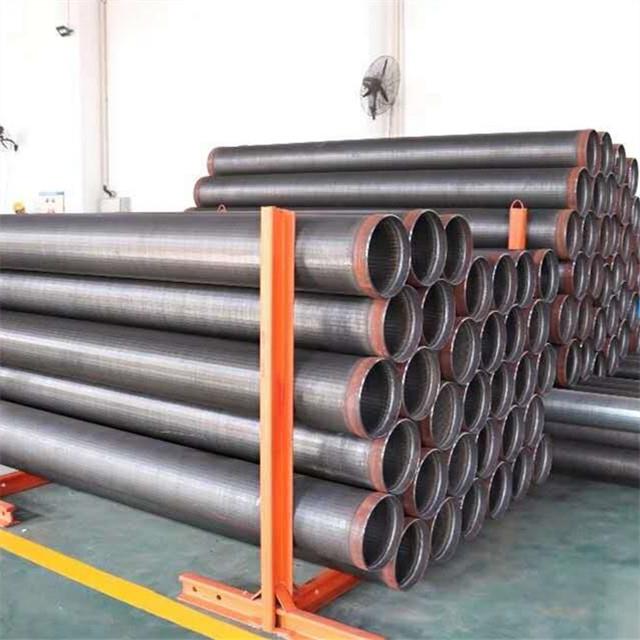

Water well screen is manufactured by a v or wedge
Shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded.
The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, While at the same time keeps the majority of sand and gravel out of the well.

Technical Specification of v wire water well screen
1. Slot size(mm): 0.1~3mm
2. Open area: up to 60%
3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with anticorrosion coating, stainless steel (304, 316L etc)
4. Unit Length up to 6 meters
5. Diameter: ranging from 25 to 1500mm

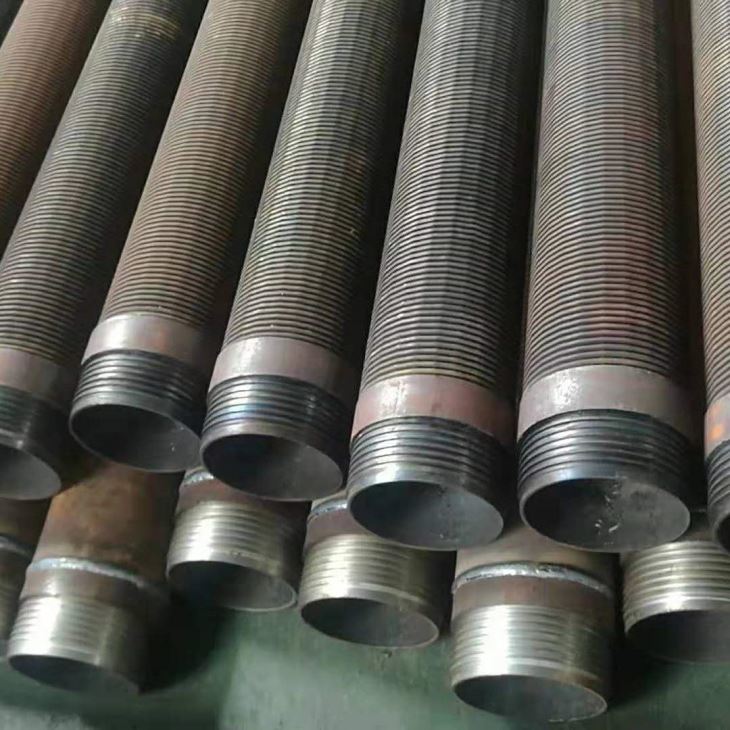

6. End connection: plain beveled ends for butt welding or threaded coupling or flange
