Pipe Based Well Screen

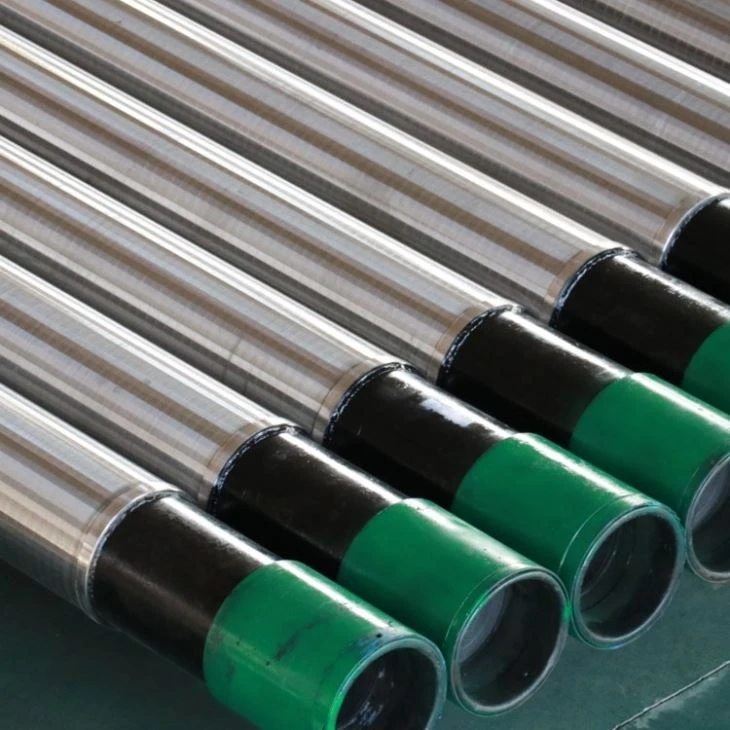

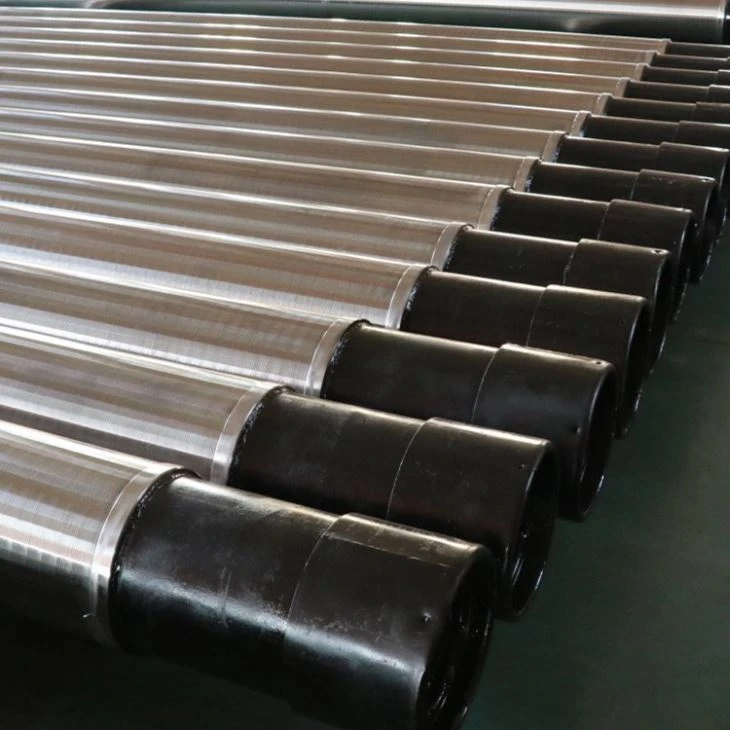

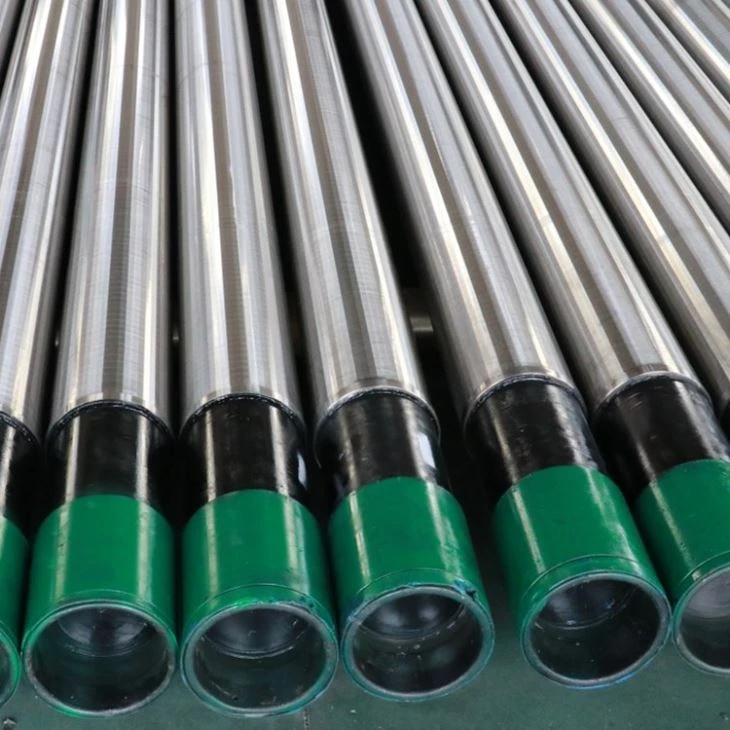

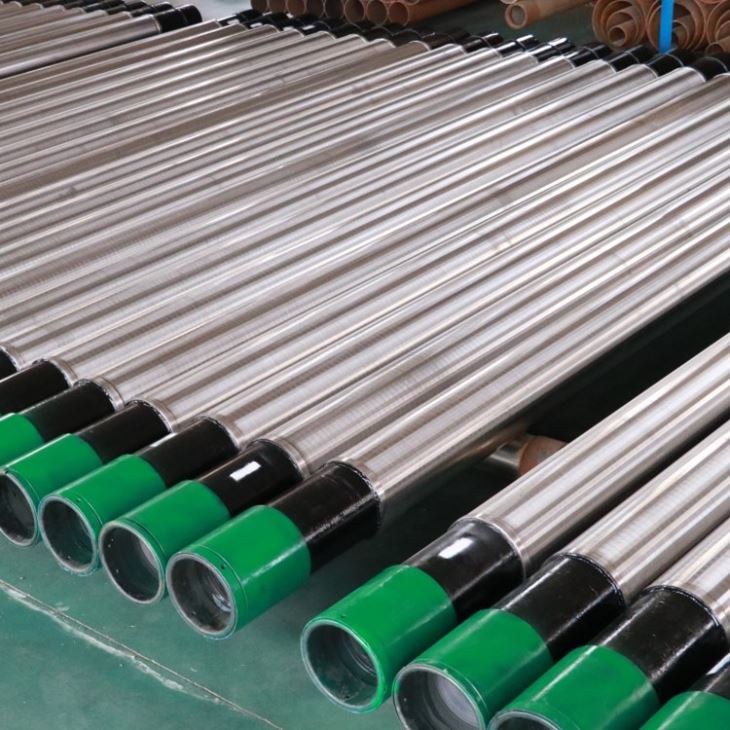

The pipe based well screen is composed by base tube, welded wire screen and back-up ring. The base tube is made by casing or tube drilling which meets the API standard. The welded wire screen is welded together with base tube by back-up ring.
Features
Introduction
The pipe based well screen is composed by base tube, welded wire screen and back-up ring. The base tube is made by casing or tube drilling which meets the API standard. The welded wire screen is welded together with base tube by back-up ring.
● Material: 304,304L, 316, 316L and other stainless steel wire; low carbon steel, low galvanized carbon steel, plastic spray, stainless steel;
● length: it can be made in 6m at most;
● Slot size: 0.10, 0.15, 0.2, 0.25, 0.30-3, we can also custom the products based on your requirements. The opening area can reach 60% at most.
● Base pipe:N/L 80 or J55 etc.
The external diameter is ranged from 25mm to 800mm.
