Wedge Wire Filters Nozzles

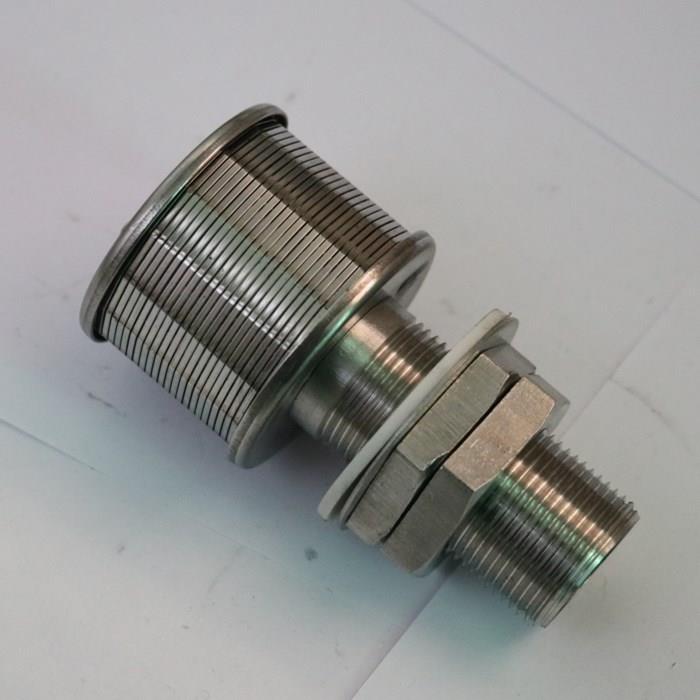

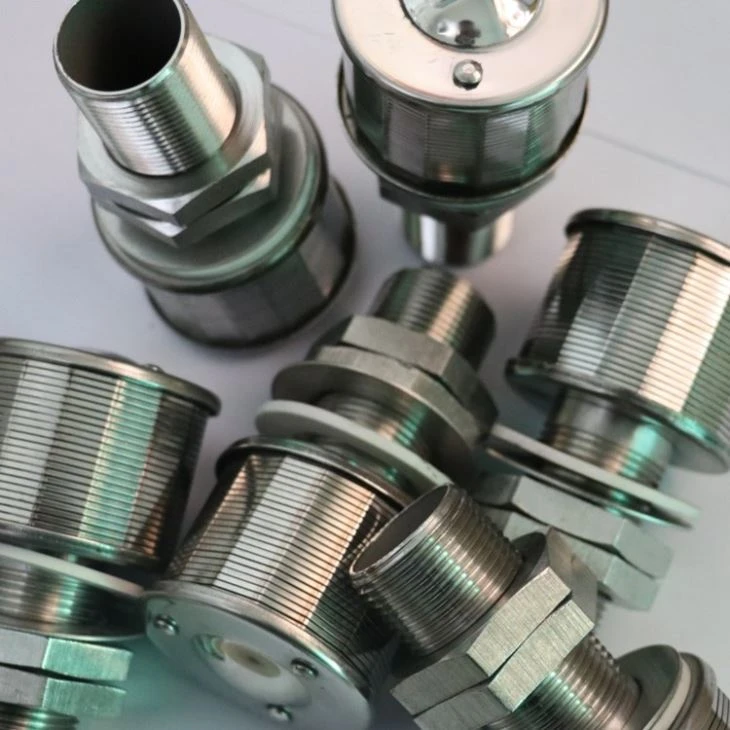

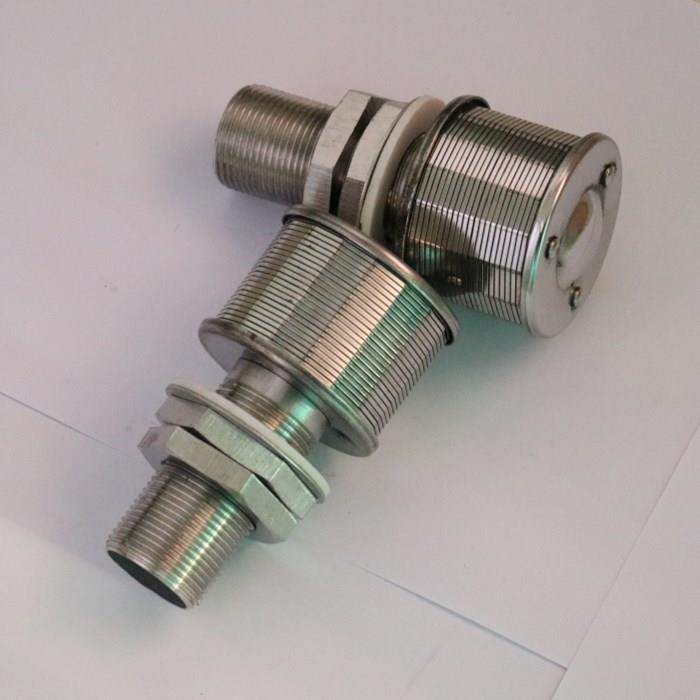

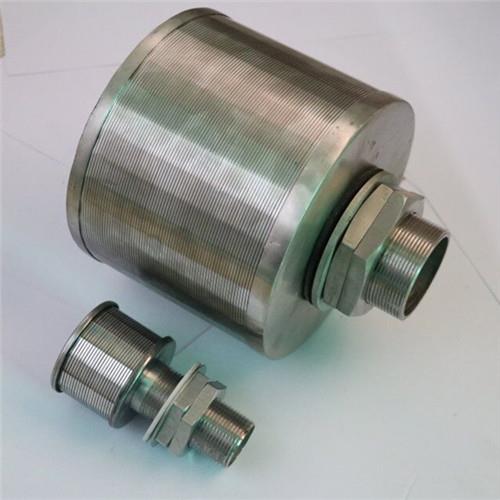

V-shaped wire around the plate water cap for chemical industry is made up of stainless steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.
Features
Specification
No. | Type | Ton | Slot | Size | 0.2-0.25mm slot opening Area of through-flow mm2(reference) | |||
D | L1 | L | M | |||||
1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 500 |
2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 570 |
3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 700 |
4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 600 |
5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 1000 |
V-shaped wire around the plate water cap for chemical industry is made up of stainless steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.
Advantage
Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required
Features
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of well.
