Stainless Steel Nozzles

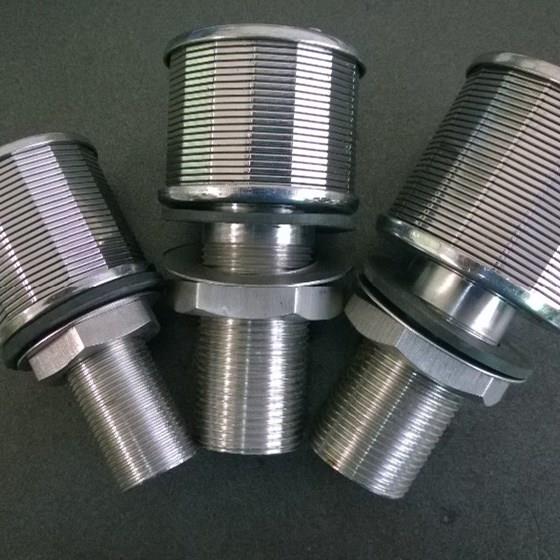

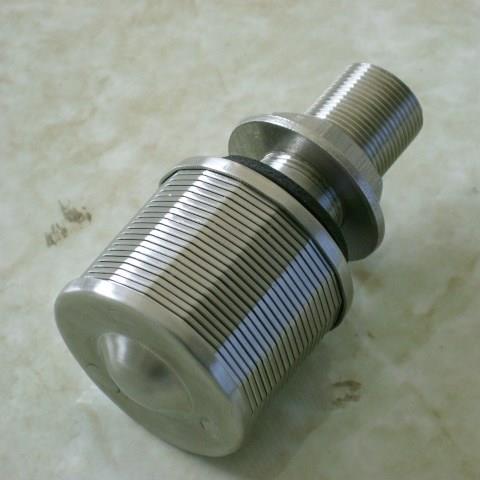

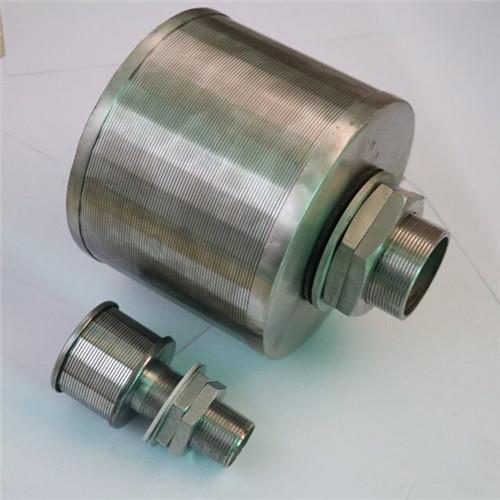

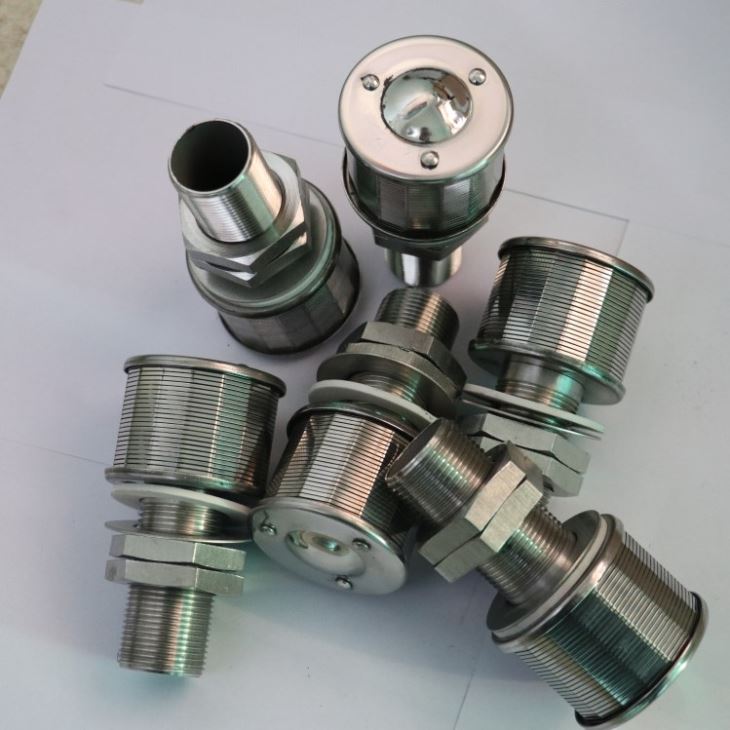

Introduction of the SS wedge wire screen water strainer filter nozzle for water treatment SS wedge wire screen water strainer filter nozzle for water treatment is an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens.
Features
Introduction of the SS wedge wire screen water strainer filter nozzle for water treatment
SS wedge wire screen water strainer filter nozzle for water treatment is an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require. HUADONG manufactures nozzles using a variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes Huadong nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.
V-shaped wire around the plate water cap for chemical industry is made up of stainless steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.
Advantage
1.Very good slot width precision
2.High mechanical load capacity
3.No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry.
4.Automated welding process for high-precision manufacturing
5.Perfectly adjusted screen basket profiles
6.Available for all screens
7.Surface finishing as required
Specification
Material | Stainless steel (304,316 etc.) |
Wedge Wire(mm) | Width: 0.75 1.50 1.80 2.30 3.00 3.30 3.70 |
Support Rod(mm) | Width: 1.00 1.80 2.00 3.00 4.00 5.00 |
Height: 2.00 2.50 3.00 5.00 6.00 8.00 | |
Width | Width up to 2.5 meters |
Length | Lengths up to 6 meters |
Slot size | 0.02, 0.05, 0.1, 0.15, 0.20, 0.25, 0.30,......,3.00 also achieved upon request. |
Note | Other specifications can be customized according to your requirement |
