OEM SS 304 316 Stainless Steel Johnson Screen Mesh/Wedge Wire Screen

OEM SS 304 316 Stainless Steel Johnson Screen Mesh/Wedge Wire Screen

Overview Specification Wedge wire screen for filter The mesh section is trapezoidal, the gap is narrow at the top and wide at the bottom. It is made of cold rolled stainless steel wire, and the screen bar and support bar are welded by automatic wedge mesh production equipment. The screen seam is...

Send Inquiry

Features

Overview


Specification
product-1-1

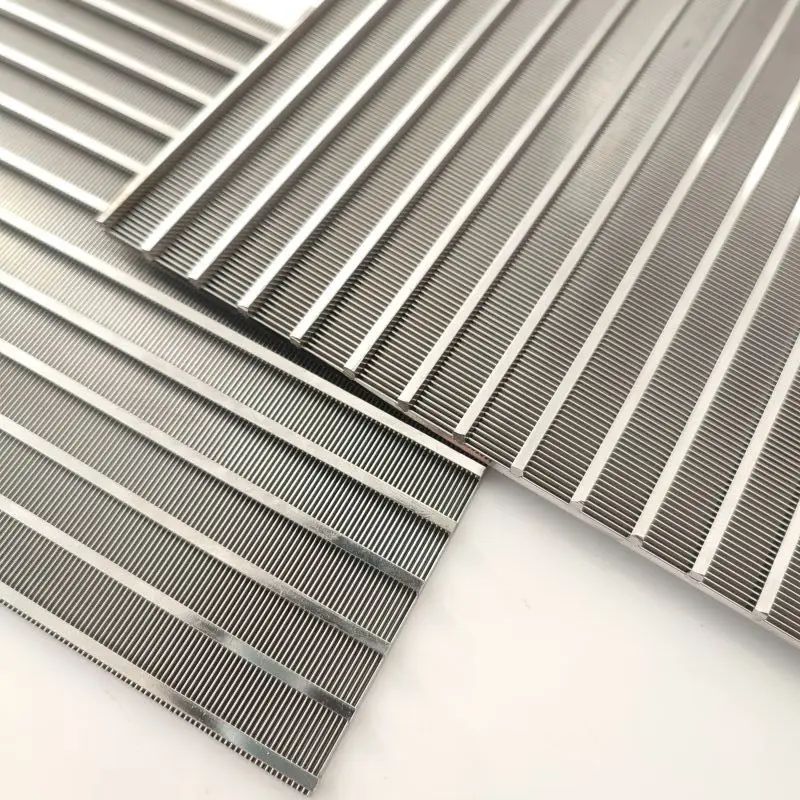

Wedge wire screen for filter
The mesh section is trapezoidal, the gap is narrow at the top and wide at the bottom. It is made of cold rolled stainless steel wire, and the screen bar and support bar are welded by automatic wedge mesh production equipment. The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, has the very high strength, the steel degree and the bearing capacity, can make the various shapes of the steel screening filter device.
product-1-1

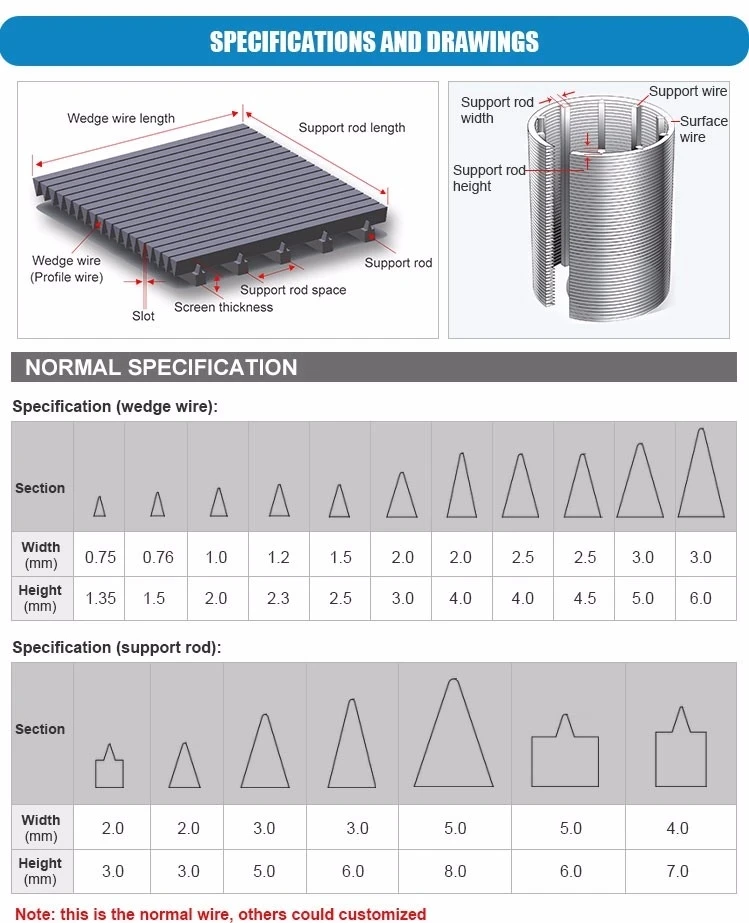

Material
304/316/201/205/904L/galvanized metal
Wire shape
V wire/ Round wire /Square wire
Size
Width and length up to 6m
Slot
Min is 20um Max is 50mm
Wire size
0.75✖1.5mm,1.5✖2.5mm 1✖2mm,2✖3mmm,3✖5mm 4✖7mm etc
Surface treatment
polishing
It can be more shape.
product-1-1

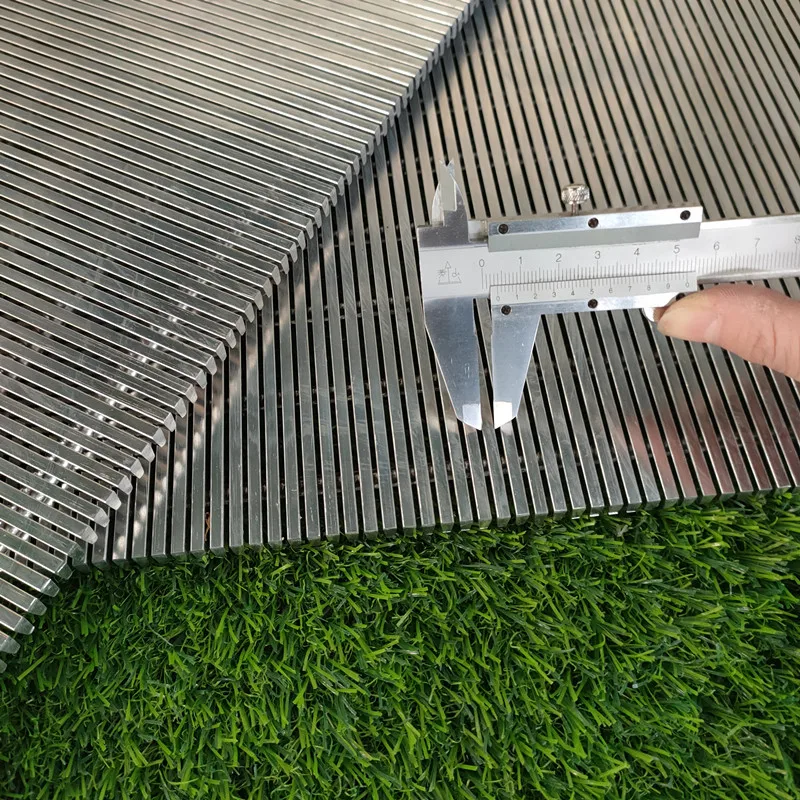

Chamfered wedge mesh screen
product-1-1

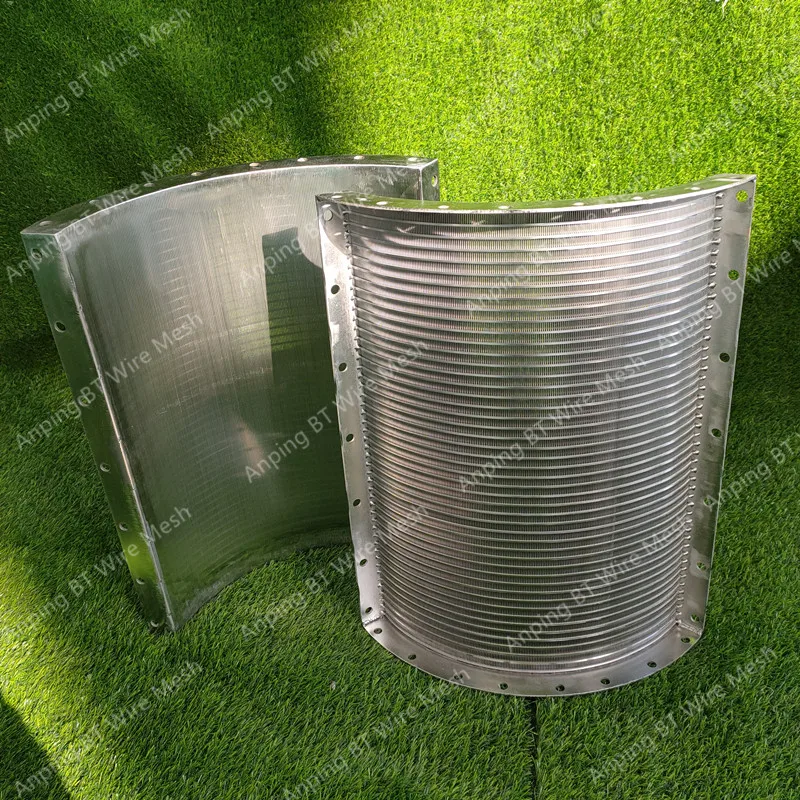

curved screen
product-1-1

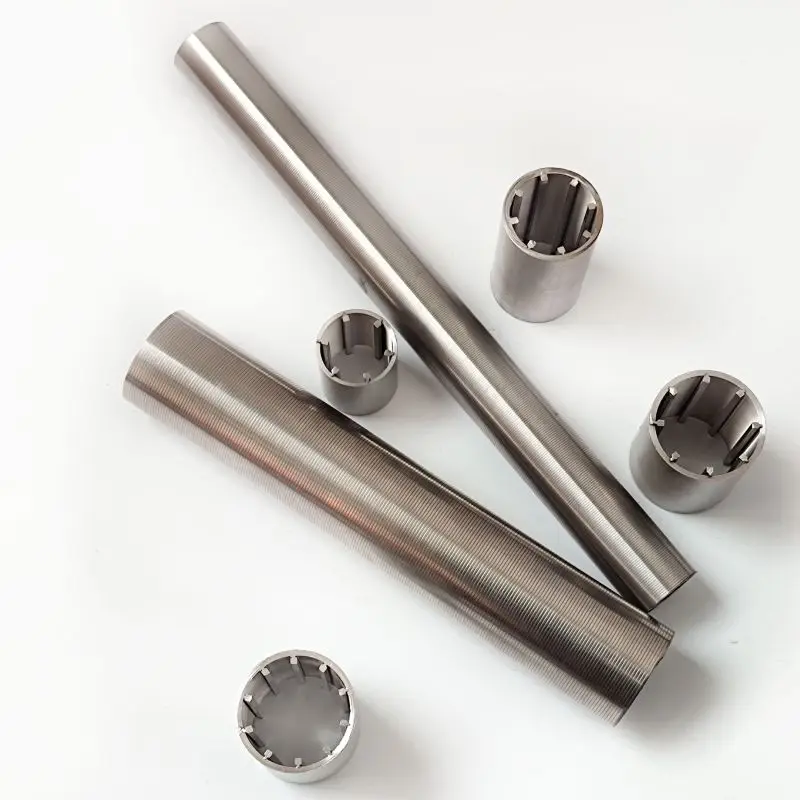

Johnson screen pipe
product-1-1

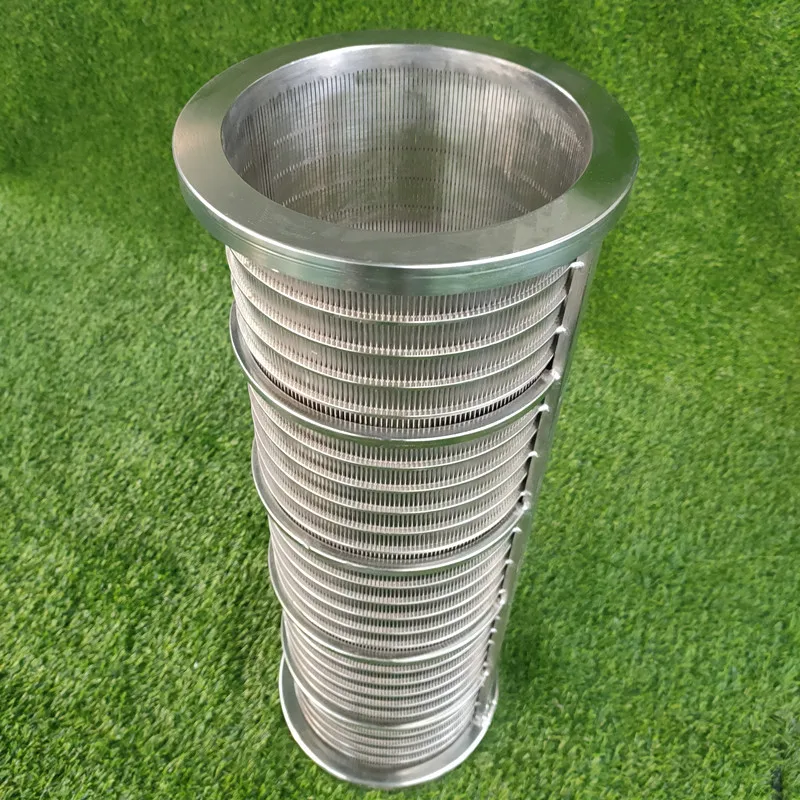

wedge wire cylinder
product-1-1

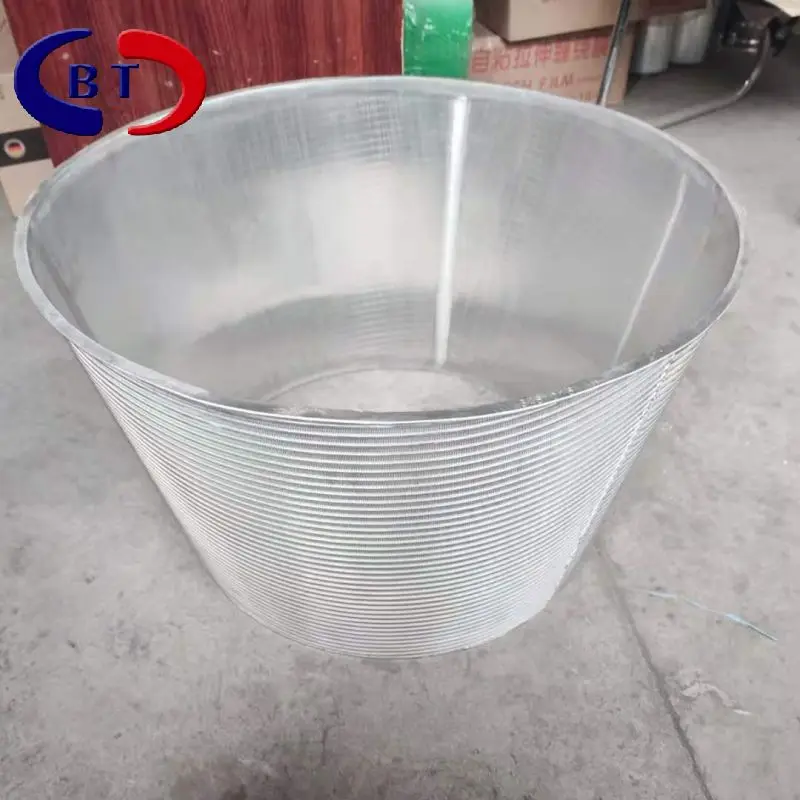

wedge wire conical filter basket
product-1-1

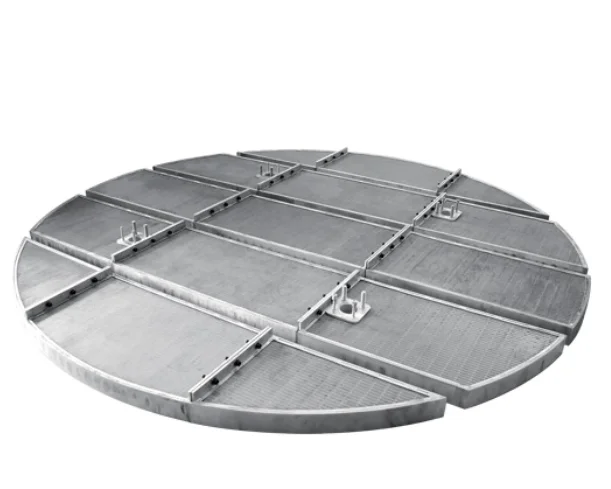

Reactor internals

Feature

1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

Application

Wedge wire screen is widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc.
Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification,
drilling liquid purification and other industries use.
product-1-1

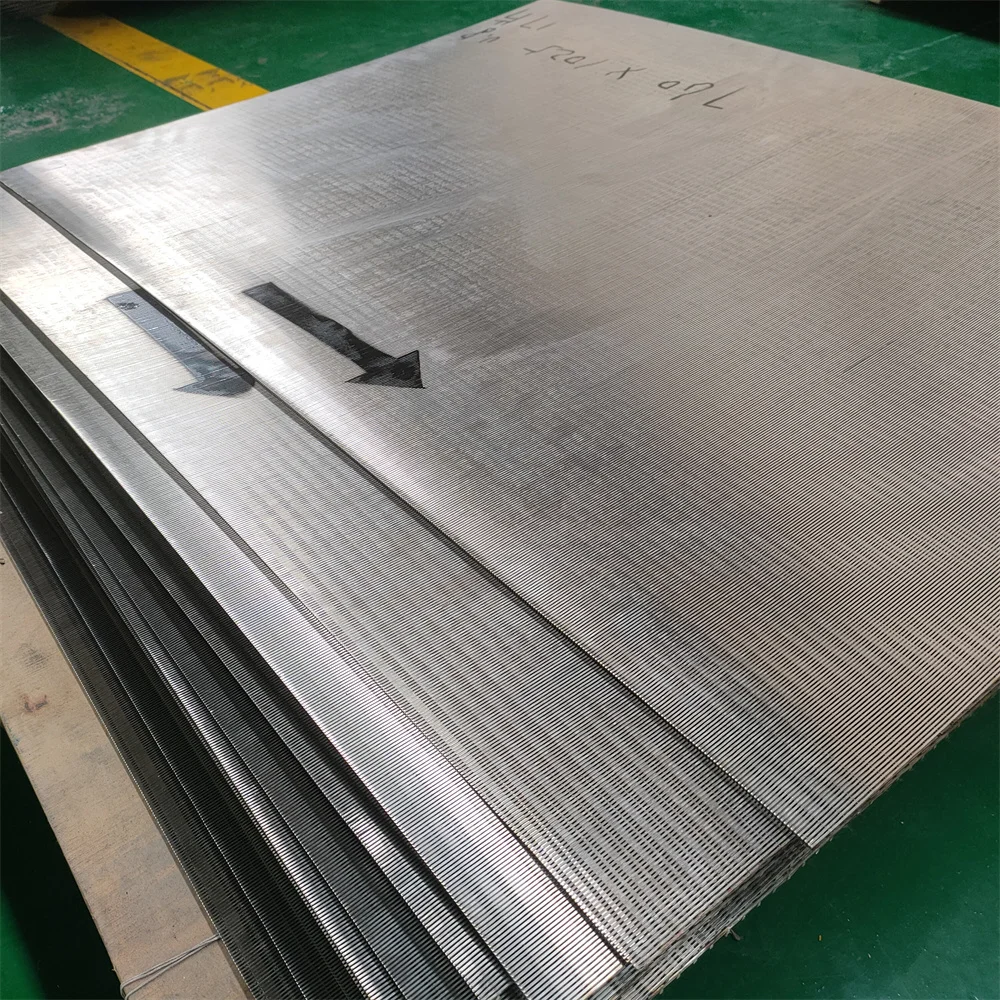

We will pack according to customer's requirements: 1. Use bubble film packaging to avoid collision and protect the surface coating. 2. Use sturdy wooden pallets and add corner guards on all sides to avoid damage during shipping. 3. Usually more sets are produced for each order, given for free and shipped together. Reduce the occurrence of damage
