Stainless Steel 304l Filter Strainer Wedge Wire Screen Nozzles

Stainless Steel 304l Filter Strainer Wedge Wire Screen Nozzles

Product Description Filter nozzles filter nozzles are an ideal choice based on their combination of high strength, high open area and non-plugging slot design. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different...

Send Inquiry

Features

Product Description
product-1-1

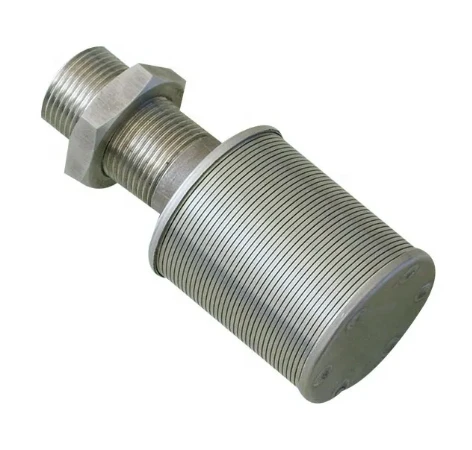

Filter nozzles
filter nozzles are an ideal choice based on their combination of high strength, high open area and non-plugging slot design. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different
class filtration. Continuous slot design make it high efficiency and long service life.
Material choice:SUS304, 304L, 321, 316L, 2205, 2507, 904L, Hastelloy,Titanium alloy and other special metal materials
Product Specification
product-1-1



Specification for single-ended wedge-shaped nozzles

project
Model
Slot(mm)
Dimensions (mm)
Filter area (mm2), slot 0.2 mm
Material
D
H
L
M
1
SLOT45-1-A
0.2-0.5
45
25
75
M20
280
304,321,316,316L,904L,C-276
2
SLOT45-1-B
0.2-0.5
45
35
85
M20
390
3
SLOT45-1-C
0.2-0.5
45
45
95
M24
500
4
SLOT53-2-A
0.2-0.5
53
45
95
M24
450
5
SLOT53-2-B
0.2-0.5
53
45
95
M32
450
6
SLOT53-2-C
0.2-0.5
53
55
110
M32
550
7
SLOT57-3-A
0.2-0.5
57
35
85
M32
520
8
SLOT57-3-B
0.2-0.5
57
45
95
M32
660
9
SLOT57-3-C
0.2-0.5
57
55
110
M32
530
10
SLOT70-4-A
0.2-0.5
70
45
95
M32
530
11
SLOT70-4-B
0.2-0.5
70
70
120
M32
1000
12
SLOT82-A
0.2-0.5
82
60
120
G11/M42
/
Note:
1. Water wedge line nozzles are equipped with rubber washers, steel washers and stainless steel nuts of the same material.
2. Specifications not listed in the chart are processed and produced according to user requirements.
3. M, NPT, G, PT, Z, threads are available.
product-1-1
Specification for double ended wedge line nozzles
project
Model
Slot(mm)
Dimensions (mm)
Filter area (mm2), slot 0.2 mm
Material
D
H
L
M
1
SLOT45-5-A
0.2-0.5
45
35
According to the command
M25
330
304,321,316,316L,904L,C-276
2
SLOT45-5-B
0.2-0.5
45
45
M25
400
3
SLOT53-6-A
0.2-0.5
53
35
M25
400
4
SLOT53-6-B
0.2-0.5
53
45
M32
680
5
SLOT57-7-A
0.2-0.5
57
40
M32
530
6
SLOT57-7-B
0.2-0.5
57
50
M32
700
Note:
1. L is determined by the thickness of the perforated plate and
the lining glue provided by the user. 2. The water wedge line nozzle is equipped with a rubber washer, a steel washer and a stainless steel nut of the same material.
3. Specifications not listed in the chart are processed and produced according to user requirements.
4. M, NPT, G, PT, Z, threads are available.
product-1-1
Specification for Long Hand Wedge Line Nozzles
project
Model
Slot(mm)
Dimensions (mm)
Filter area (mm2), slot 0.2 mm
Material
D
H
L
M
L1
1
SLOTLN45-11-A
0.2-0.5
45
35
35
M20
According to the command
330
304,321,316,316L,904L,C-276
2
SLOTLN45-11-B
0.2-0.5
45
45
40
M24
400
3
SLOTLN53-12-A
0.2-0.5
53
35
45
M24
510
4
SLOTLN53-12-B
0.2-0.5
53
45
50
M32
640
5
SLOTLN57-13-A
0.2-0.5
57
40
45
M32
630
6
SLOTLN57-13-B
0.2-0.5
57
50
50
M32
780
Note:
1. L is determined by the thickness of the perforated plate and
the lining glue provided by the user.
2. The water wedge line nozzle is equipped with a rubber washer, a steel washer and a stainless steel nut of the same material.
3. Specifications not listed in the chart are processed and produced according to user requirements.
4. M, NPT, G, PT, Z, threads are available.
product-1-1
Specification for plate flow wedge line nozzles
project
Model
Slot(mm)
Dimensions (mm)
Filter area (mm2), slot 0.2 mm
Material
D
L1
D1
L
1
SLOTPN82-18-A
0.25/0.4
82
50
50
130
1300
304,321,316,316L,904L,C-276
2
SLOTPN82-18-B
0.25/1.0
82
50
50
130
1300
Details Images
product-1-1
Advantages：
1. It features a continuous uniform trough design that prevents loss of ion exchange resins, activated carbon media, filter media, green media, sand and other media. This safety precaution does not reduce flow.
2. This is critical not only to prevent the loss of expensive materials, but also to avoid damage to downstream equipment.
3. The average filtration accuracy is 5-80 ¼ m, with high filtration efficiency and large flow rate
4. The durable structure provides a long service life and requires less frequent replacement than plastic water filters.
5. High opening rate , can be produced according to customer needs
6. Diversified structures to meet different design requirements

Application
Applications of wedge wire nozzle
Nozzles are used for liquid/solid or gas/solid separations. We can manufacture them in a variety of materials and sizes to suit your application.
* Collectors and distributors are evenly mounted on plates or headers in a lateral arrangement
* Demineralizers, water softeners and pressure and gravity sand filters
* Wedge-shaped water filters are widely used in water treatment equipment in power plants, petroleum, chemical, food and other industries.
