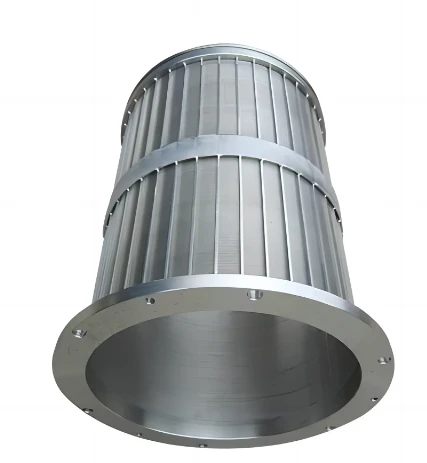

High Quality 304 306L Stainless Steel Filter Wire Mesh Wedge Wire Slotted Basket Screen

High Quality 304 306L Stainless Steel Filter Wire Mesh Wedge Wire Slotted Basket Screen

Product Description Wedge wire screen includes Johnson screen, flat screen. It is made of fine stainless steel wire wound by v-t welding. Usuallyused for water treatment, chemical oil treatment, kitchen waste treatment, petroleum refining,chemical liquid treatment. Wedge wire screen is composed...

Send Inquiry

Features

Product Description
Wedge wire screen includes Johnson screen, flat screen. It is made of fine stainless steel wire wound by v-t welding. Usuallyused for water treatment, chemical oil treatment, kitchen waste treatment, petroleum refining,chemical liquid treatment.

Wedge wire screen is composed of V wire (sieve wire) and support rod. The support rod is generally T wire, can also be triangular wire; The silk; Round wire.
Specification
Surface Finish Specifications
Name
Breadth
Altitude
α°
Cross-sectional area -Q
Resistance moment -W
Resistance moment -W

mm
mm

mm2
mm3
mm4
0.8
0.8(round)
-
-
0.5
0.05
0.02
⊘1
1 (round)
-
-
0.785
0.098
0.049
⊘2
2(round)
-
-
3.14
0.785
0.785
4S
0.45
1.2
6
0.4003
0.0848
0.0442
5S
0.5
1.25
6
0.4760
0.1026
0.0566
6SC
0.6
1.2
13
0.5
0.071
0.051
10S
0.75
1.425
10
0.728
0.13
0.109
11S
0.75
1.8
8
0.912
0.208
0.22
12S
1
2
10
1.32
0.327
0.388
12SL
1
2
-
1.104
0.204
0.204
15S
1.2
2.5
10
1.97
0.605
0.899
Support Wire Specifications
Name
Breadth
Altitude
Cross-sectional area -Q
Resistance moment -W
Bending moment - |

mm
mm
mm2
mm3
mm4
Q22
2
2.28
3.273
1.005
0.892
Q25
2
3
4.61
2.019
2.39
Q35
3
5
11.75
8.52
17.032
Q53
5
3
8.084
4.039
3.787
D 45
3.8
5.6
13.803
9.67
22.512
D 56
5
6.5
22.14
17.678
50.031
10x3
3
10
26.125
40.329
177.916
11x5
5
11
42.92
62.96
299.7
12x3
3
12
32.02
48.848
322.14
15x3
3
15
41.13
81.96
664.6
25x3
3
25
71.125
283.52
664.6

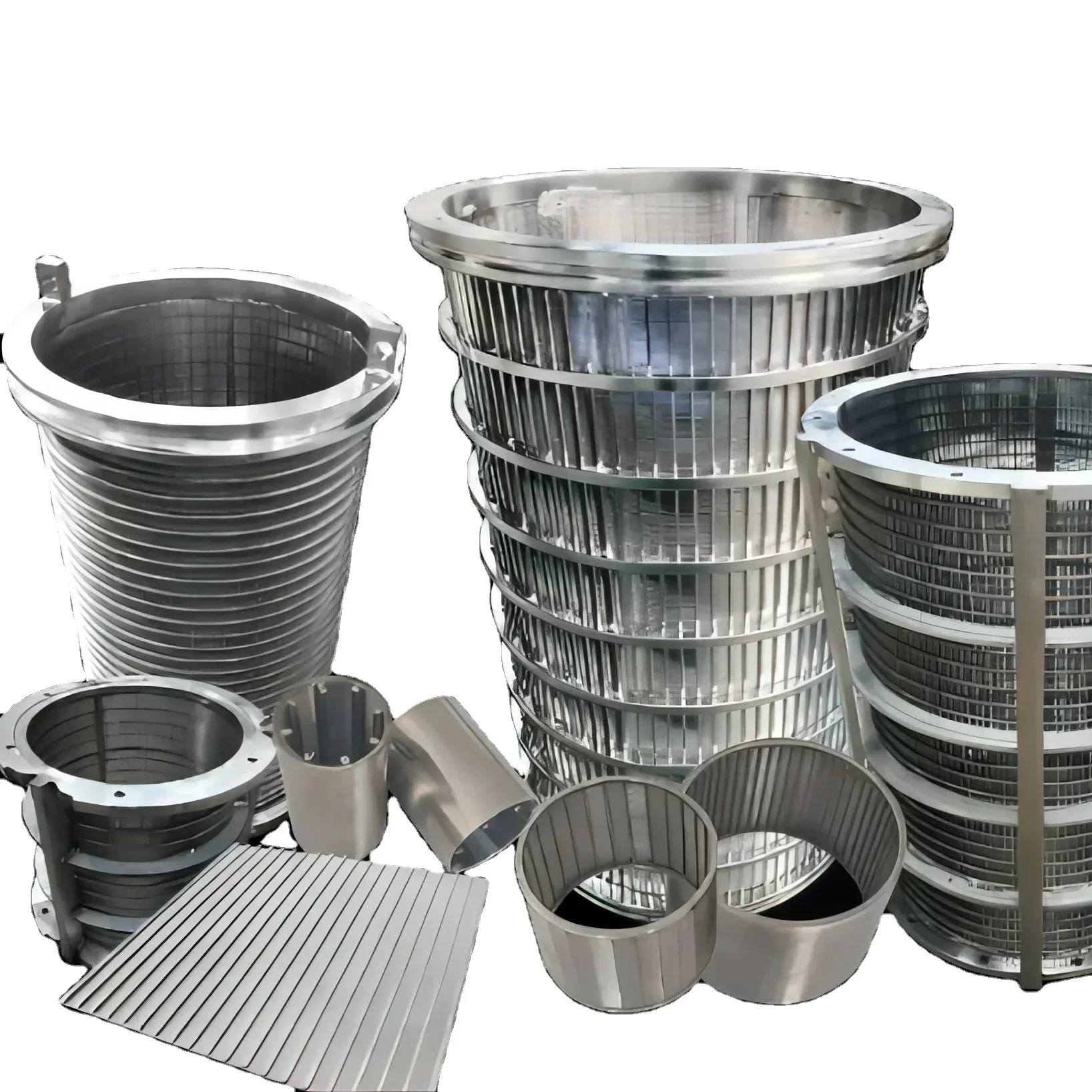

Product Details
product-1-1
Application
product-1-1
Application
Be suitable for all kinds pressure screen in pulp making system and paper making system.

Features

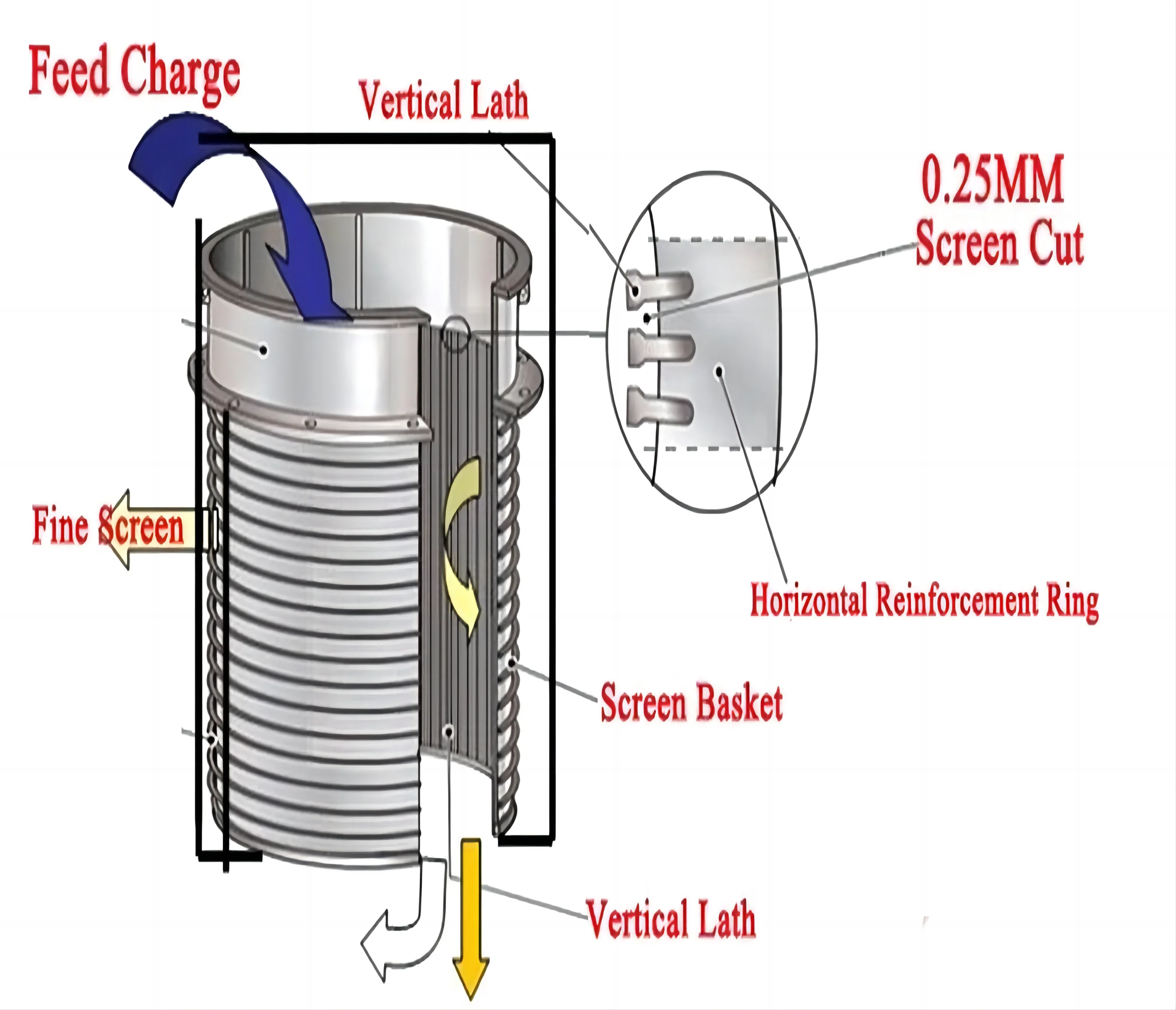

1. High screening efficiency: due to the high pressure of materials along the tangent line into the screen, under the action of
centrifugal force, qualified materials quickly pass through the screen drum depending on the pressure difference.
2. Long service life: stainless steel screen drum, corrosion resistance, wear resistance, has a longer service life.
3. Not easy to block: materials are evenly screened from top to bottom, and V-shaped opening gap ensures the opening area and non
blocking of screen drum, and avoids high-density accumulation of sediment.
4. Low maintenance cost.
Advantages
1.No blocking
V-shaped screen to form a wedge gap to ensure that it is not blocked;

2.Large opening area
Its various specifications of V-shaped wire diameter for choice, high water flow efficiency;

3.Easy to clean
The surface can be used to remove debris by backblowing methods such as scraper or steel brush;

4.Small pressure loss
High mechanical properties, anti-wear;

5.High precision screen seam
Automatic welding ensures the uniform precision of the screen joint;

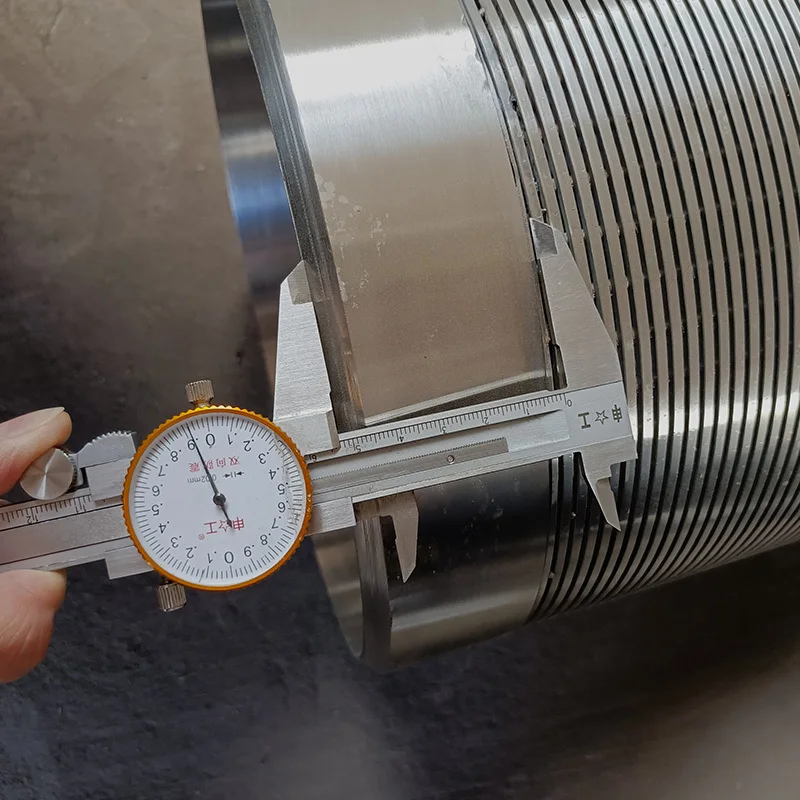

product-1-1
product-1-1
