Johnson Stainless Steel Wedge Wire Mesh Johnson filter screen





Description

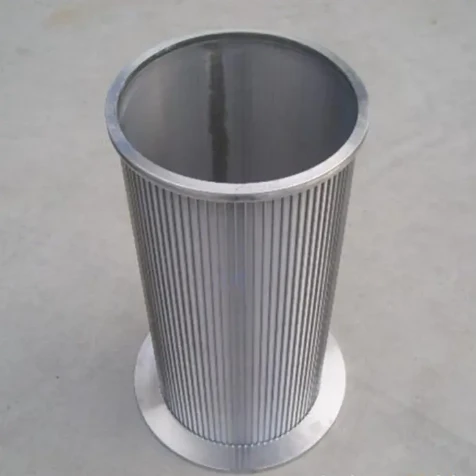

Wedge wire screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.Wedge wire screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. offering great strenght. precision ,long service life.

Material

1. stainless steel 304/304L/316/316L

2. low carbon iron wire

3. hot galvanized wire and Al-alloy wire

4. monel wire, inconel wire

5.other materials available upon request

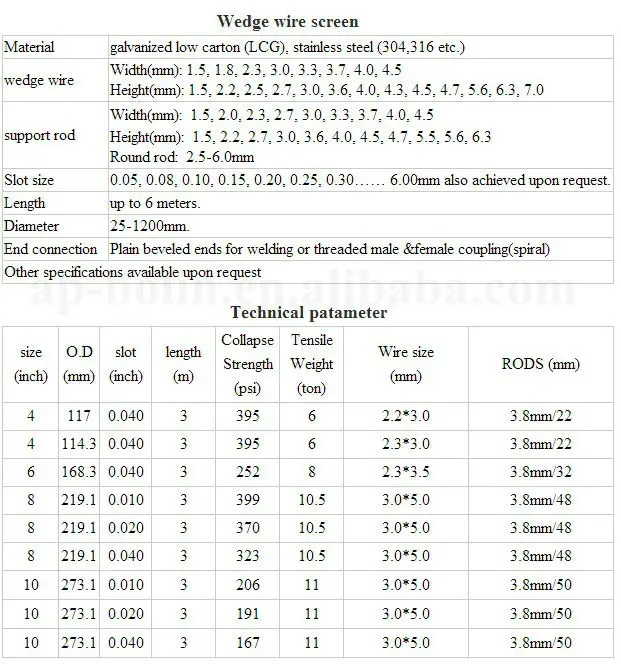

Specification





The Welding Types: argon arc welding

The Support Rod : Long Wedge Wire "V" shape wire .Convex shape wire



Characteristics

Wedge wire mesh is made of SS "V"shaped and SS "V"shaped, SS "V"shaped and SS rod ,or SS "V"shaped and SS "CONVEX "shaped rod with an unique welding process, with unique characteristics:



1.Precise openings

2.Drain quickly,high filteration

3.Perfectly flat and smooth surface

4.Maximum design flexibility

5.Stronger and more durable, economical

6.Easier installation and long using time,etc.

Application

Wedge wire screen is widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc. Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, purification, drilling liquid purification and other industries use.

Features

1. It has high mechanical strength, can bear large pressure drop.

2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

3. The wedge type slot can improve backflushing and regeneration performance.

4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Services

1. Various samples can be provide.

2. The FOB,CIF, CFR price are all available.

3. If there are unqualified products, support for replacement.

4. The package detail, mesh size can be customized.





















Packaging

1.Single with bubble bags and then in wooden case

2.Customized package is available
