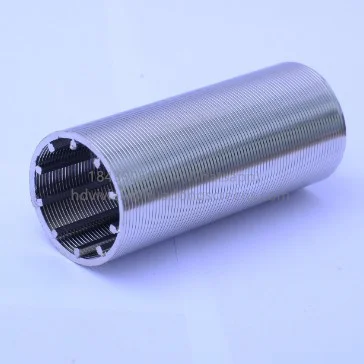

25 Micron Slotted Stainless Steel Wedge Wire Mesh Johnson Filter Screen Solvent Lean Filter Element

Essential details

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Showroom Location:

None

Video outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty of core components:

3 months

Core Components:

Pump, screen, filter pipe

Condition:

New

Place of Origin:

Henan, China

Brand Name:

HUADONG

Voltage:

custom-made

Power:

custom-made

Dimension(L*W*H):

custom-made

Weight:

20 kg

Warranty:

Unavailable

OD:

25-3000mm

Material:

Stainless Steel 304/316 or Carbon steel

Unit length:

0-6 meters/piece or custom-made

Slot:

≥25 micron

Connection type:

Threaded, Flange, Welded connection or custom-made

Others:

Custom-made

Packaging & delivery

Selling Units:

Single item

Single package size:

580X21.9X21.9 cm

Single gross weight:

50.000 kg

Package Type:

Single with bubble bag and then in wooden case. or as the customer's require. wooden box or customized

Picture Example:





Lead time:

Quantity(meters)	1 - 100	>100
Lead time (days)	7	To be negotiated







Material:

1.Stainless steel: 304/304L/316/316L

2.Low carbon iron wire

3.Hot galvanized wire and Al-alloy wire

4.Monel wire, inconel wire

5.Other materials available upon request



Application:

Wedge wire mesh is made of SS "V" shaped and SS "V" shaped, SS "V" shaped and SS rod, or SS "V" and SS "CONVEX" shaped rod with an unique welding process, with unique characteristics.



Size:

Min slot:≥ 0.02mm

Max length:≤ 6 meters

Surface profile size: 0.75*1.35mm, 0.76*1.5mm, 1*2mm, 1.2*2.3mm, 1.5*2.5mm, 2*3mm, 2*4mm, 2.5*4mm, 2*5mm, 3*5mm,3*6mm...

Supporting profile size: 2*3mm,(Trapezoid), 3*5mm, 3*6mm, 5*8mm, 5*6mm,(Trapezoid), 4*7mm,(Trapezoid)...

OD	≥25mm
Slot	≥20 micron（0.02mm）
Opening area	Custom, up to 60%
Direction of filtration	From the inside out, or from the outside in
Connection type	Flat end welded, threaded, flanged or custom
COthers	Can be enhanced

Huadong Screen Co.,LTD

Huadong Screen Co.,LTD is a manufacturer and exporter of Johnson screen and Water well screen in China. We offer a wide variety well screens, suce as water well screen, bridge slot screen, Johnson well screen, wedge wire well screen, etc. We have been in line of water well screen for nearty 20 years.
