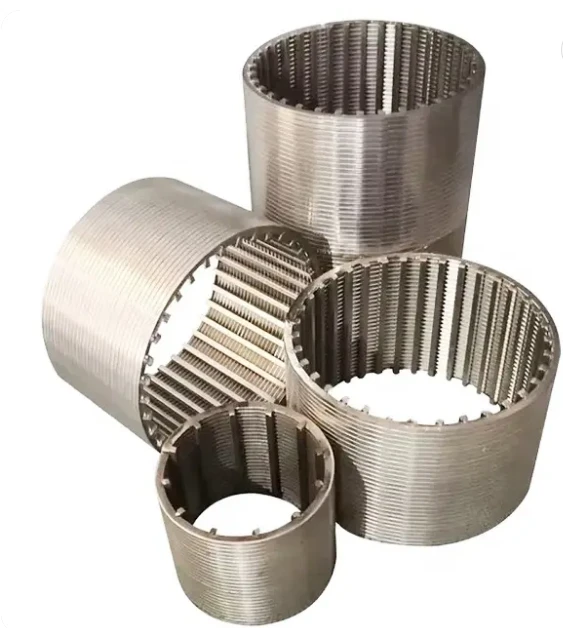

Non Magnetic Wedge Wire 0.25mm Slot Sand Control Screens Stainless Steel For Water Well Filter

Non Magnetic Wedge Wire 0.25mm Slot Sand Control Screens Stainless Steel For Water Well Filter

Product Description Wedge wire is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. Products Show Our...

Send Inquiry

Features

Product Description
product-1-1
product-1-1
Wedge wire is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded.

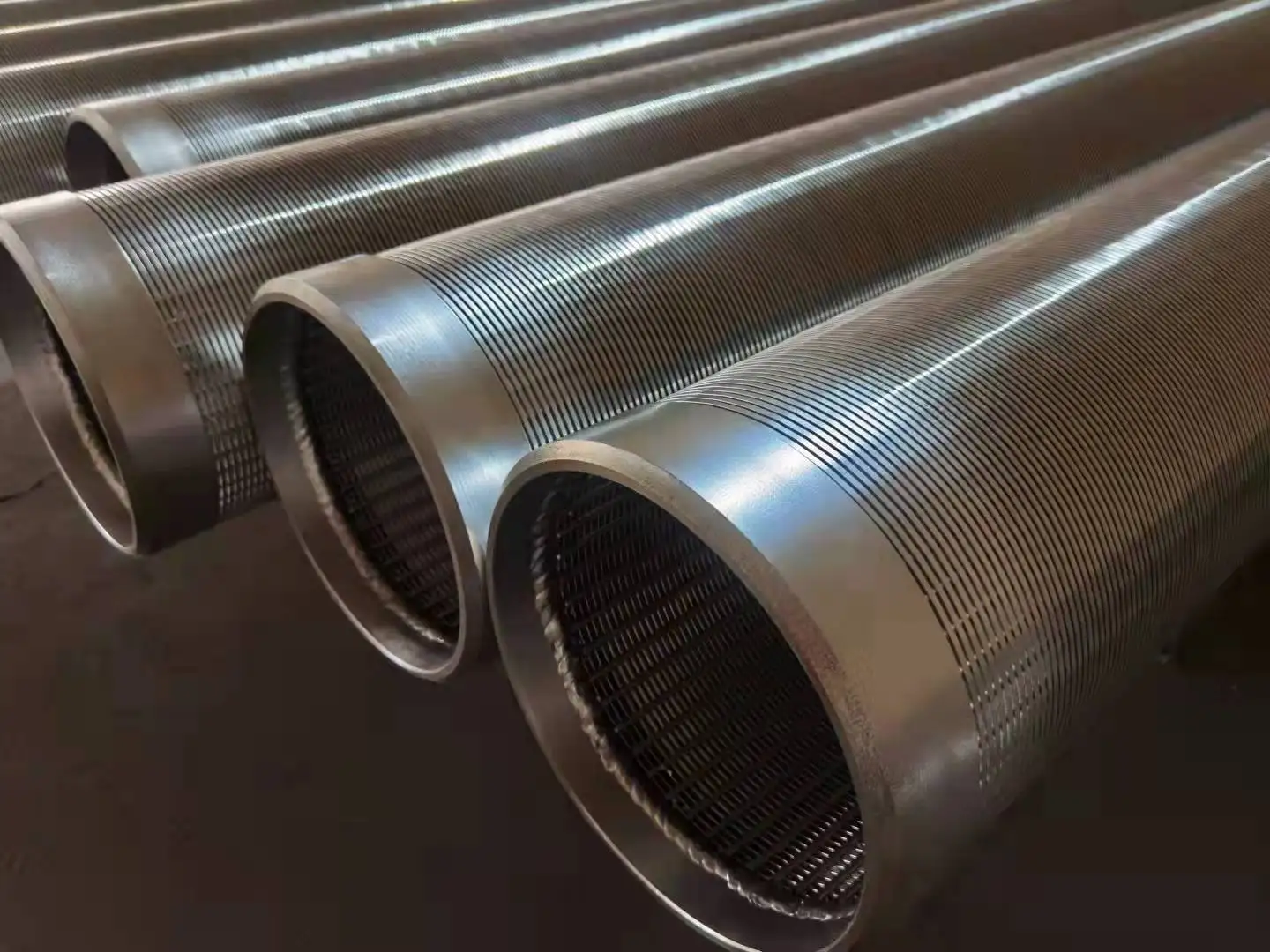

Products Show
product-1-1


Our advantage
1.Smooth surface, low hydraulic resistance, high filtration accuracy, never clogging;
2.High mechanical strength, high corrosion resistance, acid-resistant, heat-resistant;
3.Guaranteed size of the slot tight tolerance to ±0.015mm;
4.Filtration direction can be outside to inside or inside to outside;
5.High capacity filter surface, effective backwashing, and long trouble-free life.
Specification
Material
Stainless steel 304L,316



Slot size(Opening)
0.5mm, 0.75mm, 1mm or customer's requirement
Support rod pitch
1.5-3cm or customer's requirement
Profile wire size
2.2mm*3.5mm, 3mm*4.6mm, 3mmx6mm
Support bar size
3mm, 3.8mm, 4mm or other
Outside diameter
4'', 6'', 8'', 10'' 12'' 24'' or Customized
Length
2.9m, 5.8m etc



End finishing
Thread fitting, Flange, Closed Plated, Metal Ring, etc










Detailed Image
product-1-1
Slot gap:0.2mm
product-1-1
Slot gap:0.25mm
product-1-1
Slot gap:0.15mm
product-1-1
Slot gap:0.4mm
product-1-1
Slot gap:0.5mm.
product-1-1
Slot gap:0.75mm
product-1-1
Slot gap:3.54mm
product-1-1
Slot gap:4.8mm
product-1-1
Slot gap:4.95mm

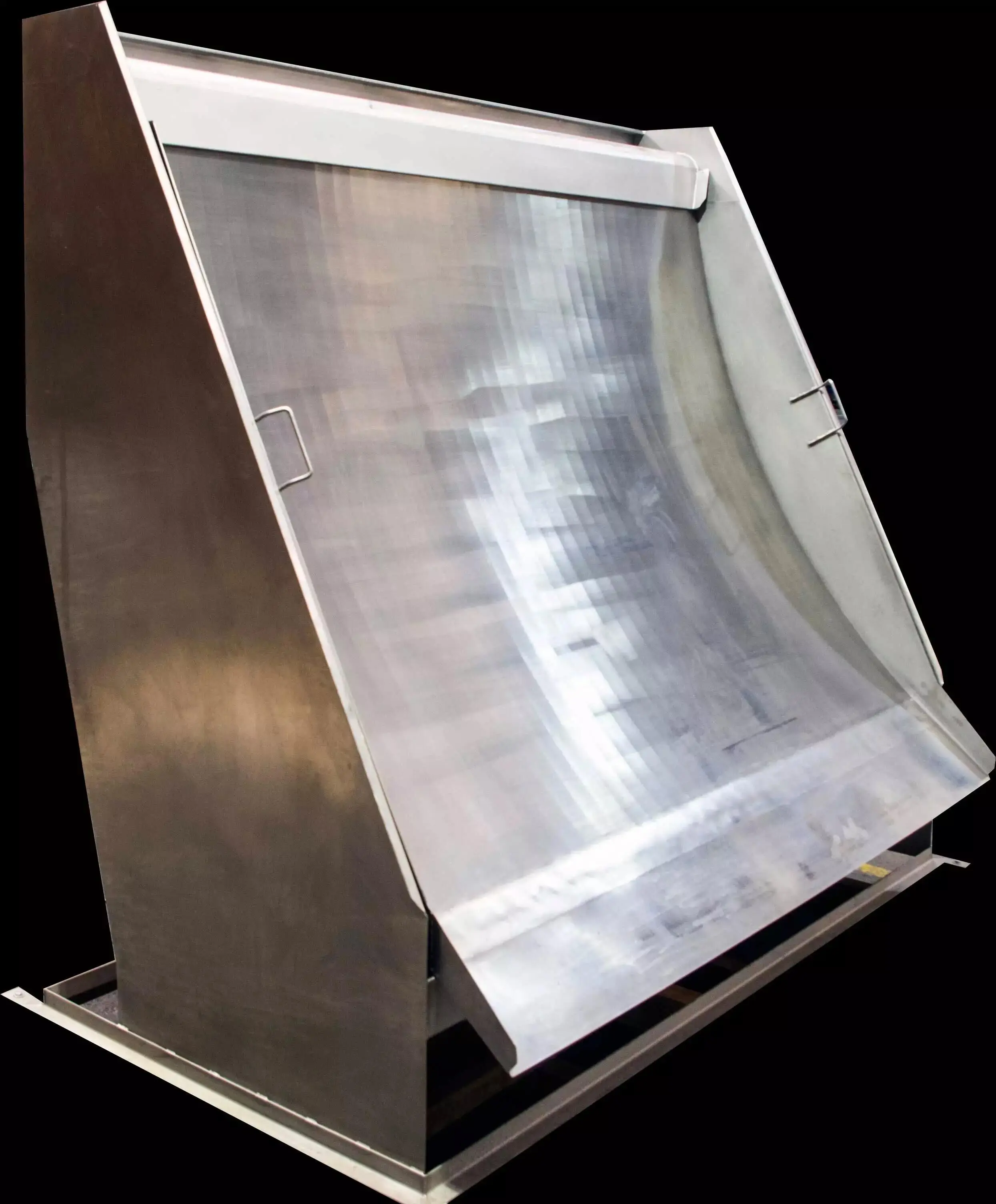

Application
product-1-1
product-1-1

wheat flour rotary vibrating screen false bottom for filtering beer drum filter for recirculating aquaculture
equipment system
