V wire wrapped strainer consist of V-shape profile wire and the longitudinal support rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
Features
| OD | from 30-1500mm /(114.3mm- 4 1/2”,168.3mm-6 5/8”, 219.1mm- 8 5/8”, 244.5mm- 9 5/8”, ) |
| slot | from 30-1500mm /(114.3mm- 4 1/2”,168.3mm-6 5/8”, 219.1mm- 8 5/8”, 244.5mm- 9 5/8”, ) |
| material | Galvanized carbon steel(LCG), stainless steel (304,304L,316,etc.) |
| length | 1- 6m, 5.8m fit for the container |
| Open area | up to 40% |
| End connection | welding (beveled end), thread coupling(STC,LTC,BTC), flange, |
| Surface | galvanized, painted, polish, packiled and passivation, etc. |
| advantage | wires, rods and slots sizes can be customized |

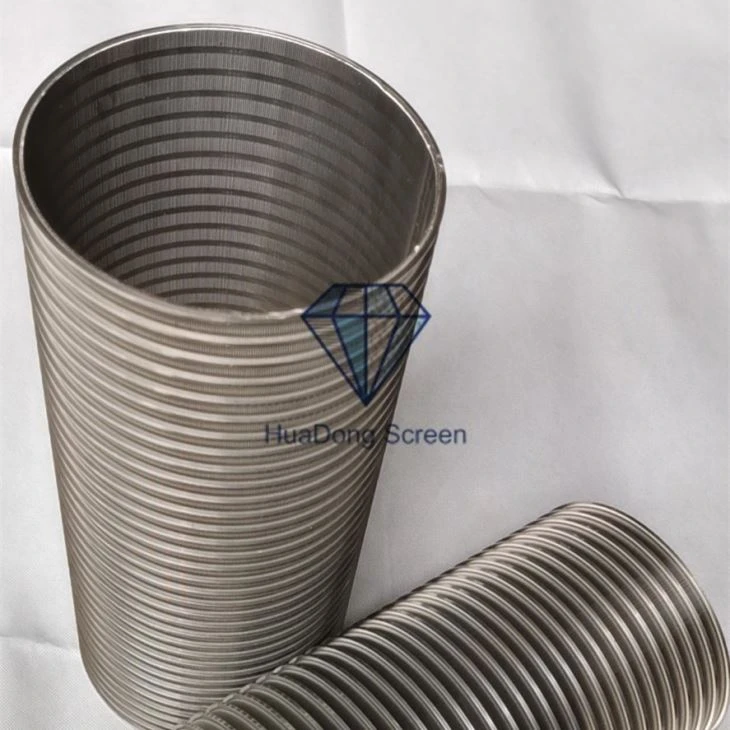

 Wedge wire water well screen Wedge wire Screen consist of wedge shape wire and the longitudinal support rods, manufactured by wedge or approximately triangular shape profile wire around an internal array of longitudinal rods and are joined by resistance welding, each intersection point of these wire is fusion welded to produces a rigid unit that has high strength and minimum weight. The continuous-slot wedge wire screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry. |
Description of application effect
 Our Service& stength Perfect testing equipment to make sure the quality of our products. Our products has passed the SGS testing and BV. The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative appointed by buyer. The screens will be arranged the Pre-shipment Inspection if required. |
Our packing
Single with bubble bag and then in wooden case(fumigation certificate).
Each case is clearly marked with:
Name & identification mark of manufacturer-HUADONG Brand
Material
Collapse pressure&Tensile strength
 Packing1 |  Packing2 |  Packing3 |
FAQ
1.What the diameter of well strainer do you need?Standard diameter:2inch 4inch 6inch 8inch 10inch 12inch ect,our factory can make the diamater of 25-610mm
2.Would you like to tell me the specification of V wire?Engineer recemand:1.5*2mm 2*3mm 2.2*3.5mm 3*5mm 3.2*6mm, It's up to you at last.
3.Pls tell me the slot size,the size usually is 0.1-15mm.
4.I hope you can tell me the depth of well and which aspect do you plan to be used in?
5.How many meters do you need?the more you want,the price will be cheaper.
Our engineer will recommend you the most suitable specification according our 20 years experience.
SIZE (inch) | O.D (mm) | SLOT (inch) | LENGTH (m) | Collapse Strength (psi) | Tensile Weight (ton) | Wire size (mm) | RODS (mm) |
4 | 114.3 | 0.040 | 3 | 897 | 6 | 2.2*3.5 | 2.2*3.5mm/24 |
4 | 114.3 | 0.040 | 3 | 897 | 6 | 2.2*3.5 | 2.2*3.5mm/22 |
4 | 114.3 | 0.020 | 3 | 1063 | 27 | 2.2*3.5 | 2.2*3.5mm/28 |
6 | 168.3 | 0.040 | 3 | 273 | 8 | 2.2*3.5 | 2.2*3.5mm/36 |
8 | 219.1 | 0.010 | 3 | 157 | 10.5 | 3.0*5.0 | 3.0*5.0mm/48 |
8 | 219.1 | 0.020 | 3 | 143 | 10.5 | 3.0*5.0 | 3.0*5.0mm/48 |
8 | 219.1 | 0.040 | 3 | 120 | 10.5 | 3.0*5.0 | 3.0*5.0mm/48 |
8 | 219.1 | 0.020 | 3 | 712 | 7 | 3.2*6.0 | 3.0*5.0mm/44 |
10 | 273.1 | 0.010 | 3 | 80 | 11 | 3.0*5.0 | 3.0*5.0mm/60 |
10 | 273.1 | 0.020 | 3 | 73 | 11 | 3.0*5.0 | 3.0*5.0mm/60 |
10 | 273.1 | 0.040 | 3 | 62 | 11 | 3.0*5.0 | 3.0*5.0mm/60 |
