Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.

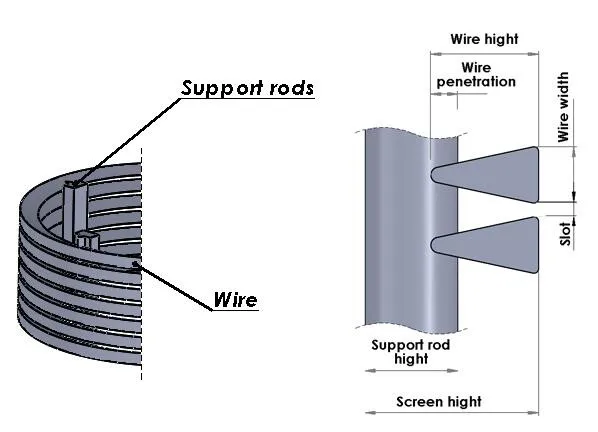

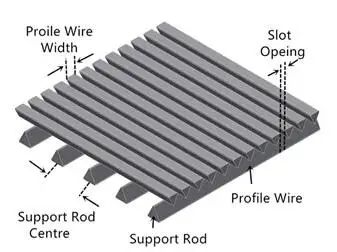

It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.
Products
8 Inch Stainless Steel 304 0.5mm 1mm Slot Johnson Wedge Wire Screen Pipe For Water Well Drilling
Product Description stainless steel johnson well wedge wire filter screen filter tube pipe manufacturer ss johnson Wedge Wire screen panel False Bottom For Brewery Mash Tuns Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media. It consists of surface...
Features
Product Description
stainless steel johnson well wedge wire filter screen filter tube pipe manufacturer
|
wedge wire filter screen sieve plate
|
|
|
material
|
SS304,SS316,SS316L
|
|
profile wire
|
1x2mm,2x3mm
|
|
support rod
|
2x3mm,3x4mm
|
|
slot opening
|
200micron,250micron,400micron,500micron,700micron,750micron,etc.
|
|
shape
|
plate,pipe,round screen
|
ss johnson Wedge Wire screen panel False Bottom For Brewery Mash Tuns
Feature
1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability
Detailed Images
If you need the quotation, please advise us:
1.Material: 304 or 316SS wedge wire?
2.Slot: 0.2mm-5mm, which one?
3.Profile wire size: 1x2mm, 2x3mm etc
4.Support bar size: 2x3mm, 3x4mm etc
5.For rotary screen drum, please advise us the outside diameter and length; for screen, please advise us the width and length.
6.If you have drawings, please send us.
round wedge screen
Johnson pipe screen

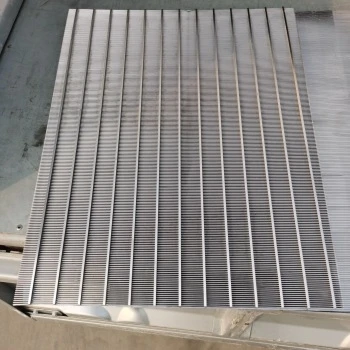

wedge wire screen panel sheet

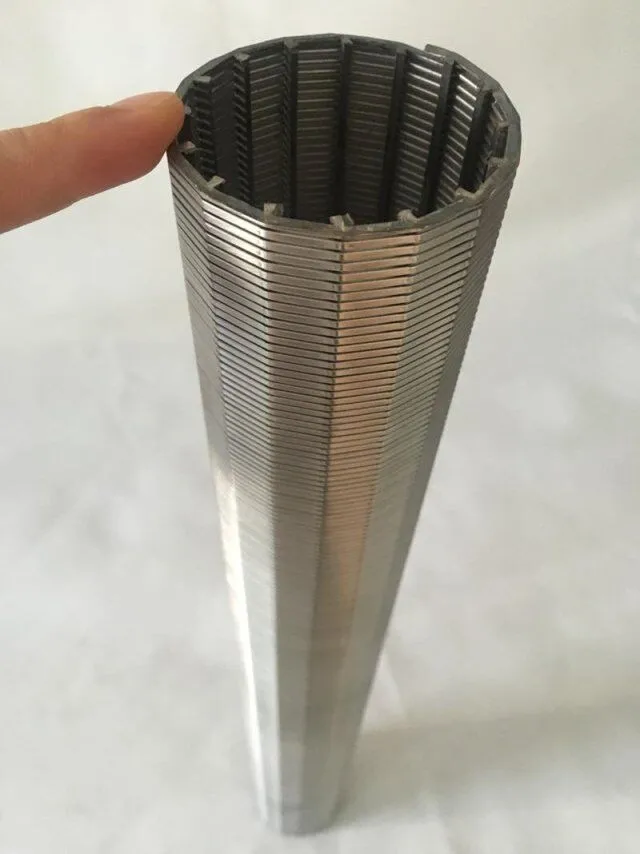

304stainless steel wedge wire tube
Ouside diameter: 6cm
Length: 50cm
Support rod inside
Slot: 200 micron
304stainless steel wedge wire tube
Ouside diameter: 60cm
Length: 200cm
Support rod inside
Slot: 500 micron
Special size wedge wire screen
Size: customized
Slot: 200 500 1000micron

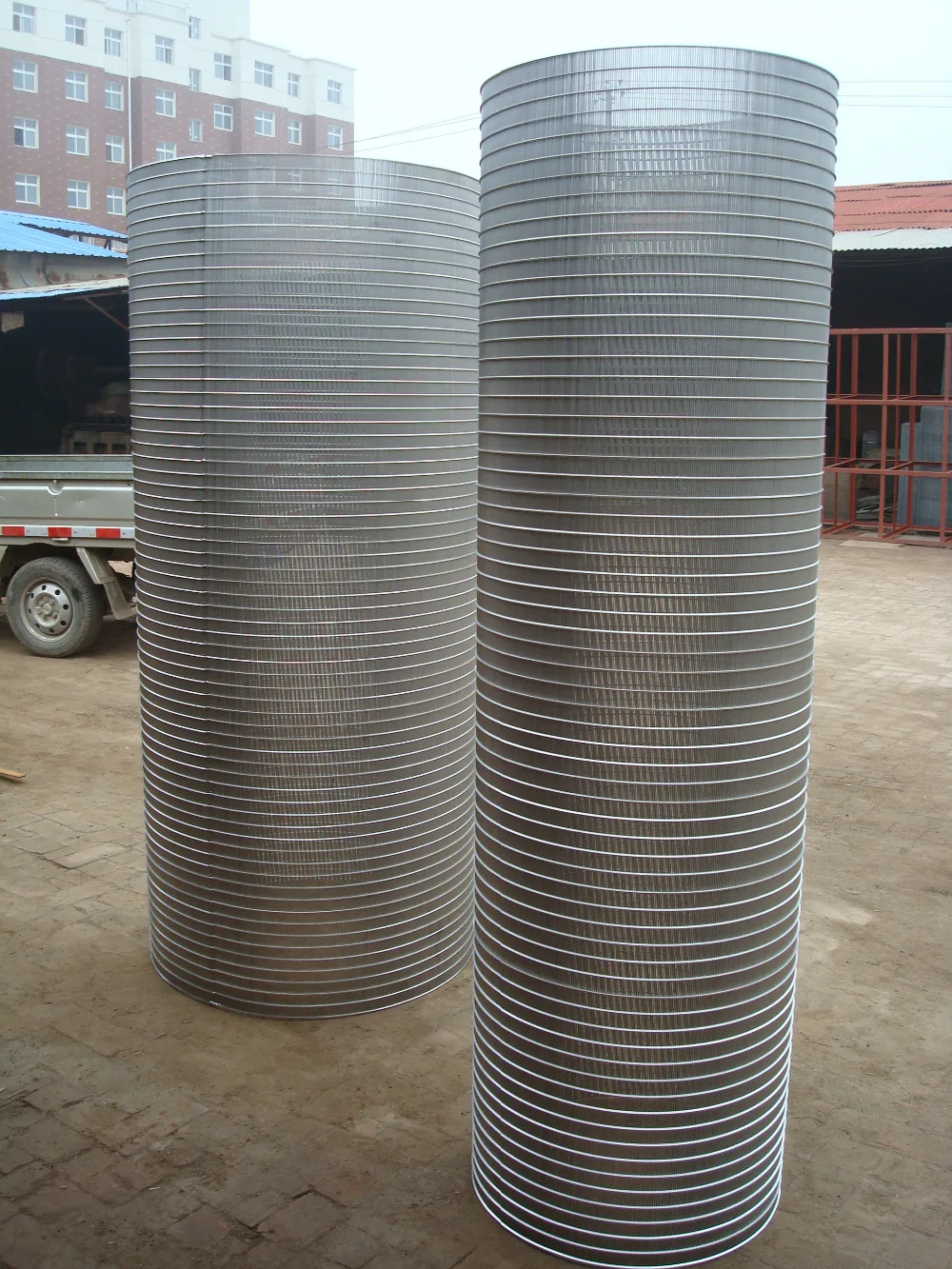

304stainless steel wedge wire tube
Ouside diameter: 40cm
Length: 120cm
Support rod outside
Slot: 500 micron
Application

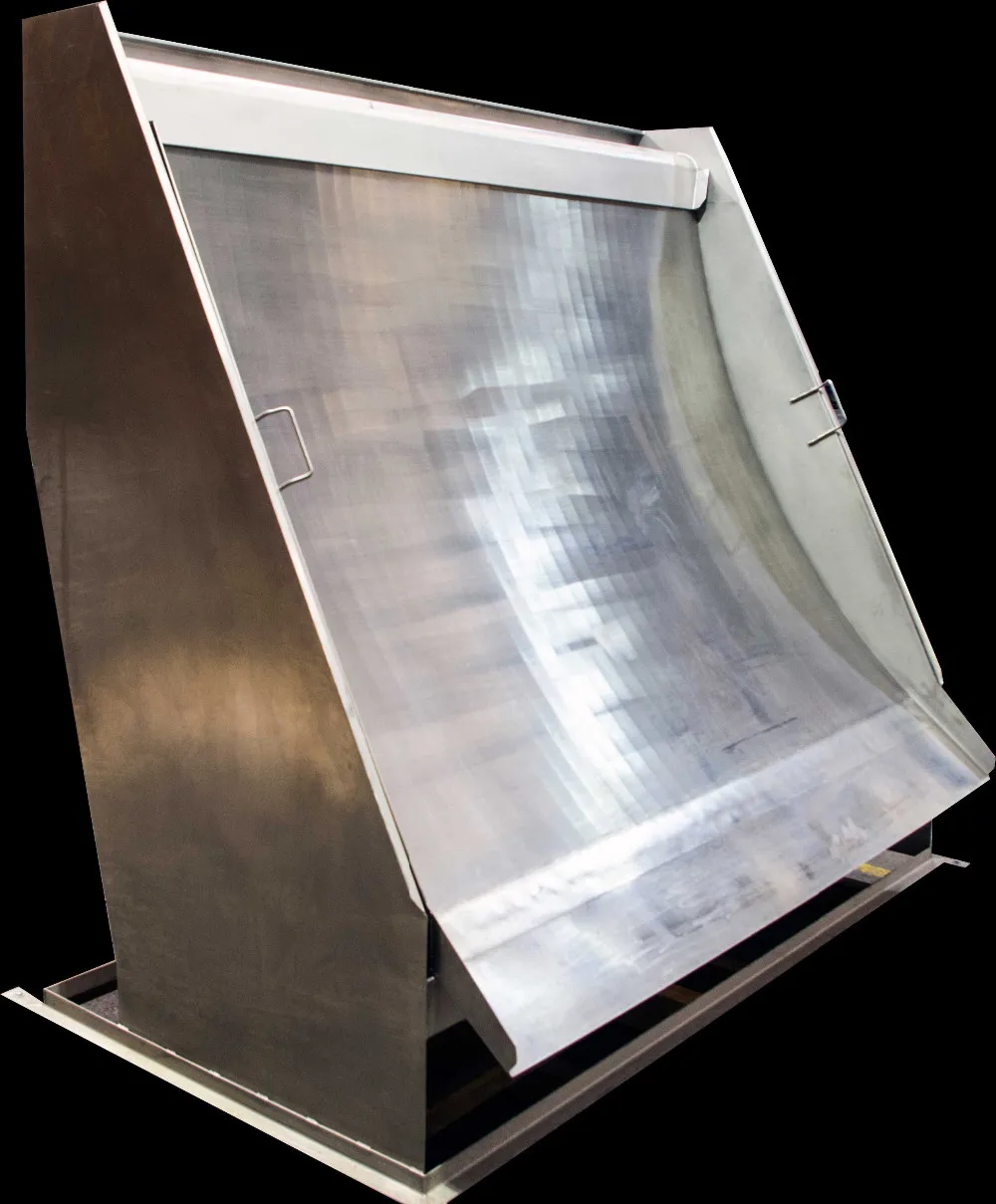

Waster water treatment
Wedge wire screen
Mine filter screen
Wedge wire basket
The organic solution recycling filter
Packing & Delivery
By customized crate
By crate
Specifical wedge wire screen packed by crate
6cm OD filter tube packed by crate
2m Length wedge tube packed by crate
