Geothermal Oil Well Pipe/Johnson Screen Pipe (China Supplier)

Key attributes

Industry-specific attributes

Type

Coupling

Material

Stainless steel

Technics

Forged

Shape

Equal

Head Code

round

Other attributes

Place of Origin

Henan, China

Brand Name

Huadong

Model Number

HD-W177

Connection

Female

material

Stainless steel or carbon steel

diameter

33--600mm

minimum slot

0.2mm

supply capacity

8000meters per month

Rod size

2*3*22,3.8*32,3.8*42,3.8,5 and so on

Slot size

0.2-6mm or produce as client require

wire size

1.5*2mm,2.2*3.5,3*5,3.2*4 and so on

End connection

STC,LTC,BTC thread/welded

Length

1-5.8m to fit the 20'container

Packaging and delivery

Packaging Details

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with: Name & identification mark of manufacturer-HuaDong Brand

Port

Xingang Port

Supply Ability

Supply Ability

8000 Meter/Meters per Month

View More

Product details

Geothermal Oil Well Pipe/Johnson Screen Pipe (China supplier)



wedge wire water well screen pipe consists of wedge-shape profile wire and the longitudinal support rods. each intersecting point of these wires is fusion welded.so water well screen has sturdy constriction and good mechanical property.thewedge-shape section plane can avoid blockage,and make sure of the unimpeded water.the consecutive slot have more open area,and water well screen can reduce the speed of the water entering to aviod the sand entering the screen under the great pressure,so wedge wire water well screen pipes can filter sand better.meanwhile ,the slot can change according to the real condition of the earth.











Johnson Screen Specification
Material:	AISI304/316/316L,etc.
Wedge Wire (mm):	2.2*3.0 , 2.3*3.0 , 2.3*3.5 , 3.5*5.0
Support Rod (mm):	Width : 2.30 3.00 3.30 3.70
	Height : 2.70 3.60 4.70 5.60 6.30
	Round : 2.50mm -- 6.0mm
Slot Size	0.10 -- 6.00mm ,also can be customized as your request.
Length	Max 6 meters.
Diameter (Inch)	4'' 6'' 8'' 10''
Note: Other specifications can be customized according to your requirement.

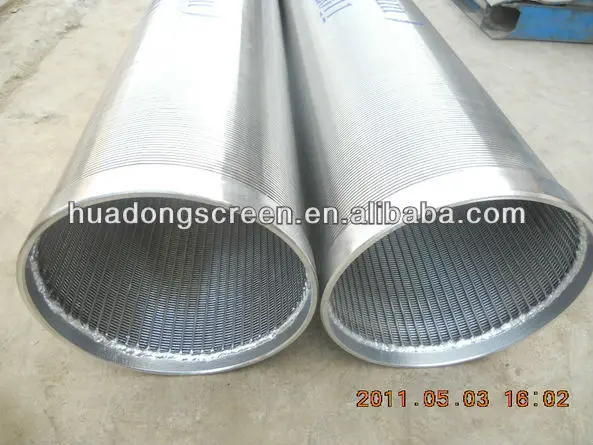

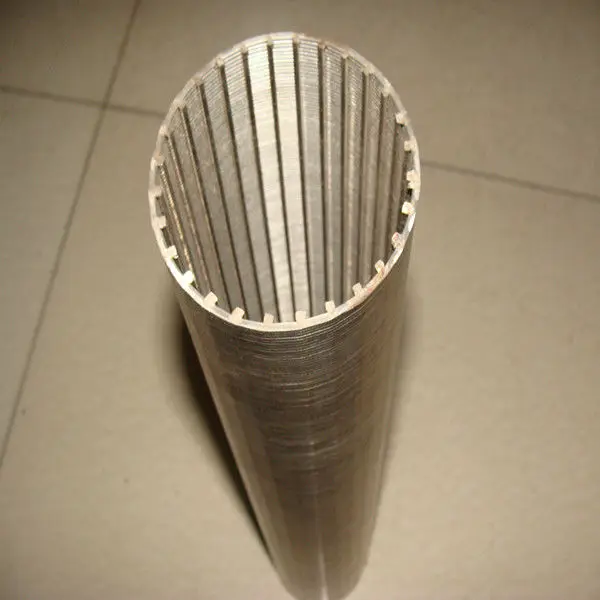

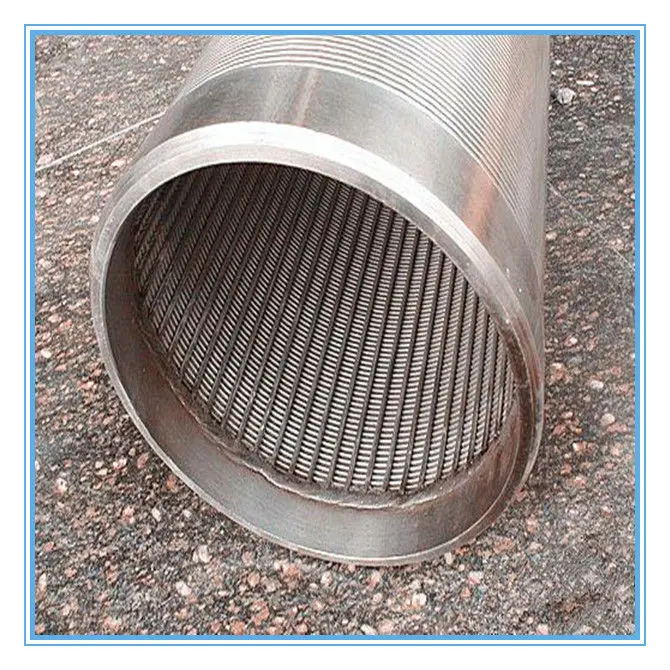

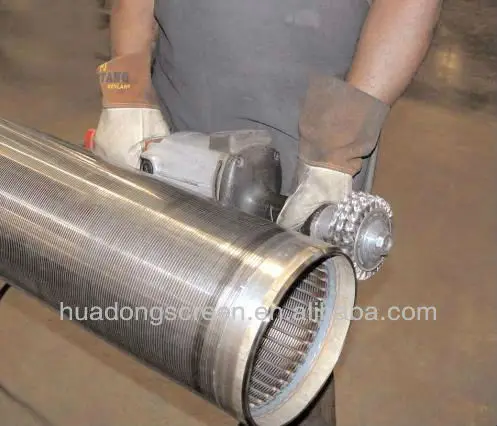

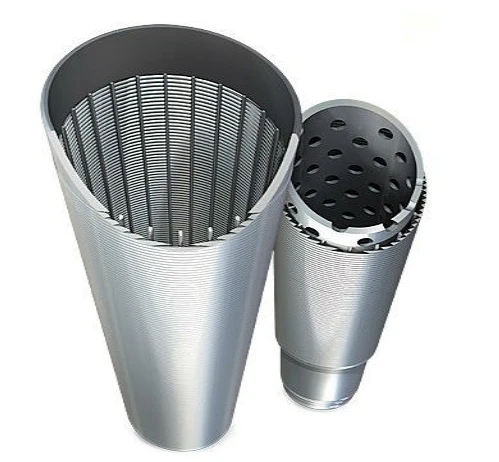

The pictures of diffrent type Johnson well screen



















Wedge Wire Well Screen / Johnson Water Well Screen Application







· Separating , filtering



· Dewatering



· Classifying



· Straining , drying .



· Water intake



















Well screen features and benefits





reliable sand control



very accurate slot openings and pore sizes



slot and pore size validation



resistance against plugging



increased production rates



superior mechanical strength



corrosion and erosion resistance
