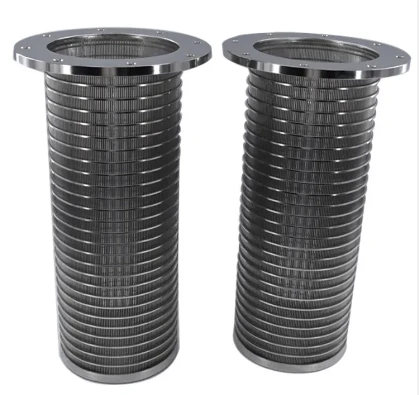

0.5mm 0.7mm 1mm Gap Welded Wedge Wire Screen/ Johnson Well Pipe Bar Screens Filter Sieve Bend Screen

0.5mm 0.7mm 1mm Gap Welded Wedge Wire Screen/ Johnson Well Pipe Bar Screens Filter Sieve Bend Screen

Send Inquiry

Features

wedge wire Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
support rod Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material stainless steel (304,316 etc.)
Length up to 6 meters
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings

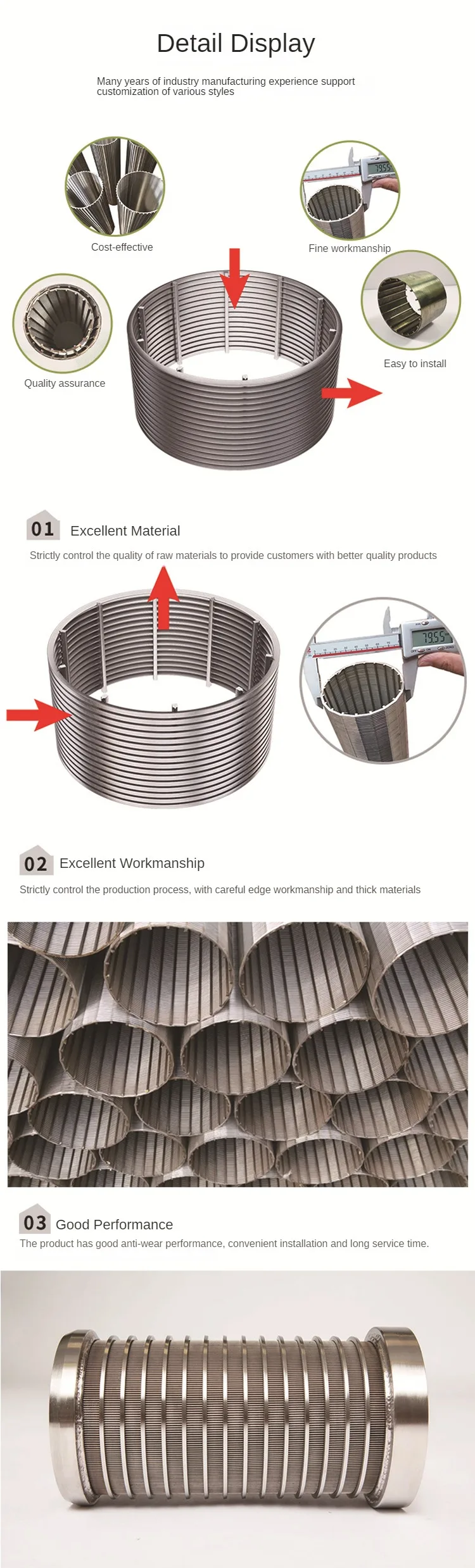

Characteristics The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. It can be used in many kinds of medium filtering.

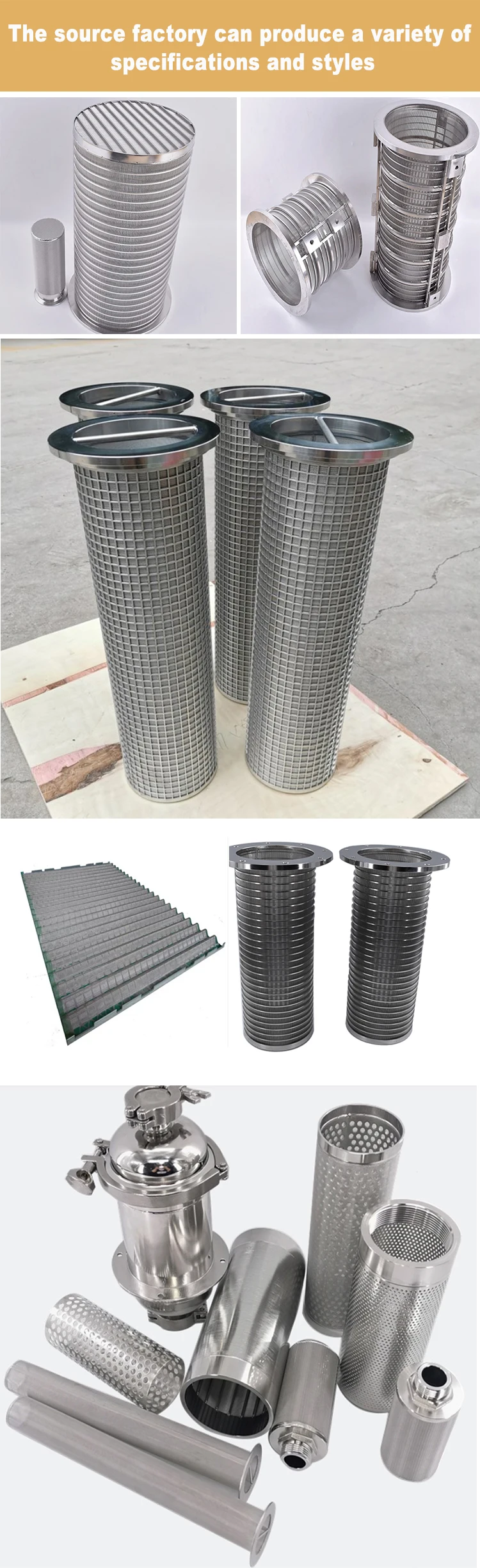

0.5mm 0.7mm 1mm gap Welded Wedge Wire Screen/ Johnson Well Pipe Bar Screens Filter Sieve bend screen0.5mm 0.7mm 1mm gap Welded Wedge Wire Screen/ Johnson Well Pipe Bar Screens Filter Sieve bend screen
