Wire Wrapped Screen 1mm

Details:
Place of Origin:Henan, China
Material:Stainless Steel 304/316
Type:wire wrapped screen 1mm
Application:Filters
Weave Style:wire wrapped
Technique:Welded Mesh
Product name:Wire wrapped Johnson screen
OD:25-600mm
wire size:1.5*2 2*3 3*5 3.2*6
slot:0.5-2.5
length:0.1-5.85m
color:metal
feature:water well drilling cylinder

Packaging & Delivery
Packaging Details:packed with bubble bag and woven bag, then in wooden case, or as customer requirement
Port:tianjin or qingdao

About Huadong:
Huadong screen Co., Ltd has emerged as the leading screens manufacture in China, such as wedge wire screen, bridge slot screen, perforated casing pipe, slotted casing pipe, spiral pipe, wire wrapped screen 1mm with ISO and CE certification and have been 20 years in this field. Our product well recognized by industry professional at home and abroad, base on their products have earned it a reputation in China and found their way into the international markets.

The reason why you choose us:
Professional technology, Completed testing equipment
We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance.
Small profits but quick turnover
Our Scale Production will offer you a lower price, which can help our customer to get more profile without to pay a heavy price.
Perfect After Sale Service10 years' warranty
With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about. Also it is a important reason why so many customer to choose us

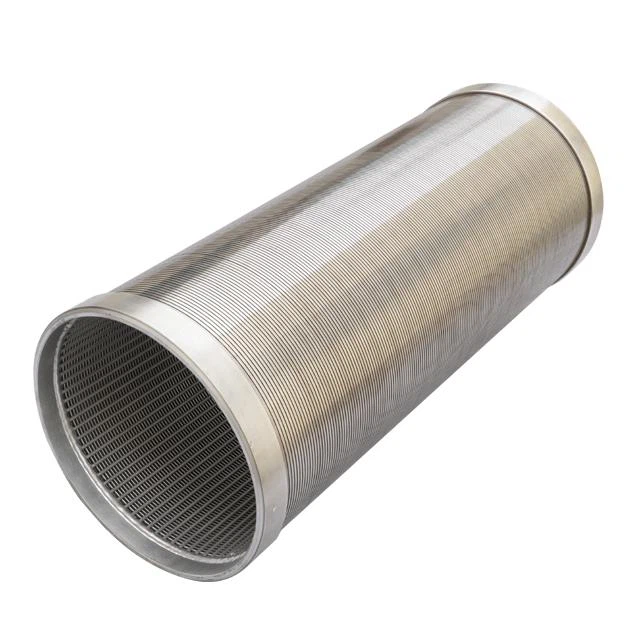

Wire wrapped screen 1mm: consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Water Well Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water.
The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the wire wrapped screen 1mm under the great pressure, so it can filter sand better. Meanwhile, the slot of wire wrapped screen can change according to the real condition of the earth.

Advantage:
1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire wrapped screen 1mm have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy back washing, last long, safety and reliability as well as low comprehensive cost.

Specifications for Wire wrapped screen 1mm:

Product display:
