Stainless Steel Hub and Header Laterals

SS 304L, Hub and Header Laterals, for water treatment,wedge wire screen lateral, if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Send Inquiry

Features

Category:	Wedge Wire Application
Material:	stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:	wedge wire screen
Application:	water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

Tag: SS 304L, Hub and Header Laterals, for water treatment,wedge wire screen lateral, if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

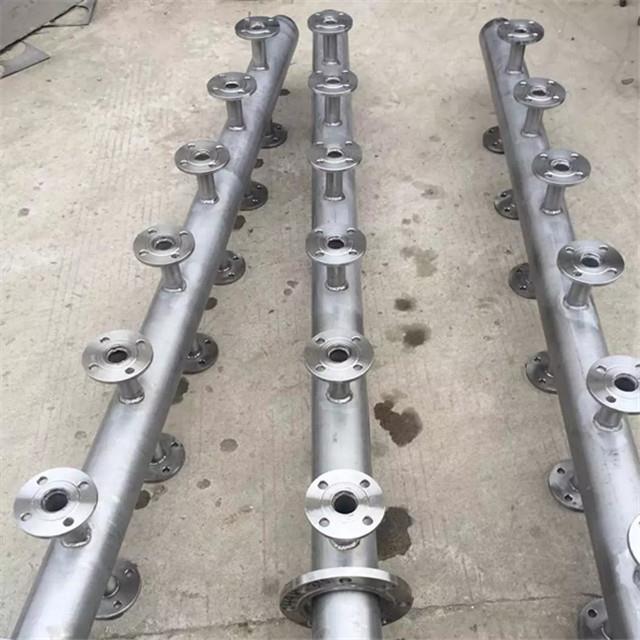

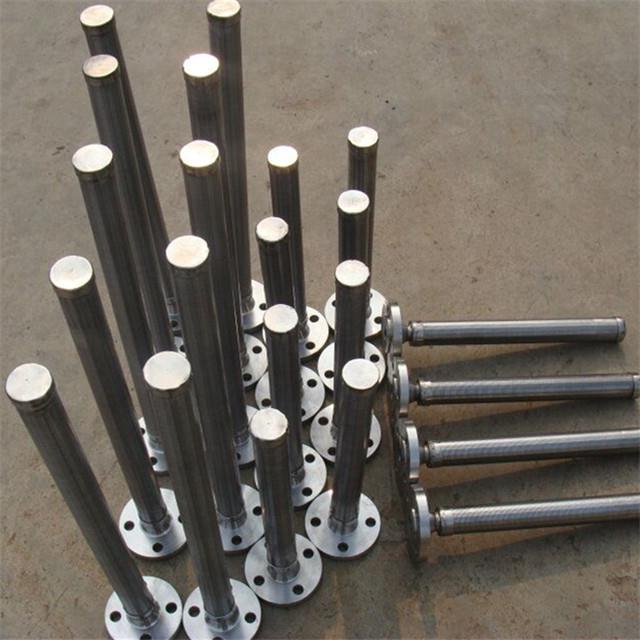

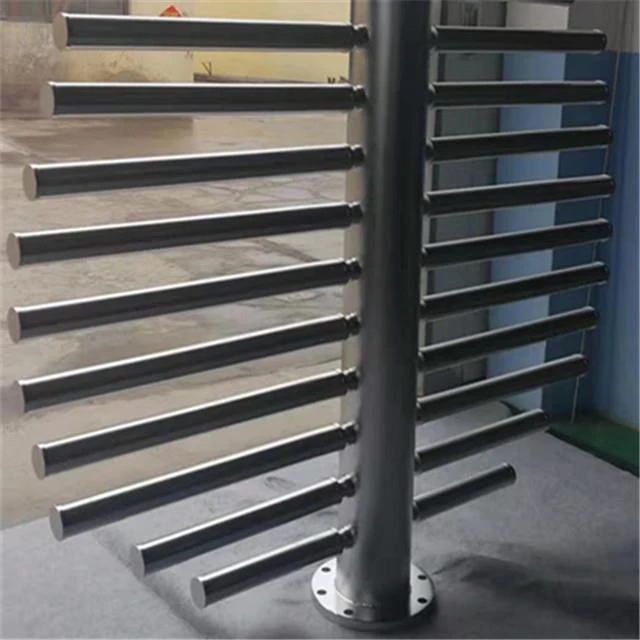

Details of Stainless Steel Hub and Header Laterals
stainless steel hub and header laterals can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header laterals design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion ex-changers, clay and sand filtration applications, carbon towers and power plants with water systems.

Application
Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Advantage
Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
V-wire welded water well screens have the features of easy back-washing, long service life, high safety and reliability and competitive price.

Specifications:

Header pipe Diameter	50,53,57,60,65,70,75,80,100,125,200,245,300,320,360,400,450,500,550,600mm
Slot	0.1,0.15, 0.2,0.25,0.3,0.5…..15 mm
Length	50~6000mm
Material	Stainless steel or low carbon galvanized steel (LCG)
Connection	Flange or screw thread
