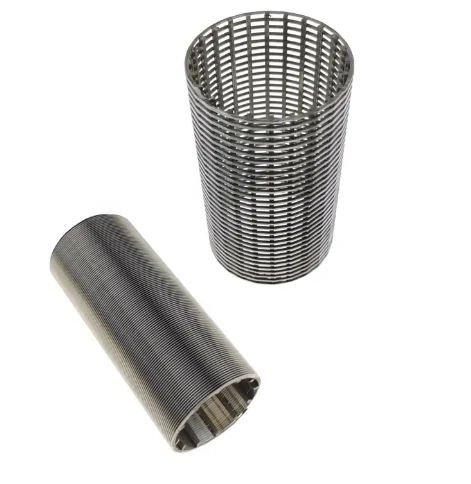

Stainless Steel 304 Waste Water Treatment Water Well Johnson Screen Wedge Wire Screen

We a factory specializing in the manufacture of wedge meshes. Exquisite craftsmanship has won us very high praise in the filtration industry. Our plant is equipped with state of the art screen fabrication technology to produce finest quality wedge wire screens with accuracy of wire drawing facility to achieve the highest product quality.

Design Features of Water Well Screen

Non Plugging slots V-shaped wire creating, two point particle contact preventing plugging Inwardly opening slots (in-flow) preventing sand particles from remaining lodged in screen.The V-shaped wire enhances well efficiency, ensures consistent pumping and long well life. Large Open area The continuous slot wedge wire offers higher open area than any other type of screens used for water well applications, such as slotted pipe, punched pipe, louver screens.Wedge wires for each application are selected to maximize open, area, resulting in the lowest possible cost for water extraction.

Technical Details

1). Available sizes from 1" ( 25 mm) to 22" (560 mm) 2). Water well screens designed to suit well depth 3). Available in slots sizes from 0.15 mm to 3 mm 4). Length up to 6 metres available 5). Materials : Low Carbon Galvanised / SS304/ SS316/ SS316L – or as required to meet Customer requirements. 6). End fittings – to suit Customer requirements

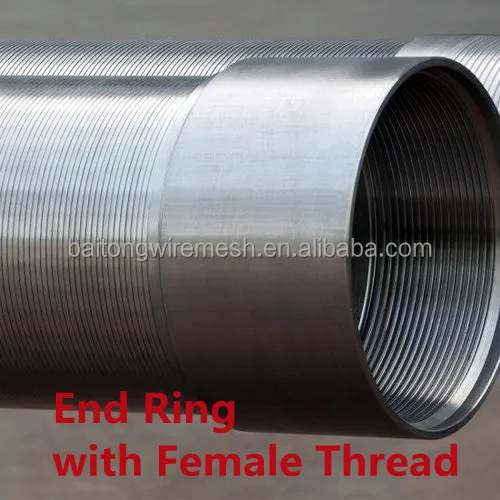

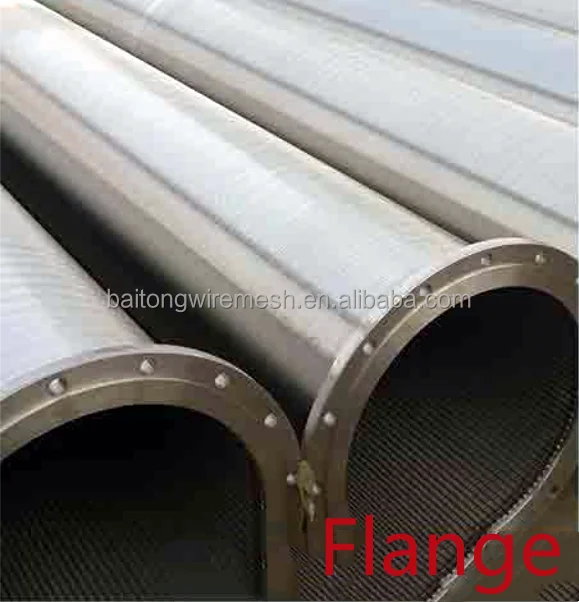

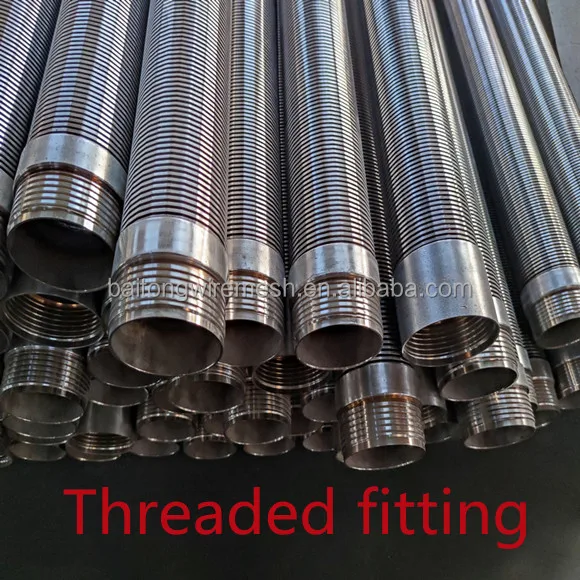

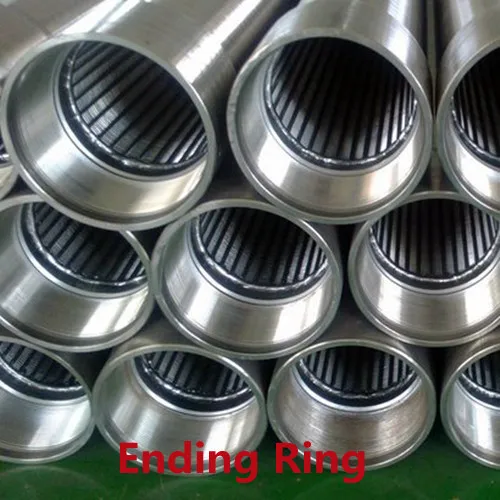

End Fittings are as below

Specification

item	value
Slot Size	Generally, from 0.02 mm to 3.00 mm. (tailor made to our customer's requirements)
Screen Profiled Wire	Generally, from 0.75*1.50 mm to 3.0*5.0 mm
Support Wire	Generally, the support wire is 2.0*3.0 mm and 3.0*5.0 mm. (tailor made to our customer's requirements)
Distance Between support wire	Generally the distance is from 10 mm to 40 mm. (tailor made to our customer's requirements)
Material	AISI430 / AISI304 / AISI316L / AISI321
Processing Service	tailor made to our customer's requirements, including cut into various shapes.

Packing & Delivery

Wooden Pallets or Wooden Boxes to better protect your products during the transport.
