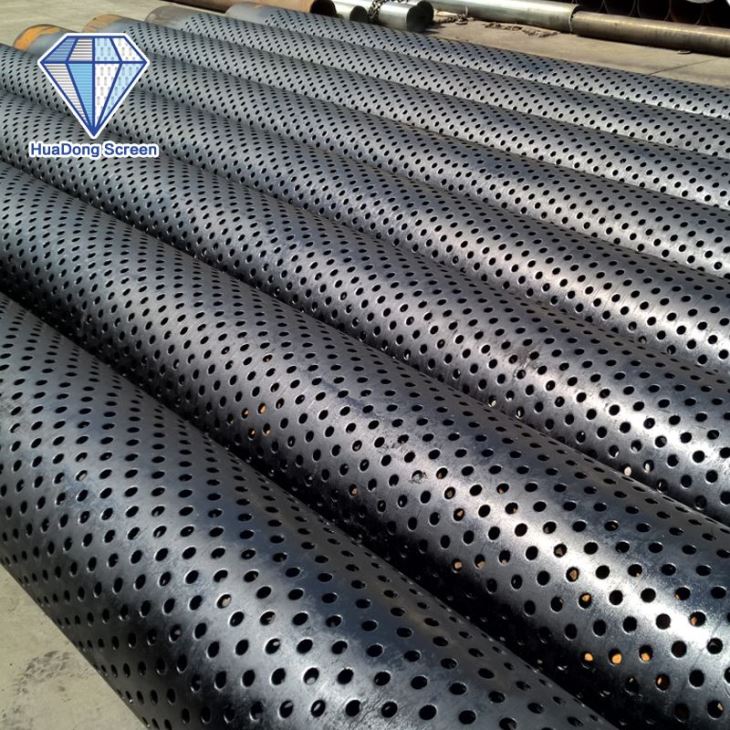

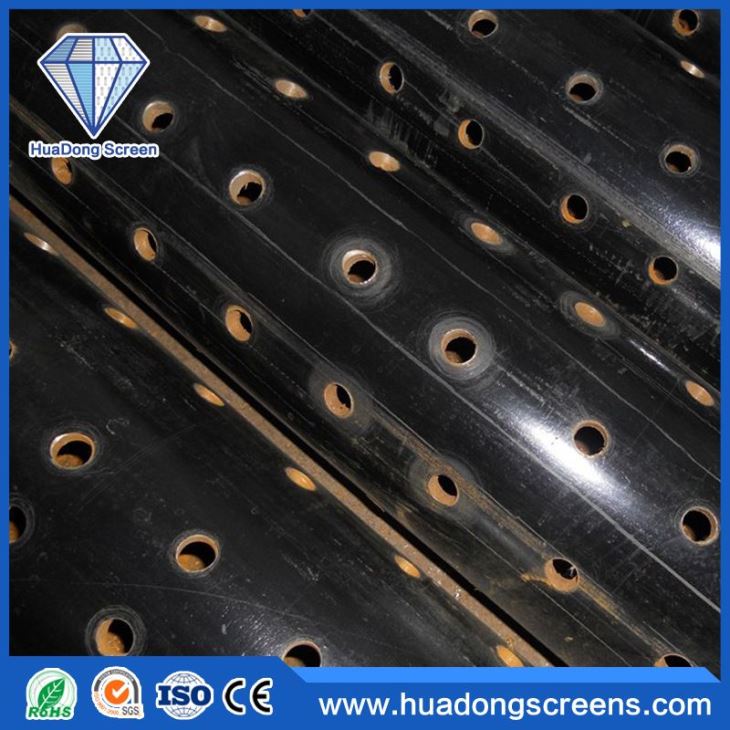

Perforated Casing Pipe
For the pre-packed screen,base pipe can apply perforated casing pipe with API standard,bright slot screen,or continuous slot well screen,while in the middle layer,the filter media could be quartz
Features
Products introduction:
For the pre-packed screen,base pipe can apply perforated casing pipe with API standard,bright slot screen,or continuous slot well screen,while in the middle layer,the filter media could be quartz,wire mesh,metal fibre,ceramic beads,ect.The screen jacket could use continuous slot screen,bridge slot screen.
Specification
Material: API standard J55,k55,n80.Stainless steel 304,304l,316,316l.Low carbon steel.
Hole Arrangement:Parallel,Spiral
Hole Shape:Round
Hole Size:5-30mm
Outer Diameter:OD60-630mm
Wall Thickness:2-20mm
End connection:beveled or thread
Length:1-12m
Product Description
Packing&shipping
Small quantity:in bulk or bundle,or wooden case
Large quantity:Direct to container
