Johnson Wedge Wire Screen Tube Filter Cylinder For Sewage Wastewater Screening Automation

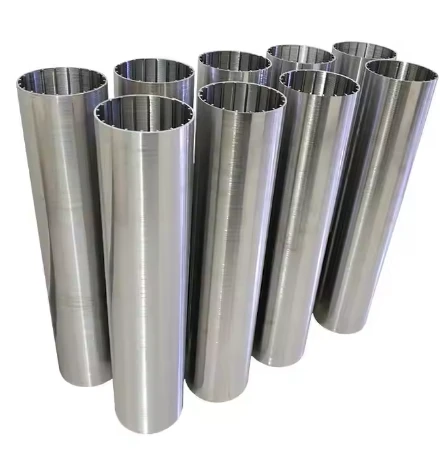

Johnson Wedge Wire Screen Tube Filter Cylinder for Sewage Wastewater Screening

Johnson Wedge Wire Screen Tube Filter Cylinder for Sewage Wastewater Screening is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

Features

1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body

Specifications

Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range	According to request and the actual flange and strengthen bar
Normal ID	176mm, 200mm, 230mm, 255mm. According to request
Normal Length	600mm, 602mm, According to request
Normal Slot	0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.
Slot Direction	Radial Direction
Wedge Wire	0.75x1.5	1x2	2x3	2*4	3*5
Support Rod	1.5x2.5 2x3	1.5x2.5 2x3	2x3 2x4 3x5 3x6	2x4 3x5 3x6 5x6	3x5 3x6 5x6
End Finishing	Flange, , Metal Ring, etc
Note	Customized According To Requirement
