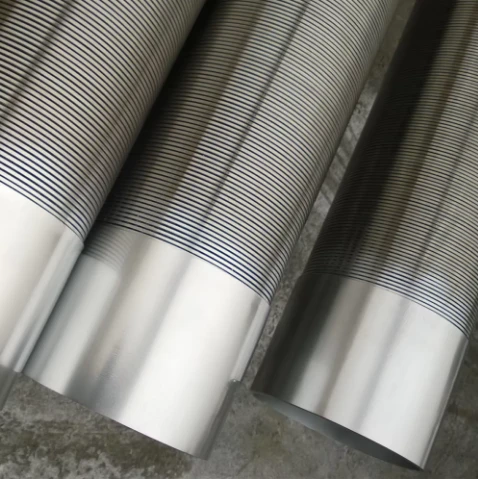

Drill Pipe Sand Screen Filter/Johnson Well Screen For Sand Control

SIZE

(inch)

O.D

(mm)

SLOT

(inch)

LENGTH

(m)

Collapse

Strength

(psi)

Tensile

Weight

(ton)

Wire size

(mm)

RODS (mm)

4

114.3

0.040

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8mm/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8mm/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8mm/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8mm/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8mm/50

Stainless steel strainer

Material

Stainless steel,carbon steel

Product introduction

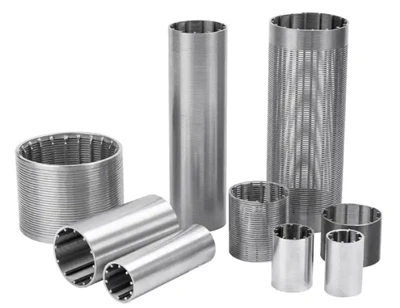

Wedge wire Screen consist of V-shape profile wire and the longitudinal support rods. the V-wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. So wedeg wire screens has sturdy constriction and good mechanical property.

Advantage

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2. Low cost operation Screens with high open area shall favor groundwater infiltration.Abundant water shall reduce the water level's down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater's entering into the screen much slower than any other filtration apparatus, which will avoid sand's entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells

The season why you choose us

Professional technology, Completed testing equipment

We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance

Small profits but quick turnover

Our Scale Production will offer you a lower price, which can help our customer to get more profite without to pay a heavy price

Perfect After Sale Service10 years' warranty

With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about .Also it is a important reason why so many customer to choose us.

erfect testing equipment to make sure the quality of our products.

Our tenet

"Develop together, Gain the future."

OEM service

YES

Payment

30% T/T deposit, 70% balance before delivery.

Or based on our communication

Package

bundle or bulk or packed as customers' requirements.

Sample

available
