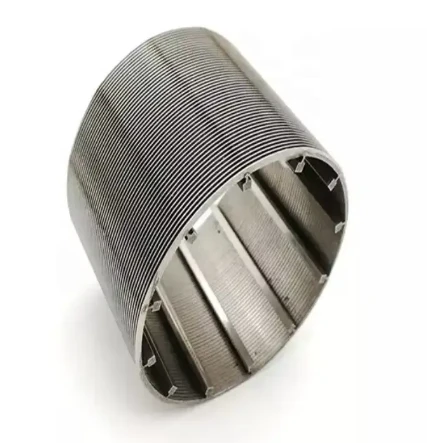

Huadong Factory Supply Water Well Pipe Screen Johnson Screen Pipe Wedge Wire Screen Filter

Product Description No matter how special the filter which you looking for, we will make your idea come true. We make sure HUADONG can do so. pls kindly Follow us first, then click"Send Inquiry" or" Contact Supplier",let's solve all issue through communication. External...

Send Inquiry

Features

Product Description

No matter how special the filter which you looking for, we will make your idea come true. We make sure HUADONG can do so.

pls kindly Follow us first, then click"Send Inquiry" or" Contact Supplier",let's solve all issue through communication.

Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range	Up to 6000mm
Width Range	Up to 6000mm
Slot Range	20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes	Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire	0.5X1.5	0.75X1.5	1X2	1.5X2	2X3	2X4	3X5
Support Rod	1.5X2.5 2X3	1.5X2.5 2X3	1.5X2.5 2X3	1.5X2.5 2X3	2X3 2X4 3X5 3X6 3X10 4X7	2X3 2X4 3X5 3X6 3X10 4X7	3X5 3X6 3X10 4X7 5X6 5X8
End Finishing	End Finishing
Note	Customized According To Requirement

External diameter: 25--300mm
Standard: Non-standard, OEM, ODM
Specification:Easy leakage, wear resistance, corrosion resistance. The mesh cross
section is a trapezoid, narrow width of the gap, have a wire made of cold rolled
stainless steel, this wire is support rods. The screen is uniform, the welding is
stable, high hole rate, long service life, high strength, stiffness and bearing capacity
of rigid, screening filter device can be made into various shapes.

The service life of HUADONG products is 90% -95% of the original filter element, which meets the needs of most customers
