Water Well Borehole Well Screen/High Precise Slot Wedge Wire Screen Used in Water Supply Or Oil Well

Water Well Borehole Well Screen/High Precise Slot Wedge Wire Screen Used in Water Supply Or Oil Well

Product details Product Description V wire wrapped strainer consist of V-shape profile wire and the longitudinal support rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. Direction for use The continuous-slot wedge wire screen is widely...

Send Inquiry

Features

Product details

Product Description

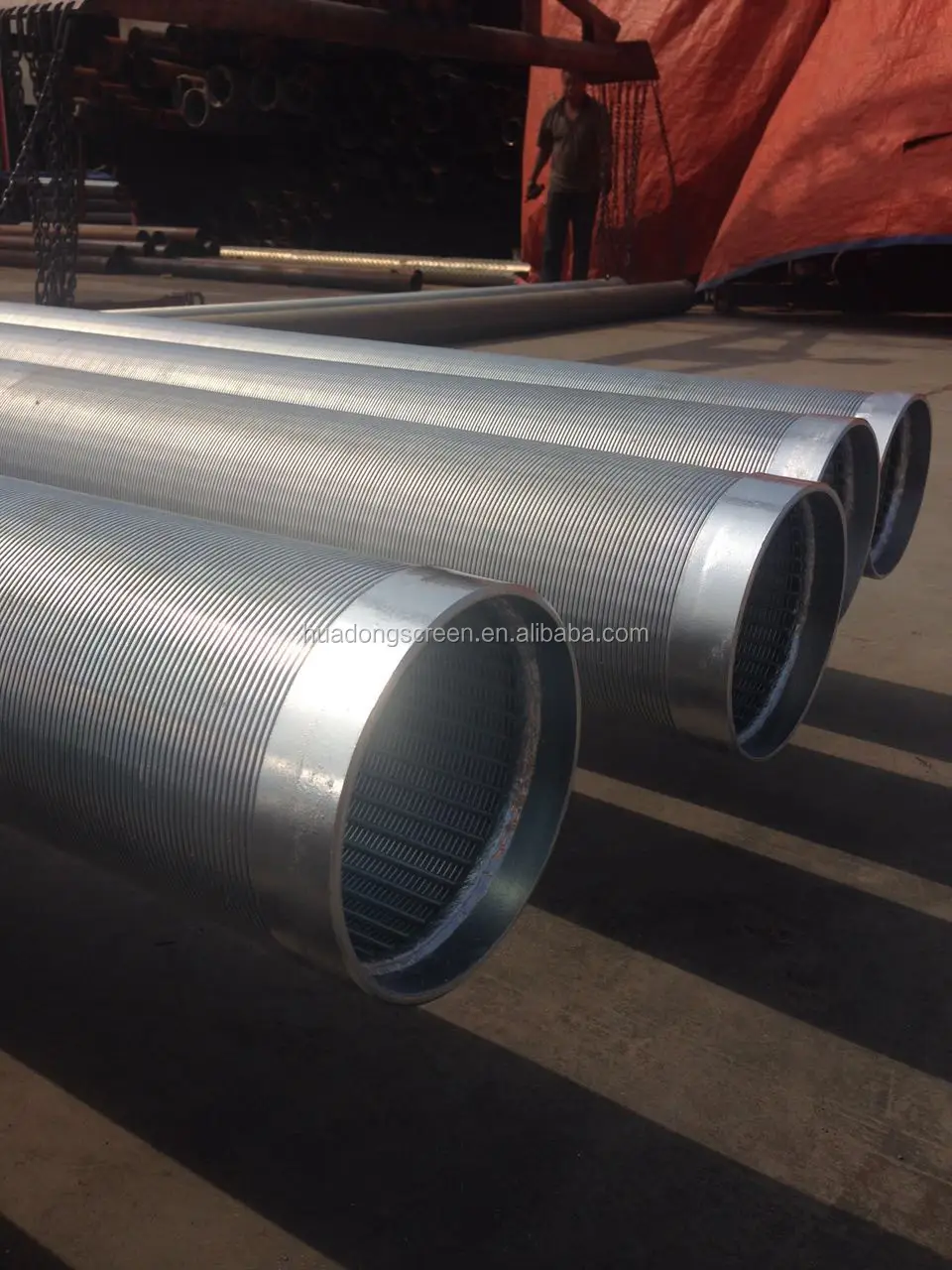

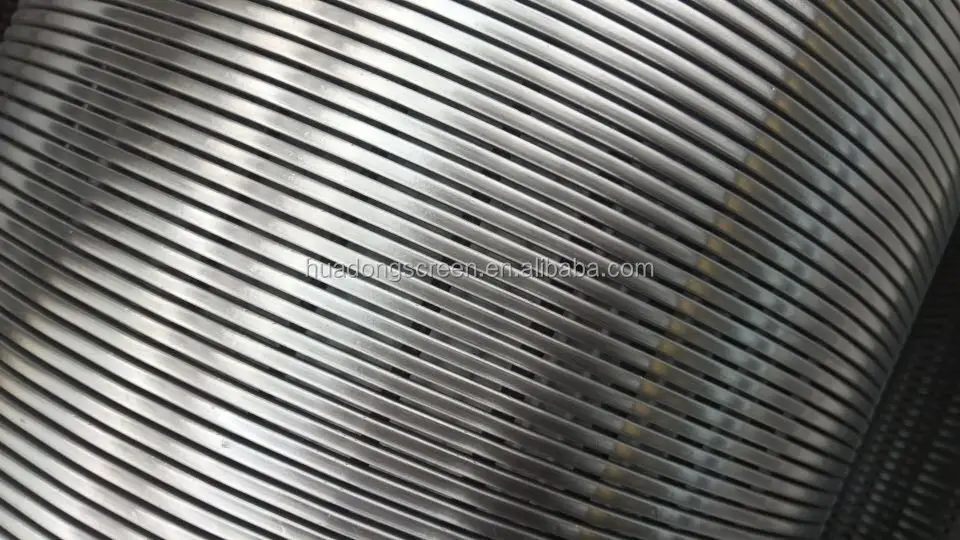

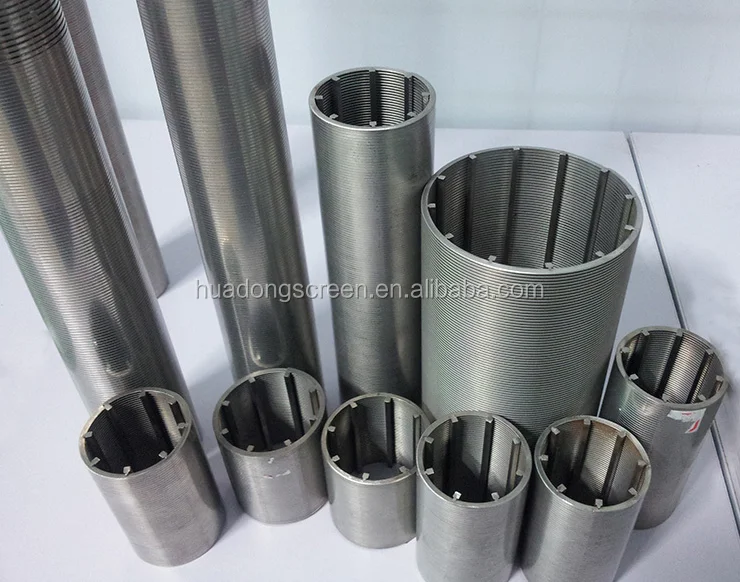

V wire wrapped strainer consist of V-shape profile wire and the longitudinal support rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
product-1-1
product-1-1
Direction for use
The continuous-slot wedge wire screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.


Description of application effect

1A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2. A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5. Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
product-1-1
Detailed Images

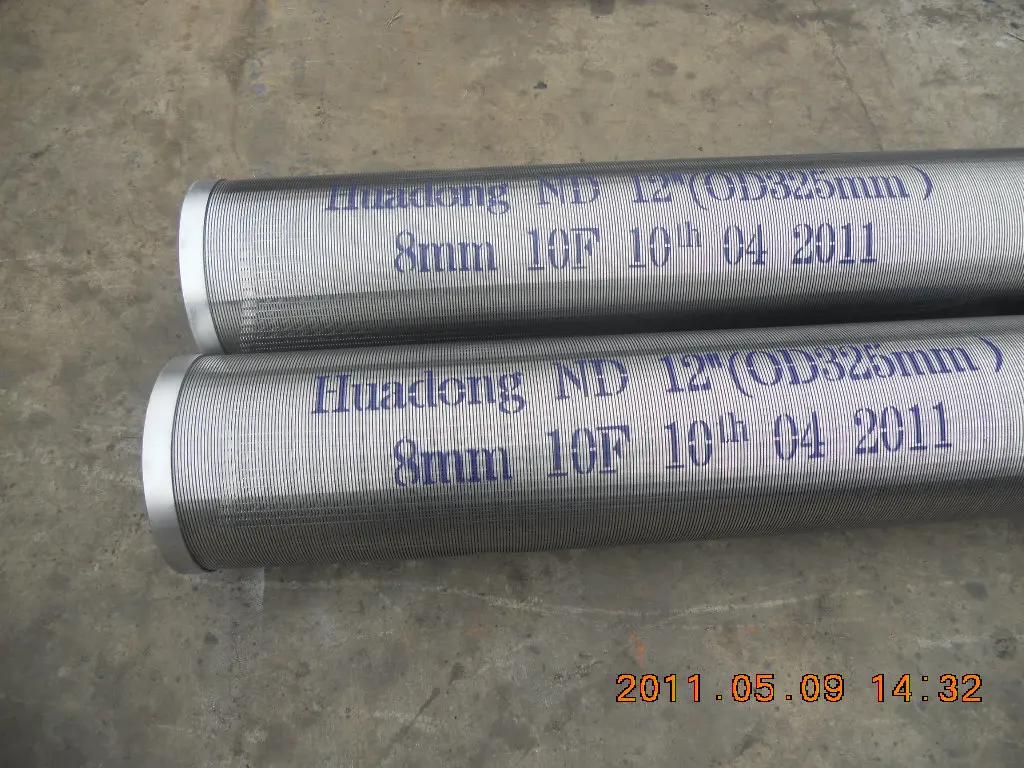

Well screens are manufactured from a variety of materials and range from crude hand-made contrivances to highly efficient and long-life models made on machines. The valueof a screen depends on how effectively it contributes to the success of a well.
product-1-1
product-1-1
product-1-1
product-1-1
Size Information
Size Chart of This Design
Material
Galvanized carbon steel(LCG), stainless steel (304,304L,316,etc.)
Diameter
from 30-1500mm /(114.3mm- 4 1/2”,168.3mm-6 5/8”, 219.1mm- 8 5/8”, 244.5mm- 9 5/8”, )
Slot size
0.03mm, 0.10, 0.15, 0.2, 0.25, 0.30-5 or as customers’ requirement
Length
1- 6m, 5.8m fit for the container
Open area
up to 40%
End connection
welding (beveled end), thread coupling(STC,LTC,BTC), flange,
Surface
galvanized, painted, polish, packiled and passivation, etc.
Note
wires, rods and slots sizes can be customized
Packing&Shipping

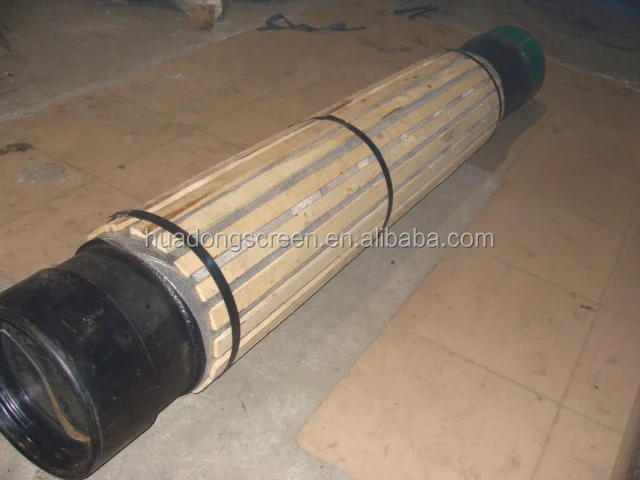

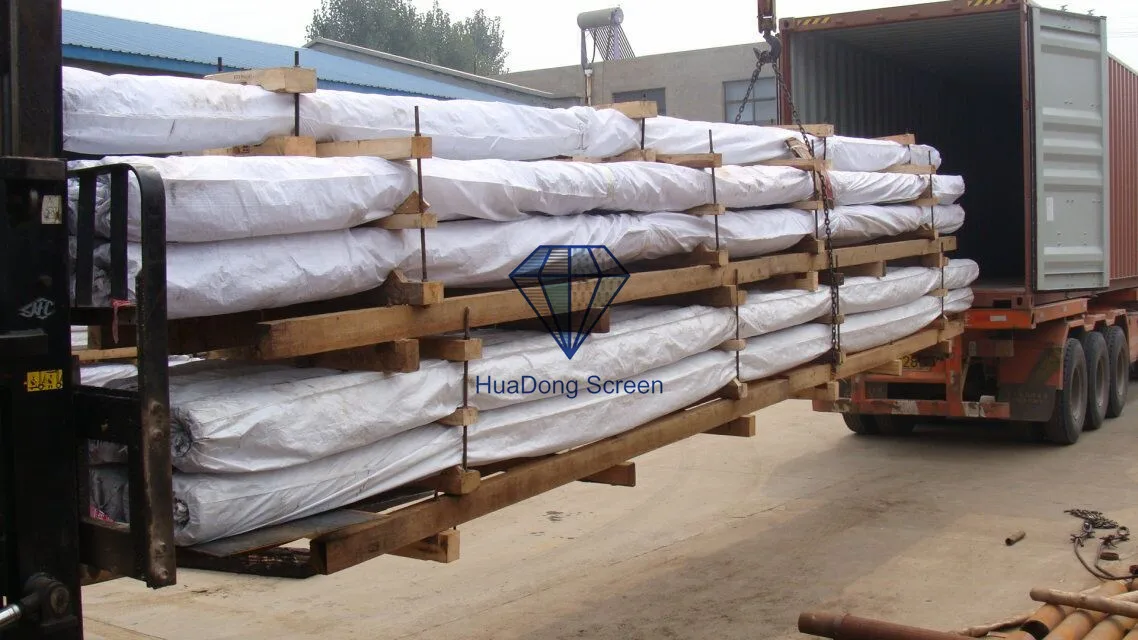

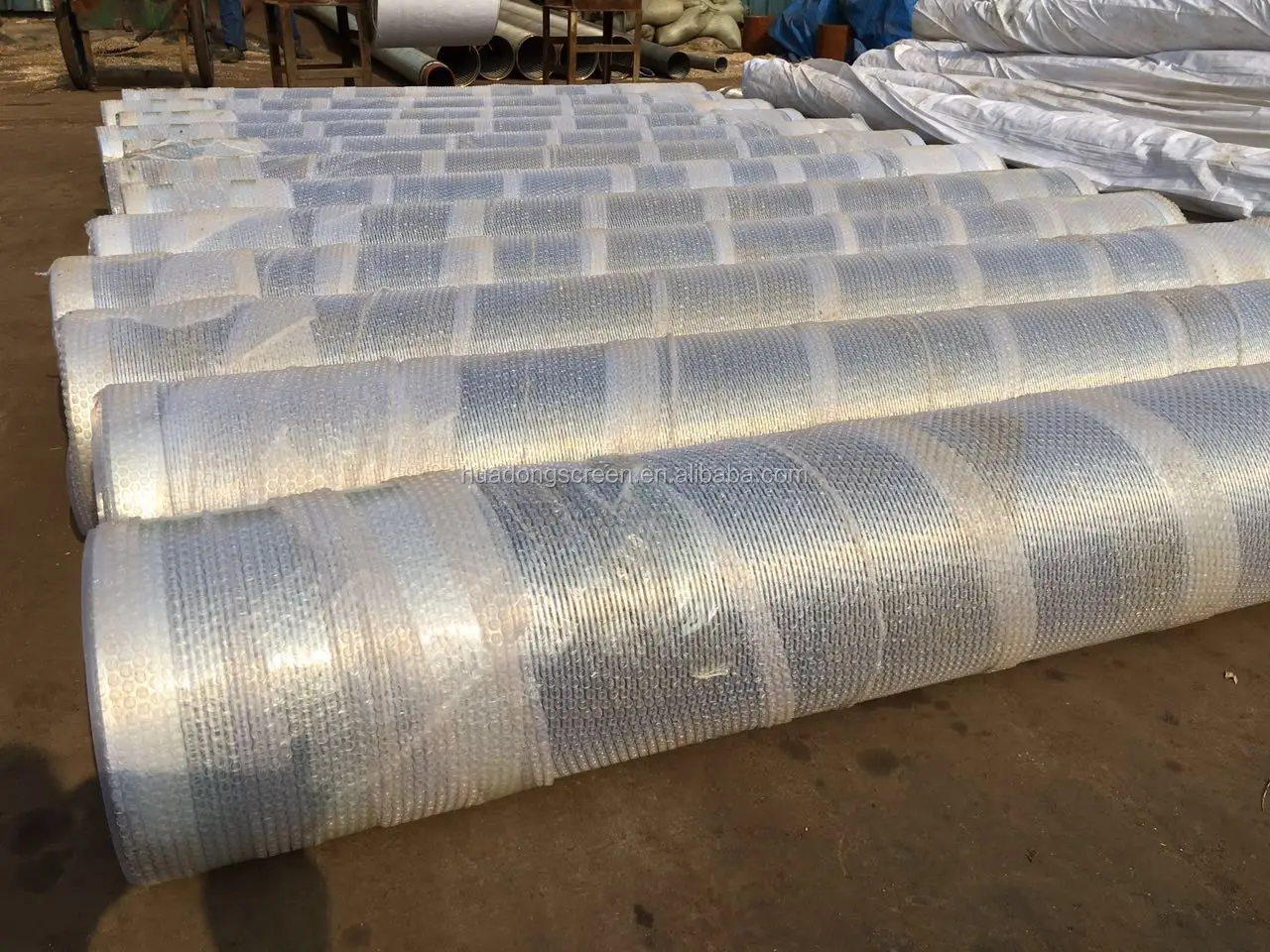

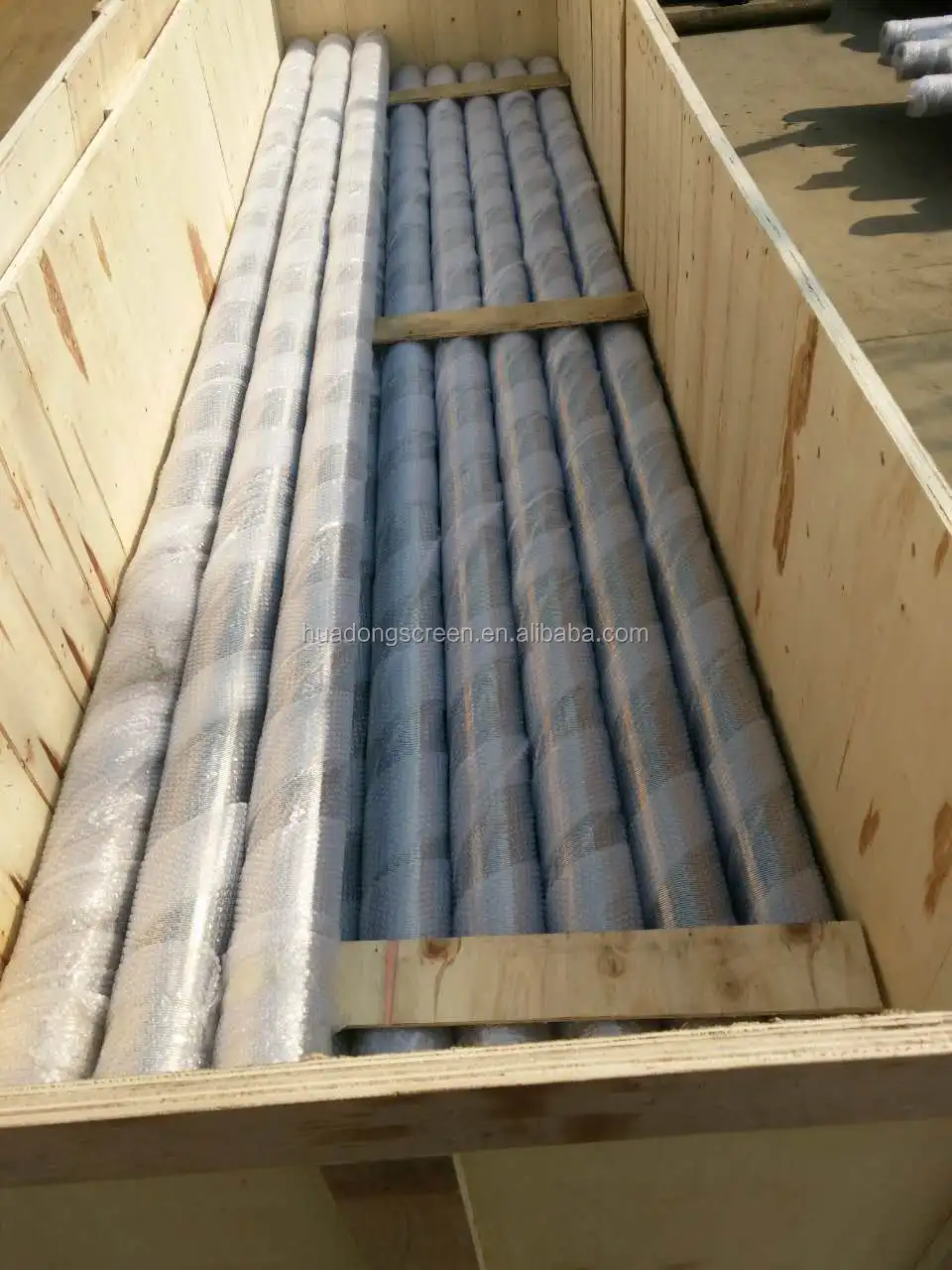

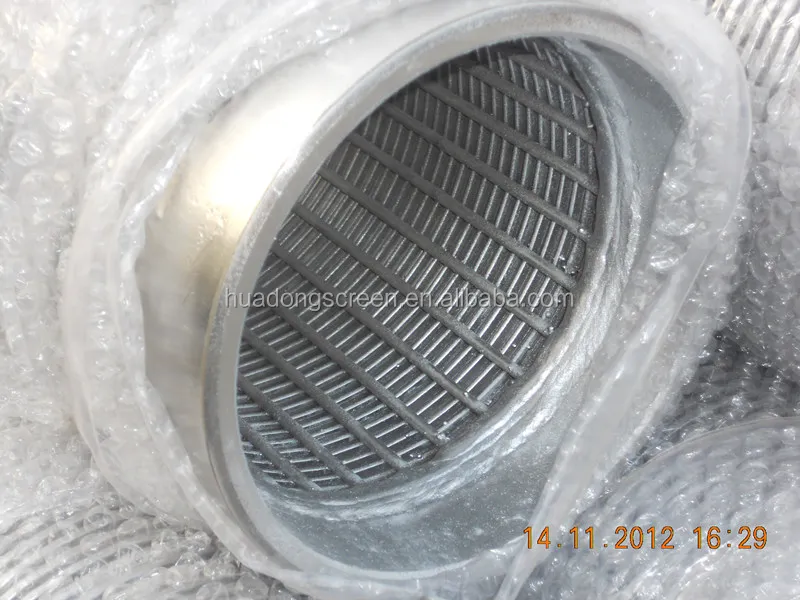

Wedge wire screens are packed with woven bags/bubble bags, then with wooden strip, in wooden case or container; according to customers' requirements
product-1-1
product-1-1
product-1-1
product-1-1
Company Introduction

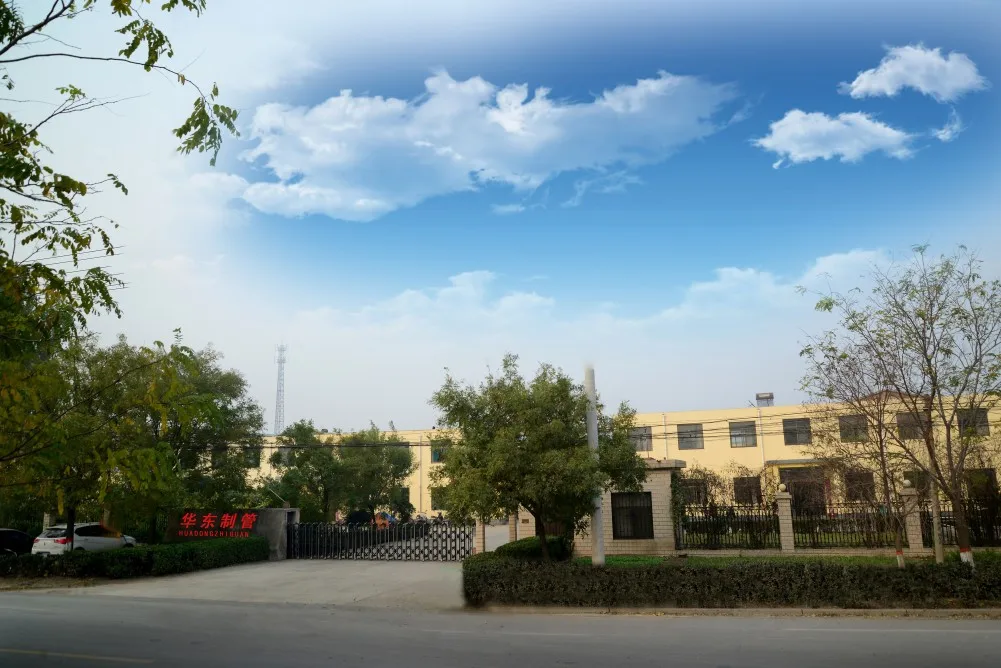

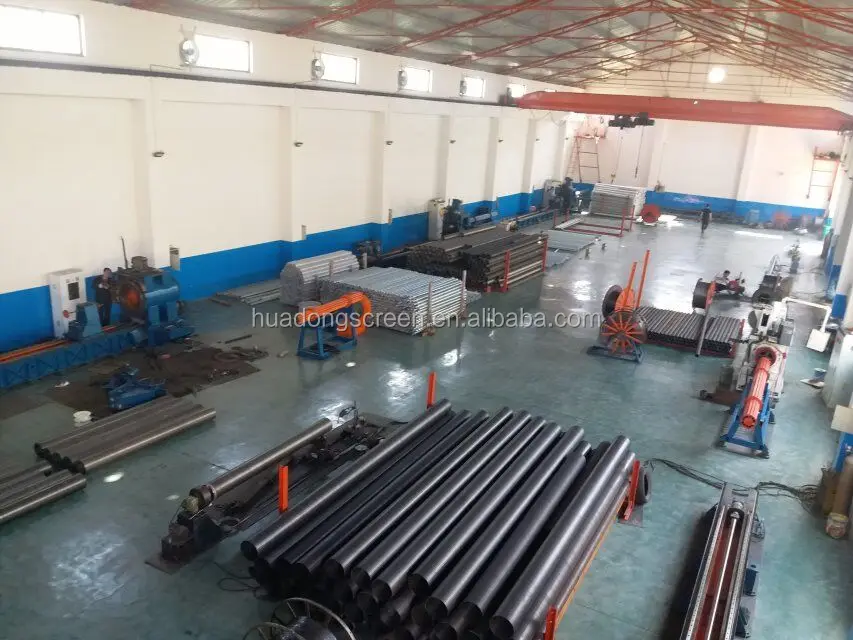

Huadongscreen Co.,Ltd has emerged as the leading screens manufacture in China.It is a professional complex combining scientific research,designing and developing,production,Marketing.with sophisticated manufacturing facility,advanced technologies and perfect detection measures,our product well recognized by industry peofessionals at home and abord,base on their products have earned it a reputation in China and found their way into the international markets.
product-1-1
product-1-1
product-1-1
Our Services & Strength

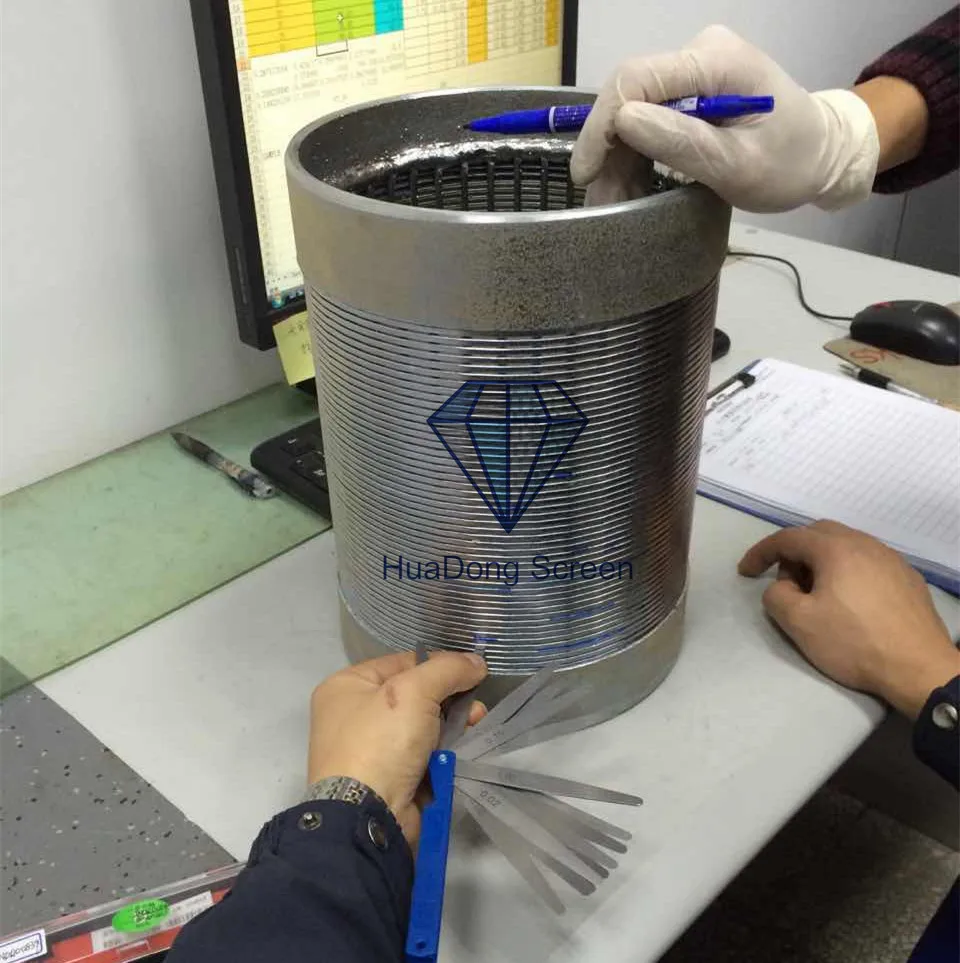

The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative appointed by buyer.
The screens will be arranged the Pre-shipment Inspection if required.
FAQ
1.What the diameter of well strainer do you need?Standard diameter:2inch 4inch 6inch 8inch 10inch 12inch ect,our factory can make the diamater of 25-1200mm
2.Would you like to tell me the specification of V wire?Engineer recemand:1.5*2mm 2*3mm 2.2*3.5mm 3*5mm 3.2*6mm, It's up to you at
last.
3.Pls tell me the slot size,the size usually is 0.1-15mm.
4.I hope you can tell me the depth of well and which aspect do you plan to be used in?
5.How many meters do you need?the more you want,the price will be cheaper.
Our engineer will recommend you the most suitable specification according our 20 years experience.
