8inch 10inch Water Well Screen Slotted Pipe Johnson Wedge Wire Screen For Water Well Drilling

8inch 10inch Water Well Screen Slotted Pipe Johnson Wedge Wire Screen For Water Well Drilling

Product Description If you need the quotation, please advise us: 1.Material: 304 or 316SS wedge wire? 2.Slot: 0.2mm-5mm, which one? 3.Profile wire size: 1x2mm, 2x3mm etc 4.Support bar size: 2x3mm, 3x4mm etc 5.For rotary screen drum, please advise us the outside diameter and length; for screen,...

Features

Product Description
product-1-1
If you need the quotation, please advise us:

1.Material: 304 or 316SS wedge wire?

2.Slot: 0.2mm-5mm, which one?

3.Profile wire size: 1x2mm, 2x3mm etc

4.Support bar size: 2x3mm, 3x4mm etc

5.For rotary screen drum, please advise us the outside diameter and length; for screen, please advise us the width and length.

6.If you have drawings, please send us.

Material
stainless steel 304,316,316L
Slot size(Opening)
0.01-5mm or customer's requirement
Support bars pitch
1.5-3cm or customer's requirement
Wedge wire size
1*2mm, 2*3mm, 1.2*2mm, 1.5*2mm, 2*3.5mm, 2.2*3.5mm, 3*4.6mmor others
Support bars size
2*3mm,3*4mm,3*4.6mm or others
If you have drawings, please send us to check
product-1-1
Detailed Images
product-1-1
product-1-1
product-1-1
product-1-1
product-1-1

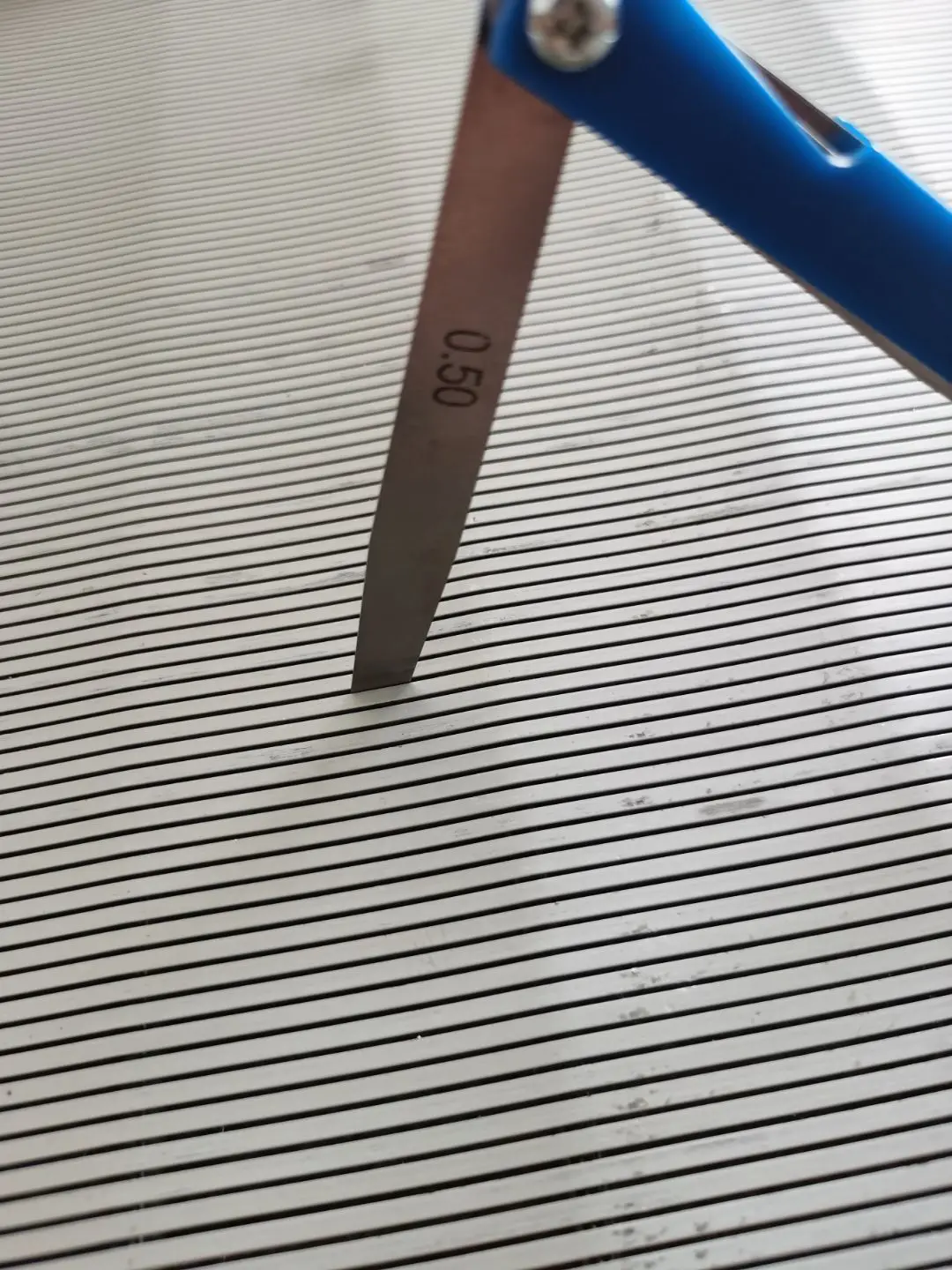

slot size:0.5mm
product-1-1
slot size:0.75mm
product-1-1

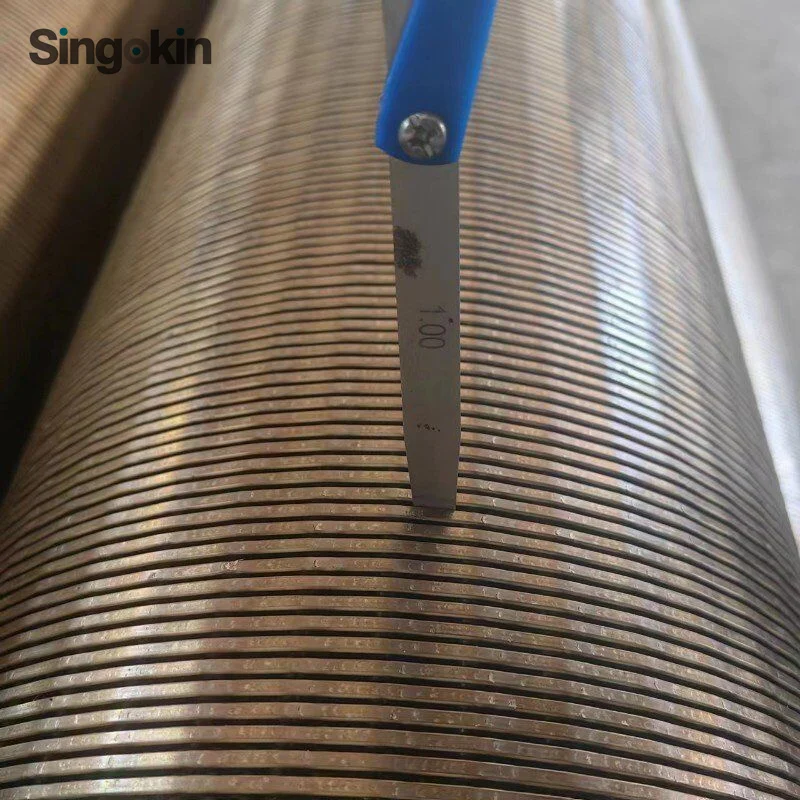

slot size:1mm

Characteristic of wedge wire welding screen

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strength and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

product-1-1

Application
The wedge wire well screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.
Also recommended in the following situations:
• Formation comprised of small or fine particles
• Water wells where gravel packs will be installed
• Thin aquifers, where maximum open area is required
• Small diameter wells
