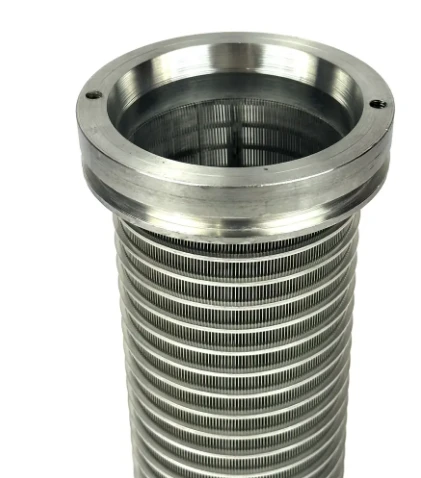

Custom Stainless Steel 304l/316l Material Johnson Vee Type Screen Pipe Wedge Filter Tube

Custom Stainless Steel 304l/316l Material Johnson Vee Type Screen Pipe Wedge Filter Tube

Overview Wedge wire mesh is made of SS "V"shaped and SS "V"shaped, SS "V"shaped and SS rod ,or SS "V"shaped and SS "CONVEX "shaped rod with an unique welding process, with unique characteristics

Send Inquiry

Features

Overview


Wedge Wire Screen
Material
Galvanized Low Carton(LCG) Stainless Steel(304 316 etc)
Wedge Wire
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0
Support Rod
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3
Round Rod(mm):2.5-6.0
Slot Size
0.05,0.08,0.1,0.15,0.2,0.25,0.3.......6.0mm Also Achieved Upon Request
Length
Up To 6 Meters
Diameter
25-1200mm
End Connection
Plain Beveled Ends For Welding Or Threaded Male &Female Coupling(Spiral)
Other Specifications Available Upon Request
Wedge wire mesh is made of SS "V"shaped and SS "V"shaped, SS "V"shaped and SS rod ,or SS "V"shaped and SS "CONVEX "shaped rod with an unique welding process, with unique characteristics
