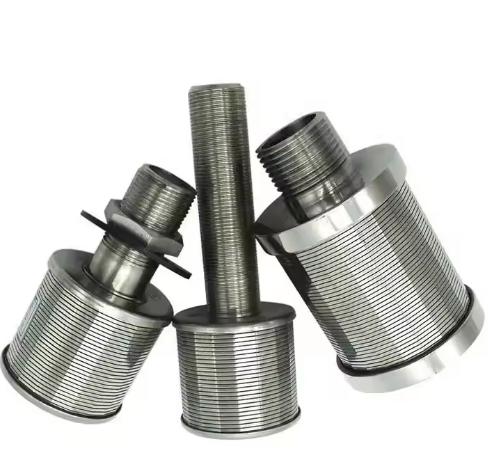

50 Micron Water Treatment Filter Nozzles SS Water Nozzle Strainer Johnson Wedge Wire Screen Pipe Tube

50 Micron Water Treatment Filter Nozzles SS Water Nozzle Strainer Johnson Wedge Wire Screen Pipe Tube

Filter nozzles filter nozzles are an ideal choice based on their combination of high strength, high open area and non-plugging slot design. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration....

Send Inquiry

Features

Filter nozzles
filter nozzles are an ideal choice based on their combination of high strength, high open area and non-plugging slot design. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different
class filtration. Continuous slot design make it high efficiency and long service life.
Material choice:SUS304, 304L, 321, 316L, 2205, 2507, 904L, Hastelloy,Titanium alloy and other special metal materials




Specification for single-ended wedge-shaped nozzles

project
Model
Slot(mm)
Dimensions (mm)
Filter area (mm2), slot 0.2 mm
Material
D
H
L
M
1
SLOT45-1-A
0.2-0.5
45
25
75
M20
280
304,321,316,316L,904L,C-276
2
SLOT45-1-B
0.2-0.5
45
35
85
M20
390
3
SLOT45-1-C
0.2-0.5
45
45
95
M24
500
4
SLOT53-2-A
0.2-0.5
53
45
95
M24
450
5
SLOT53-2-B
0.2-0.5
53
45
95
M32
450
6
SLOT53-2-C
0.2-0.5
53
55
110
M32
550
7
SLOT57-3-A
0.2-0.5
57
35
85
M32
520
8
SLOT57-3-B
0.2-0.5
57
45
95
M32
660
9
SLOT57-3-C
0.2-0.5
57
55
110
M32
530
10
SLOT70-4-A
0.2-0.5
70
45
95
M32
530
11
SLOT70-4-B
0.2-0.5
70
70
120
M32
1000
12
SLOT82-A
0.2-0.5
82
60
120
G11/M42
/
Note:
1. Water wedge line nozzles are equipped with rubber washers, steel washers and stainless steel nuts of the same material.
2. Specifications not listed in the chart are processed and produced according to user requirements.
3. M, NPT, G, PT, Z, threads are available.

Specification for double ended wedge line nozzles
project
Model
Slot(mm)
Dimensions (mm)
Filter area (mm2), slot 0.2 mm
Material
D
H
L
M
1
SLOT45-5-A
0.2-0.5
45
35
According to the command
M25
330
304,321,316,316L,904L,C-276
2
SLOT45-5-B
0.2-0.5
45
45
M25
400
3
SLOT53-6-A
0.2-0.5
53
35
M25
400
4
SLOT53-6-B
0.2-0.5
53
45
M32
680
5
SLOT57-7-A
0.2-0.5
57
40
M32
530
6
SLOT57-7-B
0.2-0.5
57
50
M32
700
Note:
1. L is determined by the thickness of the perforated plate and
the lining glue provided by the user. 2. The water wedge line nozzle is equipped with a rubber washer, a steel washer and a stainless steel nut of the same material.
3. Specifications not listed in the chart are processed and produced according to user requirements.
4. M, NPT, G, PT, Z, threads are available.

Specification for Long Hand Wedge Line Nozzles
project
Model
Slot(mm)
Dimensions (mm)
Filter area (mm2), slot 0.2 mm
Material
D
H
L
M
L1
1
SLOTLN45-11-A
0.2-0.5
45
35
35
M20
According to the command
330
304,321,316,316L,904L,C-276
2
SLOTLN45-11-B
0.2-0.5
45
45
40
M24
400
3
SLOTLN53-12-A
0.2-0.5
53
35
45
M24
510
4
SLOTLN53-12-B
0.2-0.5
53
45
50
M32
640
5
SLOTLN57-13-A
0.2-0.5
57
40
45
M32
630
6
SLOTLN57-13-B
0.2-0.5
57
50
50
M32
780
Note:
1. L is determined by the thickness of the perforated plate and
the lining glue provided by the user.
2. The water wedge line nozzle is equipped with a rubber washer, a steel washer and a stainless steel nut of the same material.
3. Specifications not listed in the chart are processed and produced according to user requirements.
4. M, NPT, G, PT, Z, threads are available.
