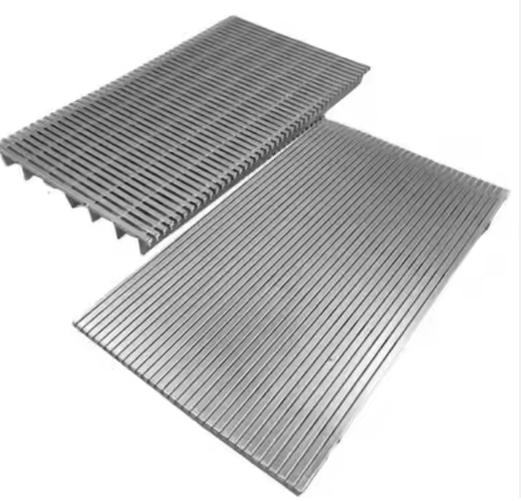

0.5-1.0mm Stainless Steel 304 316L Johnson Wedge Wire Flat Panel Screens For Beer Brewing/water Well Drilling/oil Well Drilling

0.5-1.0mm Stainless Steel 304 316L Johnson Wedge Wire Flat Panel Screens For Beer Brewing/water Well Drilling/oil Well Drilling

Wedge wire screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.Wedge wire screen...

Send Inquiry

Features

Wedge wire screen or profile screen is in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment.Wedge wire screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates. offering great strenght. precision ,long service life.

Wedge Wire Screen
Material
Galvanized Low Carton(LCG) Stainless Steel(304 316 etc)
Wedge Wire
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0
Support Rod
Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3
Round Rod(mm):2.5-6.0
Slot Size
0.05,0.08,0.1,0.15,0.2,0.25,0.3.......6.0mm Also Achieved Upon Request
Length
Up To 6 Meters
Diameter
25-1200mm
End Connection
Plain Beveled Ends For Welding Or Threaded Male &Female Coupling(Spiral)
Other Specifications Available Upon Request

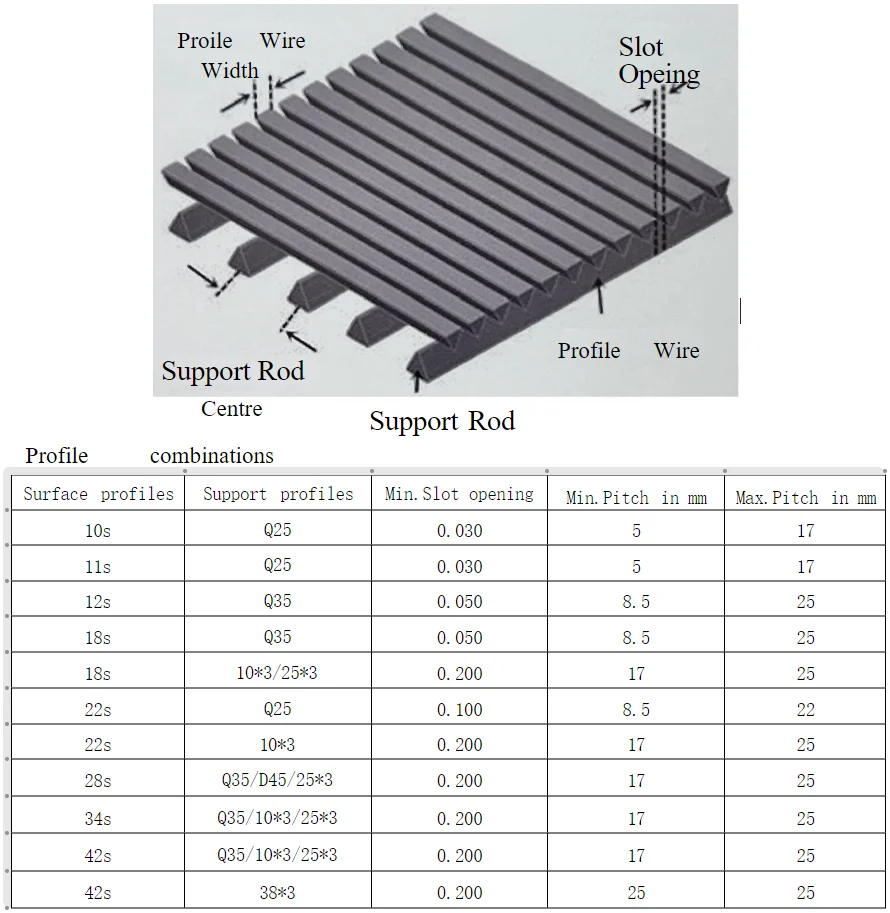

product-1-1


Our Services & Strength

1.OEM Manufacturing welcome: Product, Package... 2. Sample order 3. We will reply to you for your inguiry in 24 hours. 4. after sending, we wiltrack the products for you once every two days, until you get the products. When you gotthe goods, test them, and give me feedback, lf you have any questions about the problem, contact us, we will offerthe solve way for you. 5.Sample testing support. 6.Changing for new if dissatisfaction.
