ISO9001 Stainless Steel 304 Johnson Type Screen /wedge Wire Screen For Water Well Drilling

ISO9001 Stainless Steel 304 Johnson Type Screen /wedge Wire Screen For Water Well Drilling

More details of ISO9001 stainless steel 304 Johnson type screen /wedge wire screen for water well drilling: A wide range of wire and rod shapes make it possible to achieve the optimum balance of strength, open area, abrasion resistance and dewatering/separation efficiency. The V-shaped wire can...

Send Inquiry

Features

More details of ISO9001 stainless steel 304 Johnson type screen /wedge wire screen for water well drilling:



A wide range of wire and rod shapes make it possible to achieve the optimum balance of strength, open area, abrasion resistance and dewatering/separation efficiency.









ISO9001 stainless steel 304 Johnson type screen /wedge wire screen for water well drilling

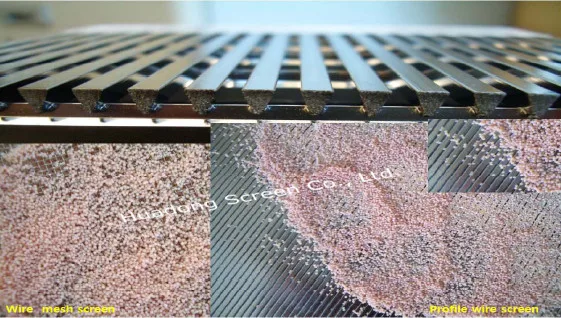

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)





Technical Parameters of ISO9001 stainless steel Johnson well screen with threads connection

And also we can produce the products according to your requirements.



SIZE
(INCH)

O.D
(MM)

SLOT
(INCH)

LENGTH
(M)

COLLAPSE
STRENGTH
(PSI)

TENSILE
WEIGHT
(TON)

WRAPthick*deep
(MM)

RODS
(MM)

4

117

0.040

3

395

6

2.2*3.0

3.8MM/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8MM/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8MM/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8MM/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8MM/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8MM/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8MM/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8MM/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8MM/50





Packing Details:



Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with:

1.Name & identification mark of manufacturer-HuaDong Brand

2. Batch number

3. Date of manufacturer

4. Material

5. Safe heating & application temperature
