Water Well Casing
Beveled(Can be Protected By Plastic Caps or Steel Rings According to Your Requirements) Also We Can Weld Flanges on the Pipe Ends Plain Ends
Features
Product introduction

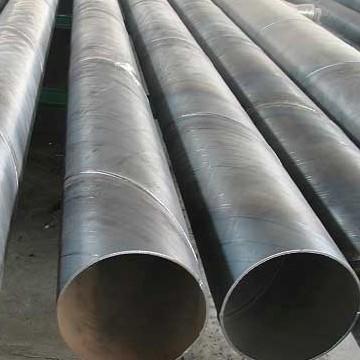

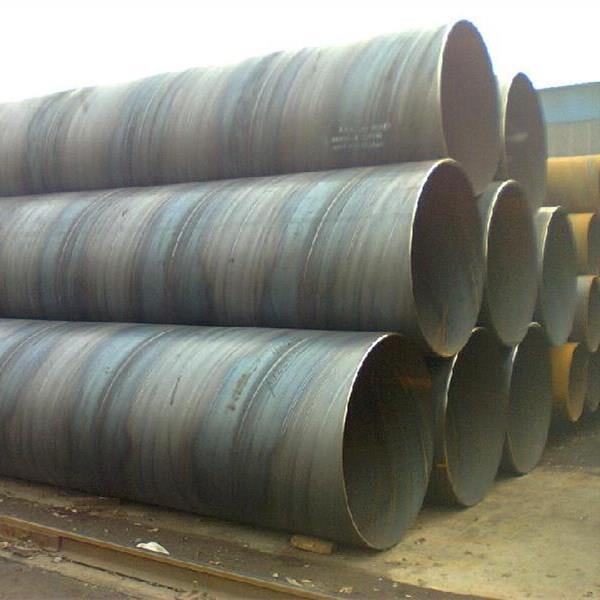

Product Name | Spiral Welded Steel Pipe | ||
Size | OD | 89-3020mm | |
Thickness | 2.75-25mm | ||
Length | Usually 6~12 Meters, 20 Meters Max in theory | ||
Standard | SY/T5037 SY/T5040 GB/T9711 API5L EN10208 ASTM A252 JISA5525 | ||
Material | Chinese Grade | Q235,Q345,S245,S290,S320,S360,S390,S415,S450 | |
Foreign Grade | ASTM | Grade A, Grade B, X42,X46,X52,X56,X60,X65,X70 | |
EN | S185,S235JR,S235JO,E335,S355JR,S355JO,L245, | ||
Ends | Beveled(Can be Protected By Plastic Caps or Steel Rings According to Your Requirements) Also We Can Weld Flanges on the Pipe Ends Plain Ends | ||
Surface | Bared Or Paint With Oil, Bitumen, 1-3 layer PE | ||
Inspection | With Chemical Composition and Mechanical Properties Testing;Hydrostatic Test, Dimensional and Visual Inspection;Also With Nondestructive Inspection | ||
Technique | Hot Rolled and SSAW or DSAW | ||
Mechanical Property
Yield Strength | Wall thickness | Yield strength | Tensile strength | Elongation% | Impact work |
235 | 4-12﹥12-22 | ≥235 | ≥375 | ≥23 | ≥27 |
345 | 4-12﹥12-22 | ≥345 | ≥470 | ≥21 | 27 |
390 | 4-12﹥12-22 | ≥390 | ≥490 | ≥19 | ≥27 |
Package
1.OD≤273MM, package with steel strip
2.OD≥273MM, package in bulk
Usage
1.Water
2.Sewage
3.Gas
4.Stream
5.Combustible Fluids(Petroleum and Gas)
