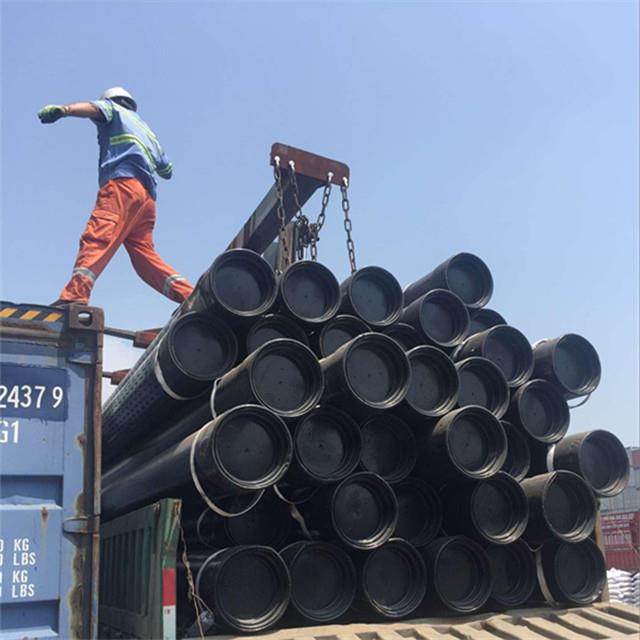

Slotted Casings

Slotted casings are widely used for oil filters, they can filter out 99% of the sand, which greatly reduces the maintenance rate of the tube, and also improve the tube’s strength, integrality and stability of keeping off the sand.
The slotted casings are produced using laser cutting technology, the slot is with high precision, good edge verticality, trimming smooth without glitches and etc.
Meanwhile, the laser incision can make very small cuts with smooth surface and high precision. Although its structure is simple, it is very effective. It has small cuts of 0.1-0.5mm in the tube wall.

Main Technical Date
1.Standard: API 5CT
2.Grade: J55,K55,N80,L80,P110 etc.
3.Outside Diameter: 2 3/8” -20”(60.3mm-508mm)
4.Thickness: Less than 16mm
5.Pipe/Tube Length: R1, R2, R3(According to customers’ actual demands)
6.Pipe/Tube thread: NUE,EUE,BTC,STC,LTC,VAM etc.
7.Slot length: As per customer’s requirement.
8.Slot width: 0.1-4mm(±0.03mm)
9.Slot space: As per customer’s requirement
10.Distrubution types of slots: straight in line pattern, staggered pattern, spiral pattern
11.Slot pattern: straight and keystone as the picture show

Specification
