Stainless Steel Wedge Wire Lateral Screens

Stainless Steel Wedge Wire Lateral Screens

Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Send Inquiry

Features

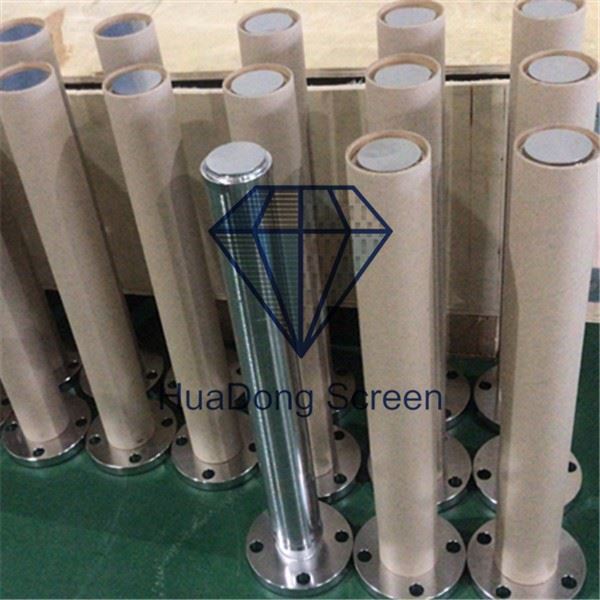

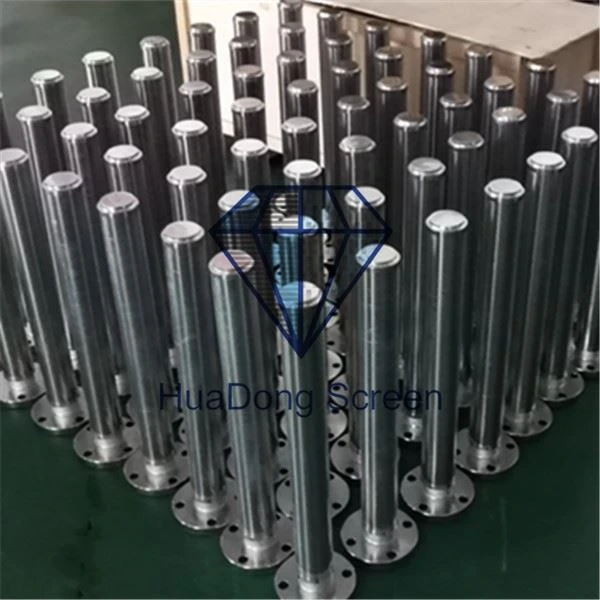

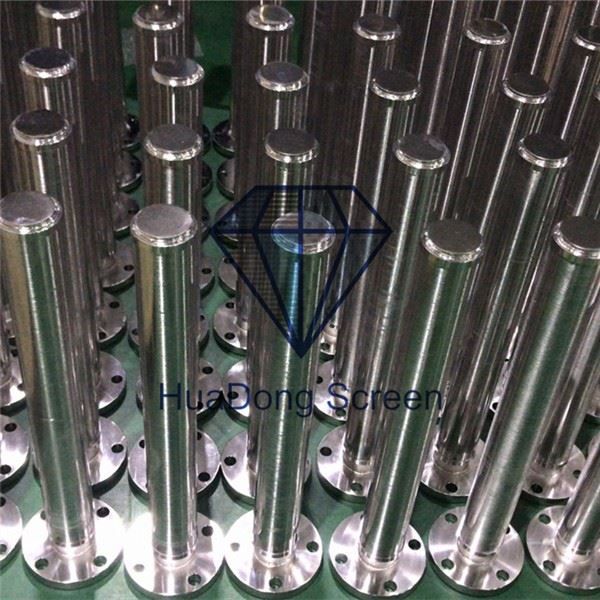

The wedge wire screen lateral has two type: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design make it possible to suit different applications and machines.

Specification of lateral assemblies

Material: stainless steel, hastelloy steel or other alloy steel.
Assemblies end type: threaded type or flange type.
Slot size: 0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm, 1 mm.
Screen lateral diameter: 32 mm, 40 mm, 70 mm, 76 mm, 89 mm.
Vertical hub diameter: 76 mm, 89 mm, 108 mm, 133 mm, 159 mm, 219 mm.

Features of wedge wire lateral assemblies

High open area.
High filtering and screening performance.
Various ending types.
Temperature resistance.
Corrosion and rust resistance.
Non-clogging.
Easy to install and replace.
Low maintenance cost.
Durable and long service life.
Suit different application

Application of wedge wire lateral assemblies

Wedge wire lateral assemblies is widely used in under draining applications for filtering and screening, additional, it is widely used in various machines for screening.
