Stainless Steel Water Cups

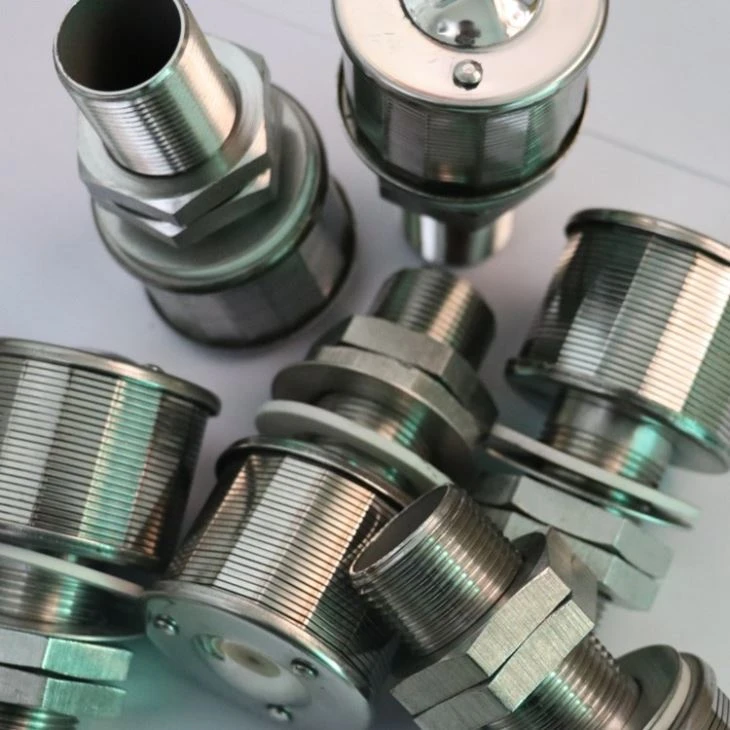

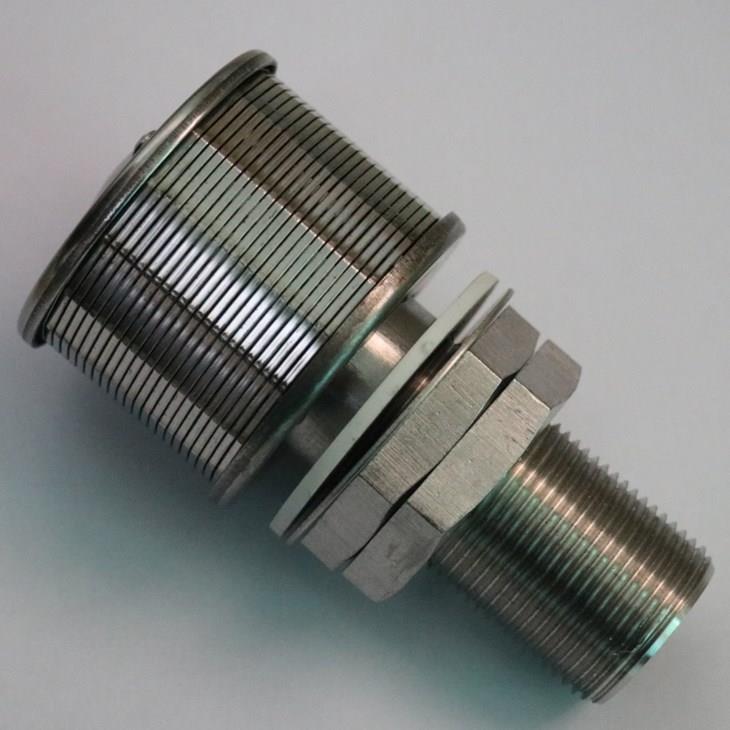

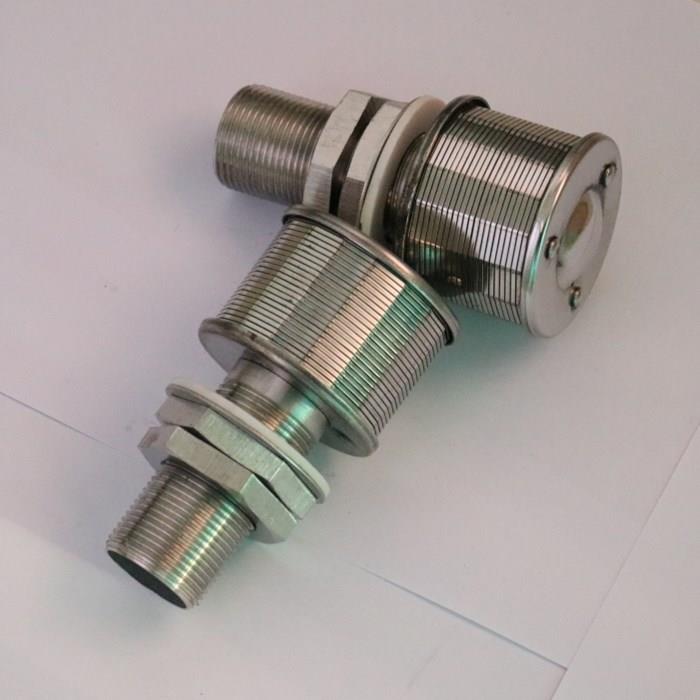

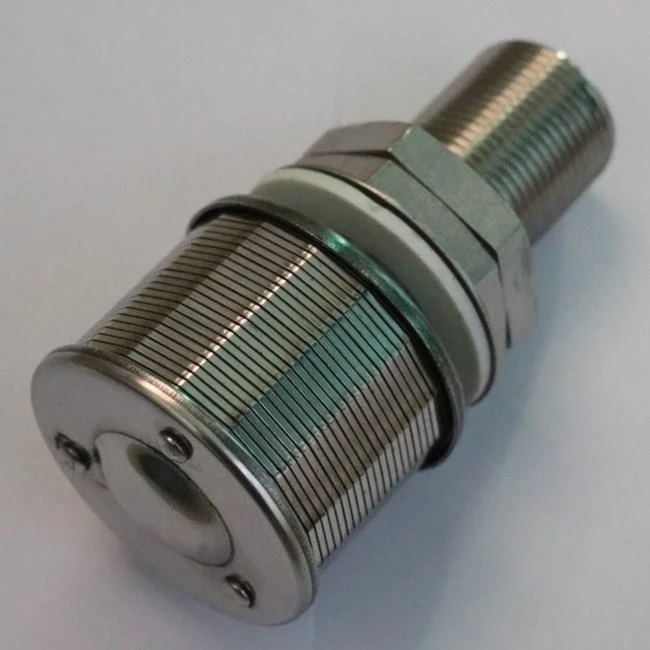

Huadong wedge wire screen filter nozzles are manufactured in accordance to customer flow requirements in almost any stainless steel. They can be designed for filtration or treatment media.
Features
Huadong wedge wire screen filter nozzles are manufactured in accordance to customer flow requirements in almost any stainless steel. They can be designed for filtration or treatment media. Because of their non-clogging design wedge wire nozzles are effective in a wide range of water treatment and other industrial applications. Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters. Nozzles can also be used as collectors at the bottom of the vessels by installing a number of nozzles uniformly across a tray plate. The combination of high open area and a non-plugging slot design makes this nozzle/collector application popular.
Wedge Wire Screen Nozzle Technical Specification
No. | Type(mm) | OD(mm) | ID(mm) | Support wire number | Filter direction |
1 | HTP25.4 | 25.4 | 18.6 | 12 | FOTI |
2 | HTP33 | 33 | 24 | 8 | FOTI |
3 | HTP37 | 37 | 28 | 8 | FOTI |
4 | HTP40 | 40 | 31 | 8/10 | FOTI/FITO |
5 | HTP45 | 45 | 36 | 10/12 | FOTI/FITO |
6 | HTP48 | 48 | 38 | 12 | FOTI/FITO |
7 | HTP60 | 60 | 51 | 12 | FOTI/FITO |
8 | HTP70 | 70 | 61 | 12/18 | FOTI/FITO |
9 | HTP85 | 85 | 76 | 18 | FOTI/FITO |
10 | HTP110 | 110 | 101 | 24 | FOTI/FITO |
11 | HTP120 | 120 | 111 | 24 | FOTI/FITO |
