Conical Slotted Tube
Conical slotted tube used in drill pipe when oil well drilling, the function is filtering the drilling fluid and protecting the MWDS instrument. During the drilling fluid circulation, the impurities are filtered out by the screen.
Features
Product Description
Conical slotted tube used in drill pipe when oil well drilling, the function is filtering the drilling fluid and protecting the MWDS instrument. During the drilling fluid circulation, the impurities are filtered out by the screen. Then the clean drilling fluid could prevent the impurities clogging bit port.

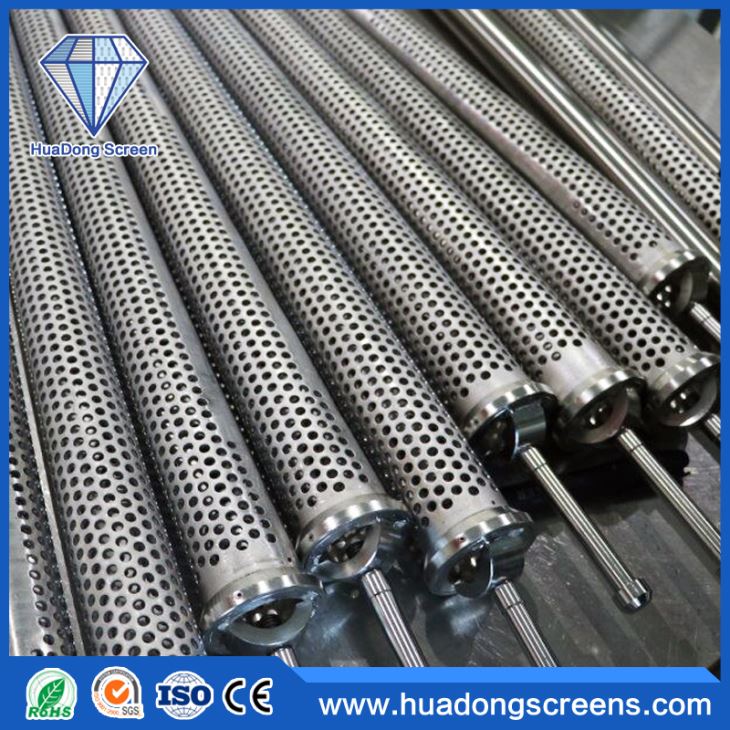

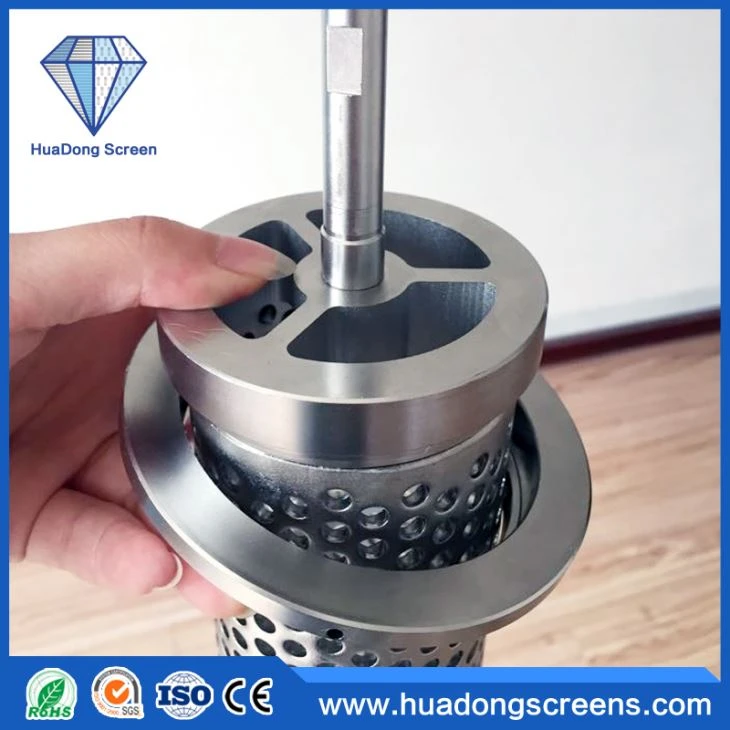

The Filter consists of stainless steel sheet with filter slot, cut and folded under a truncated cone of predetermined angle,a perforated bottom,a removable Seating ring and the extractor handle.The high-flow rod type retrievable screens are capable of handling up to 800 GPM or more in 4 1/2" and 5" sizes. The 3 1/2" and 4" can handle up to 300 GPM.
Use
Conical slotted tube are an integral part of any directional drilling application. Automatic drillers for oilfield drilling operations need to be protected properly for cost- effective projects.Line of MWD Tools include many different lengths and types of drill pipe screens for the protection of your expensive and sensitive measurement while drilling equipment. Drill Pipe Screens are an important part of the directional drilling tool string. They filter out large particles in the mud protecting the MWD tools below.

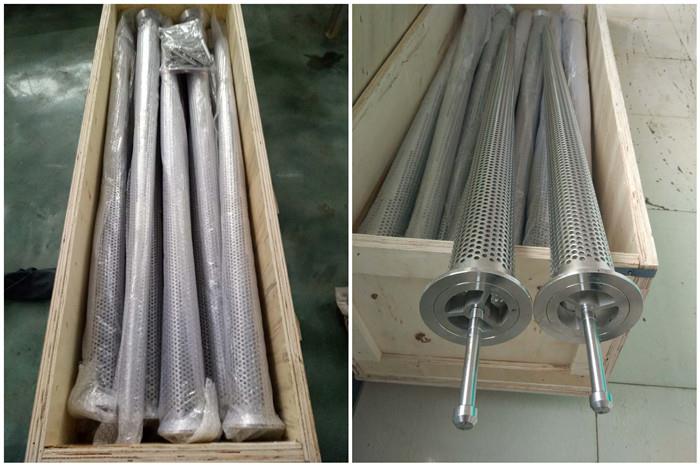

Packing detail | Disposable package (bubble wrapping) |
Plastic cloth | |
Wooden case | |
Delivery Detail: Shipped in 15 days after payment | |
FEATURES | Screen Cap: Open Area allows easy materials removal. |
Screen Cap Extension: Controls turbulance over spear point for increased wear. | |
Spear Point: Connection makes flush with bevel to reduce cavitation for increased wear resistance. | |
Material Pattern: Staging of whole pattern increases wash resistance. | |
Flanges: Engravings that are easy to read. |
