Water Well Use AISI 304 Or 316 High Strength Open Area 20slot 40slot Gravel Filter Wedge Wire Water Well Casing Screen

Water Well Use AISI 304 Or 316 High Strength Open Area 20slot 40slot Gravel Filter Wedge Wire Water Well Casing Screen

Overview Product Overview water well casing screen V wire wrapped strainer consist of V-shape profile wire and the longitudinal support rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. Screen sections are usually twenty feet long. Most...

Send Inquiry

Features

Overview

Product Overview
water well casing screen
V wire wrapped strainer consist of V-shape profile wire and the longitudinal support rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
Screen sections are usually twenty feet long. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often lead to accelerated corrosion. The distance between the surface profiles is controlled very accurately, as it forms the V slot through which the filtrate flows.
FEATURES AT A GLANCE
The whole manufacturing process can be monitored by Third Party Inspection Company (BV, SGS, Intertek )and representative
appointed by buyer.The screens will be arranged the Pre-shipment Inspection if required.
product-1-1
product-1-1
Thread coupling
product-1-1
Flange end
product-1-1

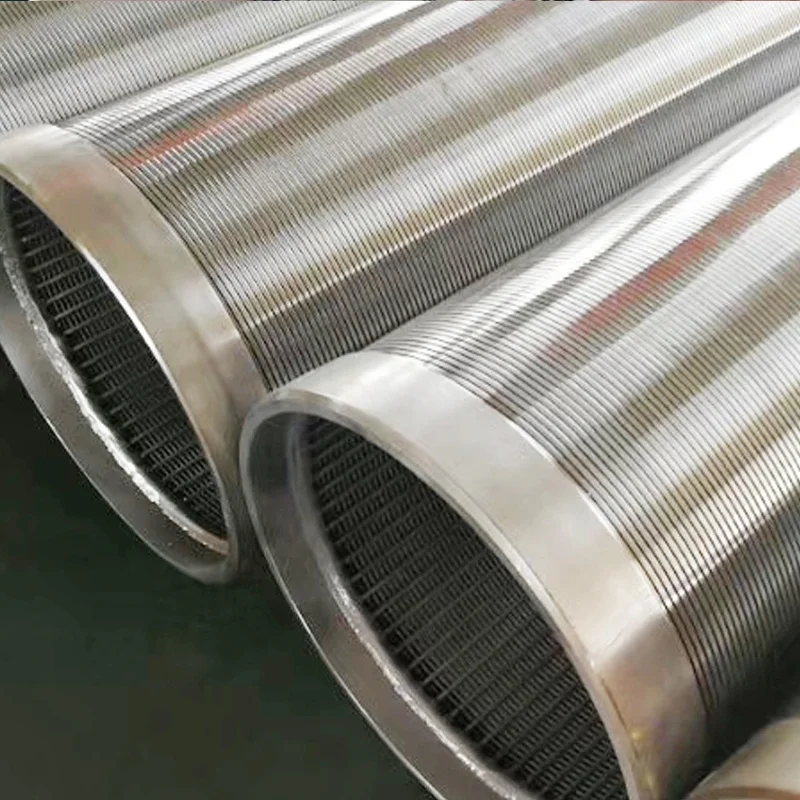

Welding ring

PRODUCT SPECIFICATIONS
Size
(inch)
OD
(mm)
Slot size
(inch)
Length
(m)
Collpase strength
(psi)
Tensile strength
(ton)
Wire size
(mm)
Rod
(mm)
4
114.3
0.040
3
395
6
2.2*3.0
3.8mm/22
4
114.3
0.040
3
395
6
2.2*3.0
3.8mm/22
6
168.3
0.040
3
252
8
2.3*3.5
3.8mm/22
8
219.1
0.010
3
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.020
3
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.040
3
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.010
3
206
11
3.0*5.0
3.8mm/50
10
273.1
0.020
3
191
11
3.0*5.0
3.8mm/50
10
273.1
0.040
3
167
11
3.0*5.0
3.8mm/50
PRODUCT CONFIGURATION
product-1-1
Depth well
product-1-1
Medium well
product-1-1
Shallow well
SALES AND SERVICE NETWORK
product-1-1
Successful Project
product-1-1
Project in Thailand
product-1-1
Project in India
product-1-1
Project in Russia
SIMILAR PRODUCTS
product-1-1
product-1-1
product-1-1
FAQ
1.What the diameter of well strainer do you need?Standard diameter:2inch 4inch 6inch 8inch 10inch 12inch ect,our factory can make the diamater of 25-1200mm
2.Would you like to tell me the specification of V wire?Engineer recemand:1.5*2mm 2*3mm 2.2*3.5mm 3*5mm 3.2*6mm, It's up to you at last.
3.Pls tell me the slot size,the size usually is 0.1-15mm.
4.I hope you can tell me the depth of well and which aspect do you plan to be used in?
5.How many meters do you need?the more you want,the price will be cheaper.
Our engineer will recommend you the most suitable specification according our 25 years experience.
