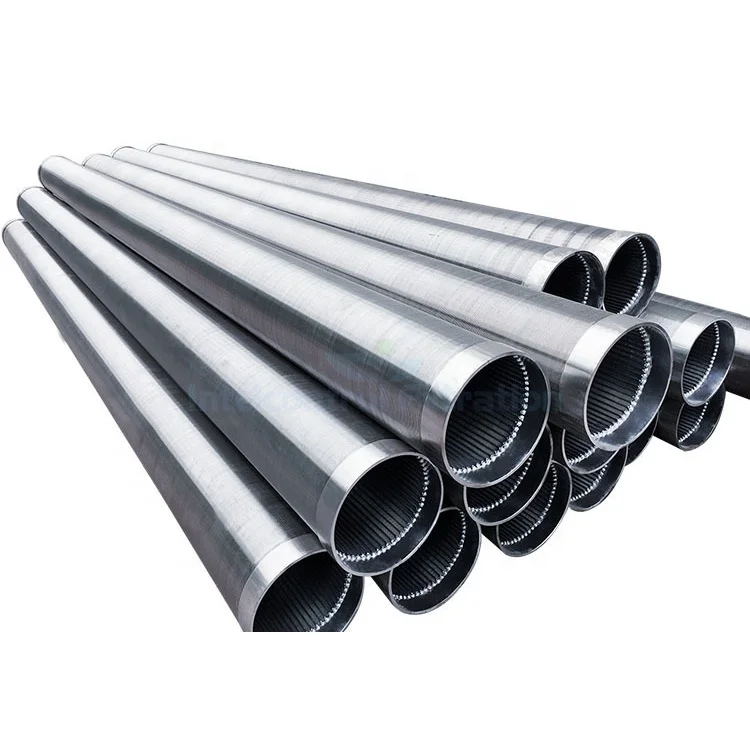

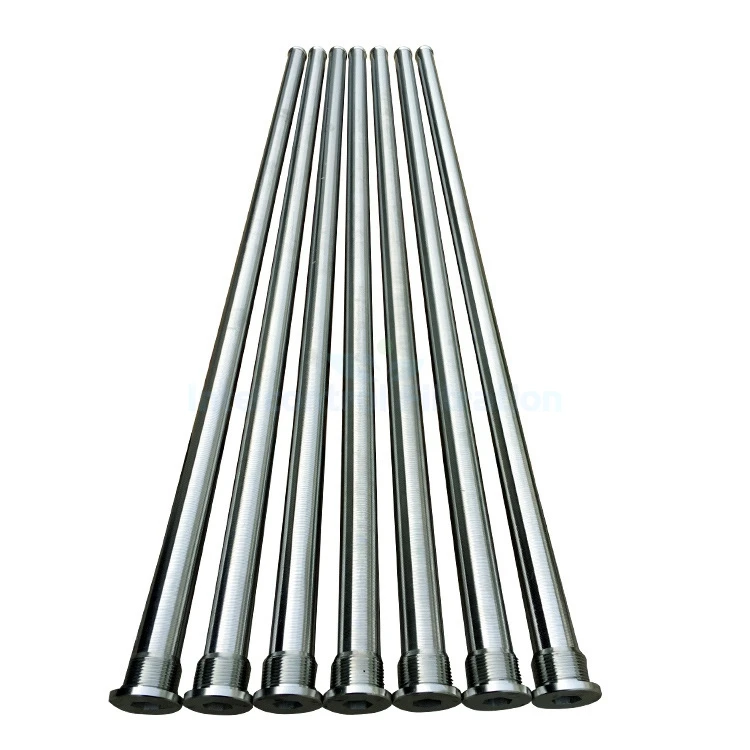

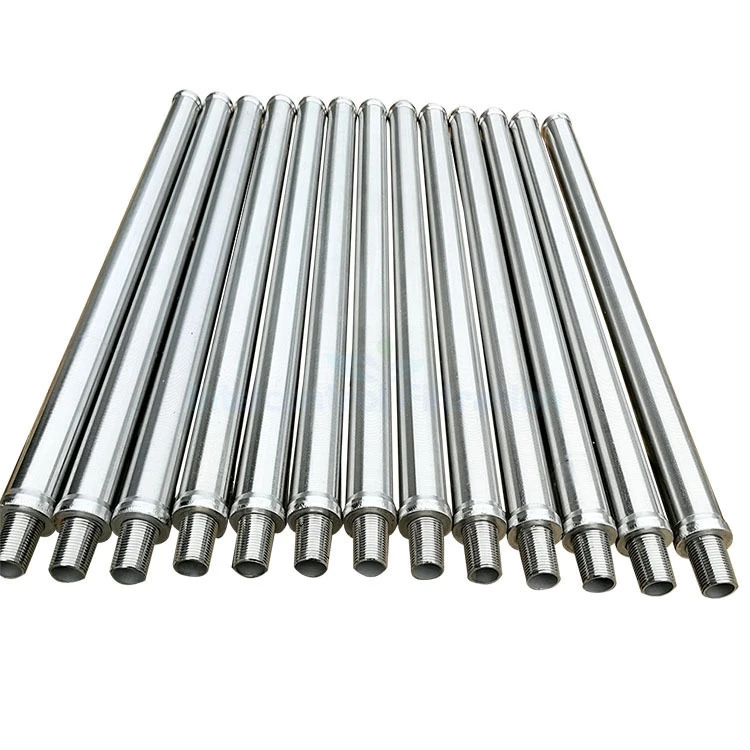

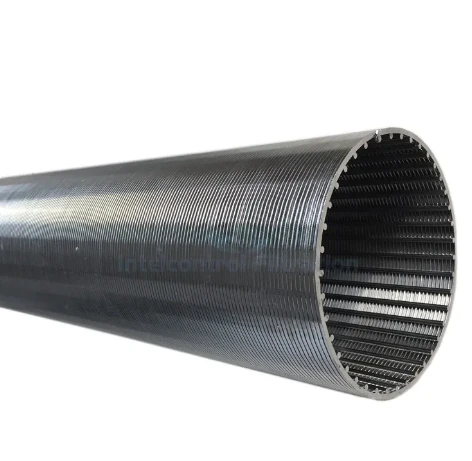

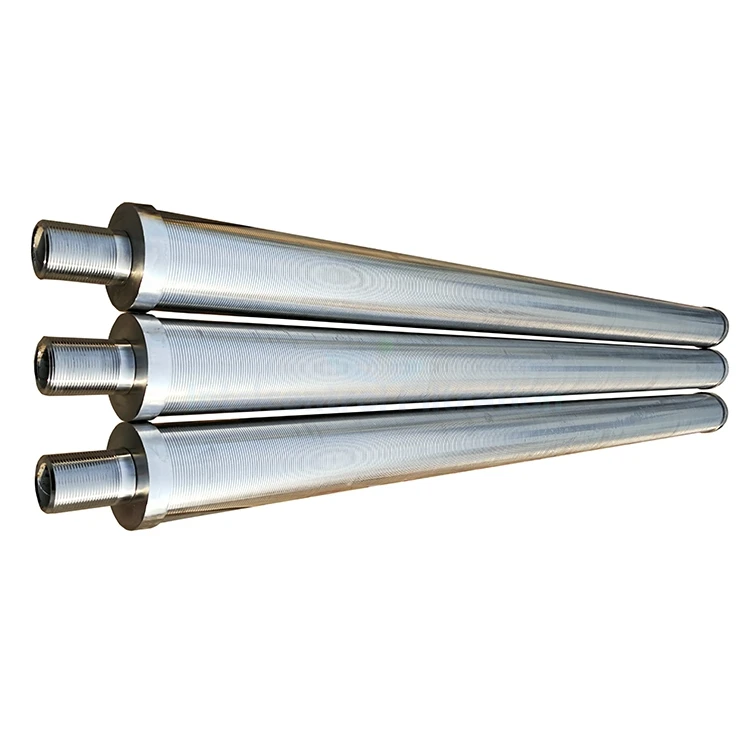

Good In Filtration And Fluidity Wedge Wire Johnson Screen Filter Tube Stainless Steel Wire Mesh Filter For Water Well

*Johnson Screen Specification/Wedge wire filter pipe*
Material	SS 304/316/316L,Galvanized low carton.
Slot	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also can be customized as your request
End connecter	Plain beveled end / flanged / threaded
OD of pipe	25mm -- 1200mm
Wedge Wire (mm)	Width : 1.50 1.80 2.30 3.00 3.30 3.70
Wedge Wire (mm)	Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm)	Width : 2.30 3.00 3.30 3.70
	Height : 2.70 3.60 4.70 5.60 6.30
	Round : 2.50mm -- 6.0mm
*Note: Other specifications can be customized according to your requirement*

Advantages

1.MAX FLOW RATE

When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens Nine times higher than slotted casing.

2.NON-CLOGGING SLOT

Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.

3.ADJUSTABLE GAP

Different users, using different filtration equipment and filter media, have different requirements for the wire gap of the internal wire-wound screen.Since this screen is continuously welded on a special equipment, the gap between the stainless steel trapezoidal wires can be adjusted. In this way, the needs of different users can be met without increasing the cost.

4.CORROSION RESISTANCE

For neutral water, acidic water, alkaline water, regenerant caustic soda, hydrochloric acid, sulfuric acid, salt, etc., as long as these materials are reasonably selected, various types of filtration equipment can be operated economically and safely.
