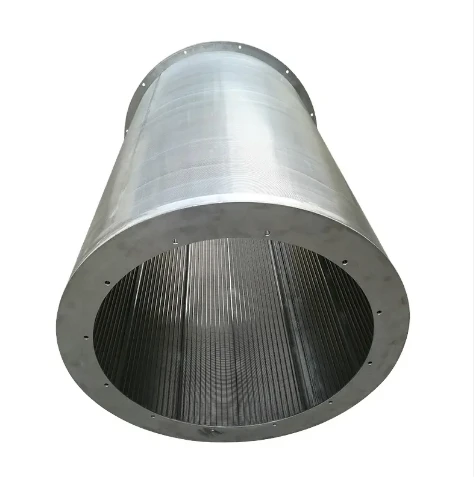

Stainless Steel Wedge Wire Filter Screen Basket Rotary Drum Filter For Koi Pond

Stainless Steel Wedge Wire Filter Screen Basket Rotary Drum Filter For Koi Pond

Stainless stee wedge wire screen rotary drum filter for Koi Pon Stainless stee wedge wire screen rotary drum filter for Koi Pond is used for mechanical filtration. It can separate solids, suspended substances(including feces, food waste and other organic water) over 30μm from water. The...

Send Inquiry

Features

Stainless stee wedge wire screen rotary drum filter for Koi Pon



Stainless stee wedge wire screen rotary drum filter for Koi Pond is used for mechanical filtration. It can separate solids, suspended substances(including feces, food waste and other organic water) over 30μm from water. The particles are filtered as the water flow through the sieve. The rinsing system washes the wastes away from the sieve automatically and keeps the drum running efficiently.

Specifications

product-721-302

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

According to request and the actual flange and strengthen bar

Normal ID

176mm, 200mm, 230mm, 255mm. According to request

Normal Length

600mm, 602mm, According to request

Normal Slot

0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.

Slot Direction

Radial Direction

Wedge Wire

0.75x1.5

1x2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

2x3

2x4

3x5

3x6



2x4

3x5

3x6

5x6

3x5

3x6

5x6



End Finishing

Flange, Metal Ring, etc

Note

Customized According To Requirement

product-750-616product-750-534product-750-606product-750-530product-750-555product-750-560

Packaging & Shipping

product-750-620product-750-449
