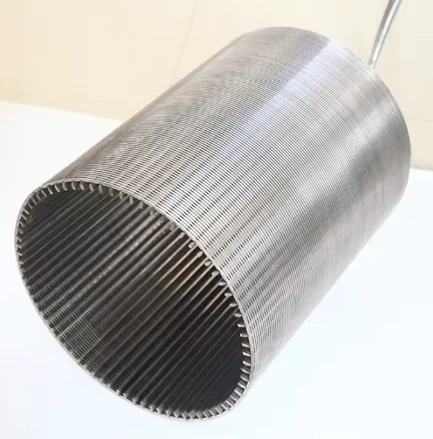

Stainless Steel Screen Water Well Screen Pipe Ss316 Wedge Wire Intake Screen

Wedge Wire Screen

Material

Galvanized Low Carton(LCG) Stainless Steel(304 316 etc)

Wedge Wire

Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0

Support Rod

Width(mm):1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3
Round Rod(mm):2.5-6.0

Slot Size

0.05,0.08,0.1,0.15,0.2,0.25,0.3.......6.0mm Also Achieved Upon Request

Length

Up To 6 Meters

Diameter

25-1200mm

End Connection

Plain Beveled Ends For Welding Or Threaded Male &Female Coupling(Spiral)

Other Specifications Available Upon Request
