Stainless Steel Continuous Slot Screen Pipes For Water Well
Product details Stainless steel continuous slot screen pipes for water well Product Description The NEW continuous slot screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a...
Features
Product details
Stainless steel continuous slot screen pipes for water well
Product Description
The NEW continuous slot screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time,
water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Technical parameters
Specification
|
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
|
4 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
|
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
|
6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
|
8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
|
10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
|
10 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |

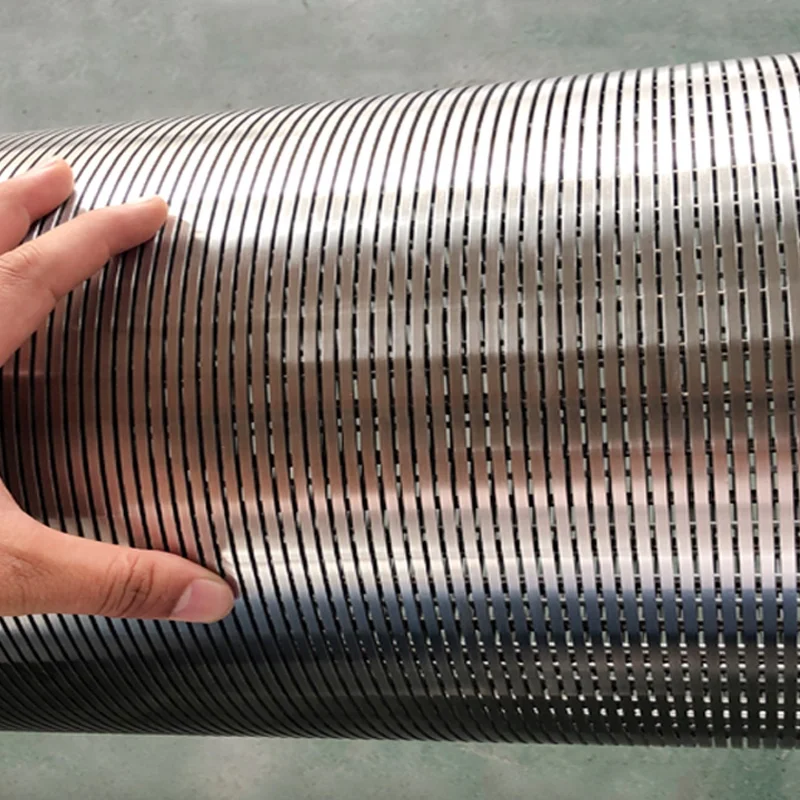

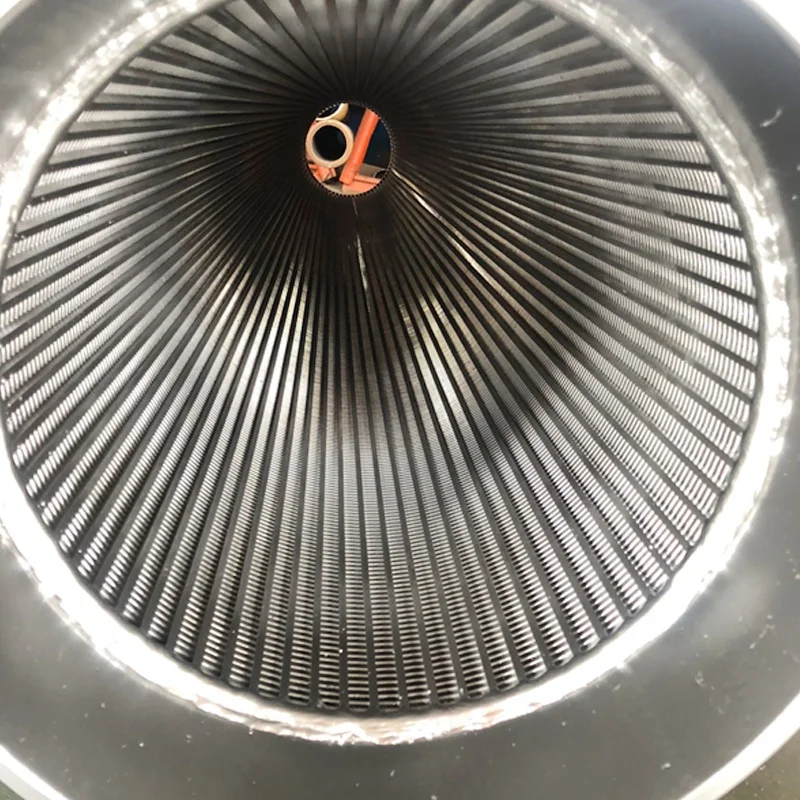

Product Display
Packaging & Shipping
Single with bubble bag and then in wooden case(fumigation certificate).
Each case is clearly marked with:
Name & identification mark of manufacturer-HuaDong Brand
Batch number
Date of manufacture
Material
Safe heating & application temperature
FAQ
If you wana the price of v wire screen, pls allow me to know the questions as follow:
1.What the diameter of well strainer do you need?Standard diameter:2inch 4inch 6inch 8inch 10inch 12inch ect,our factory can make the diamater of 25-1200mm
2.Would you like to tell me the size of V wire?Engineer recemand:1.5*2mm 2*3mm 2.2*3.5mm 3*5mm 3.2*6mm, It's up to you at last.
3.Pls tell me the slot size,the size usually is 0.1-6.0mm.
4.I hope you can tell me the depth of well and which aspect do you plan to be used in?
5.How many meters do you need?
Our engineer will recommend you the most suitable specification according our 20 years experience.
