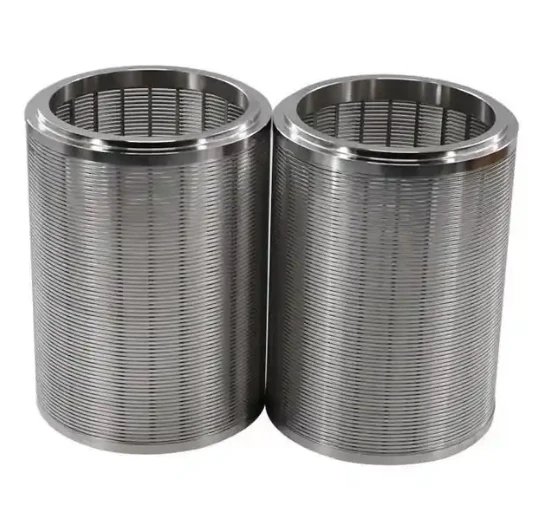

Stainless Steel 316 Wedge Wire Tube Johnson Pipe Filter

Stainless Steel 316 Wedge Wire Tube Johnson Pipe Filter Products Description Product Features *Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging. *High-precision slot sizes: precise slot...

Send Inquiry

Features

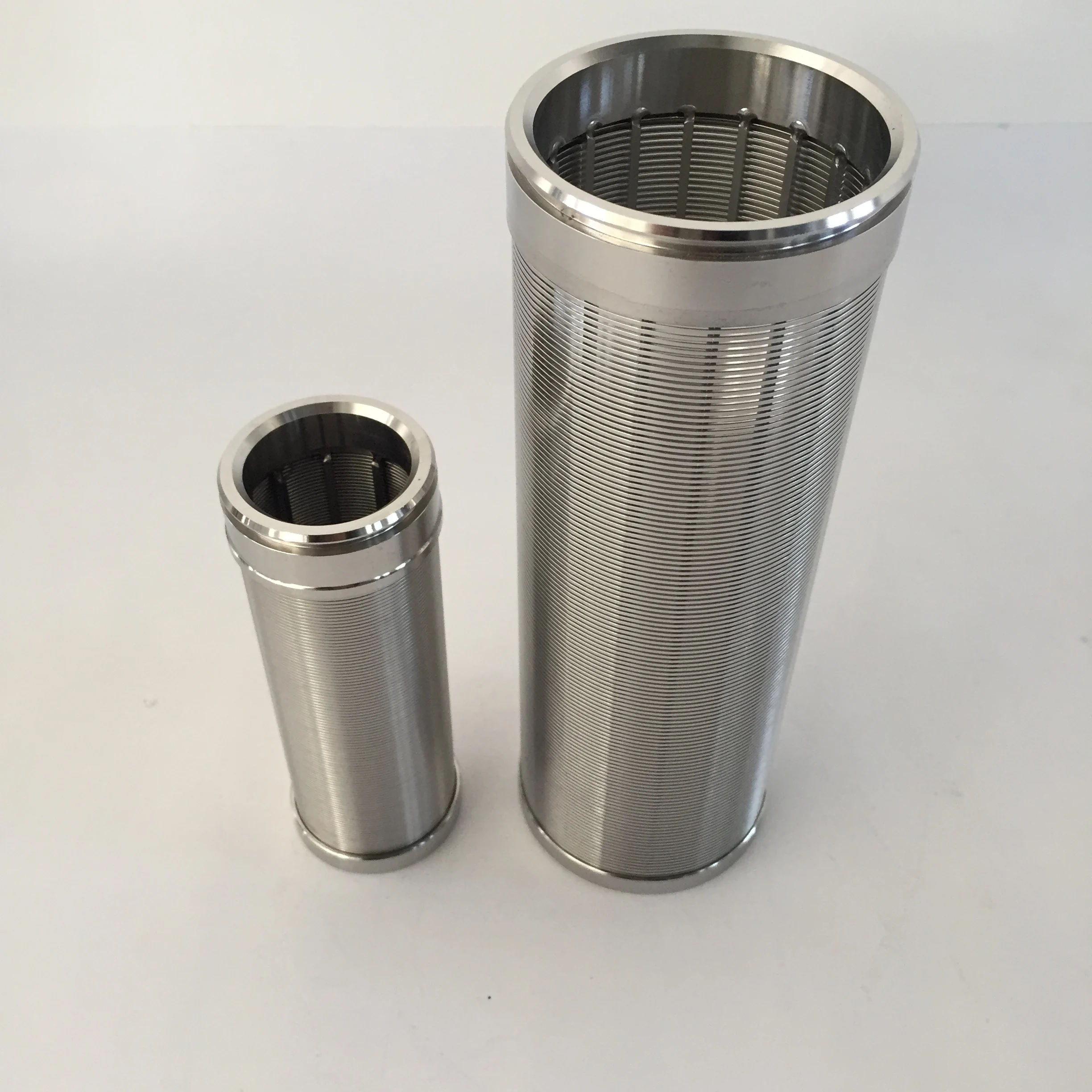

Stainless Steel 316 Wedge Wire Tube Johnson Pipe Filter

Products Description

Material	Stainless steel 304 or 316
OD	19mm-2000mm
ID	13mm-1981mm
Length	Up to 6000 mm
Slot	20 micron to 3000 micron
Wedge wire	0.5x1.5,0.75x1.5,1x2,1.52,2x3,24,3x5
Support rod	1.5x2.5,2x3,2x4,3x5,3x6,3x10,4x7,5x6,5x8
End finishing	Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc

Product Features

*Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.

*High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.

*Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.

*Low pressure-drop.

* Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.

*High efficiency: continuous slot opening.
* Large flow rate: “v” shaped profile wire ensures a uninterrupted flow.

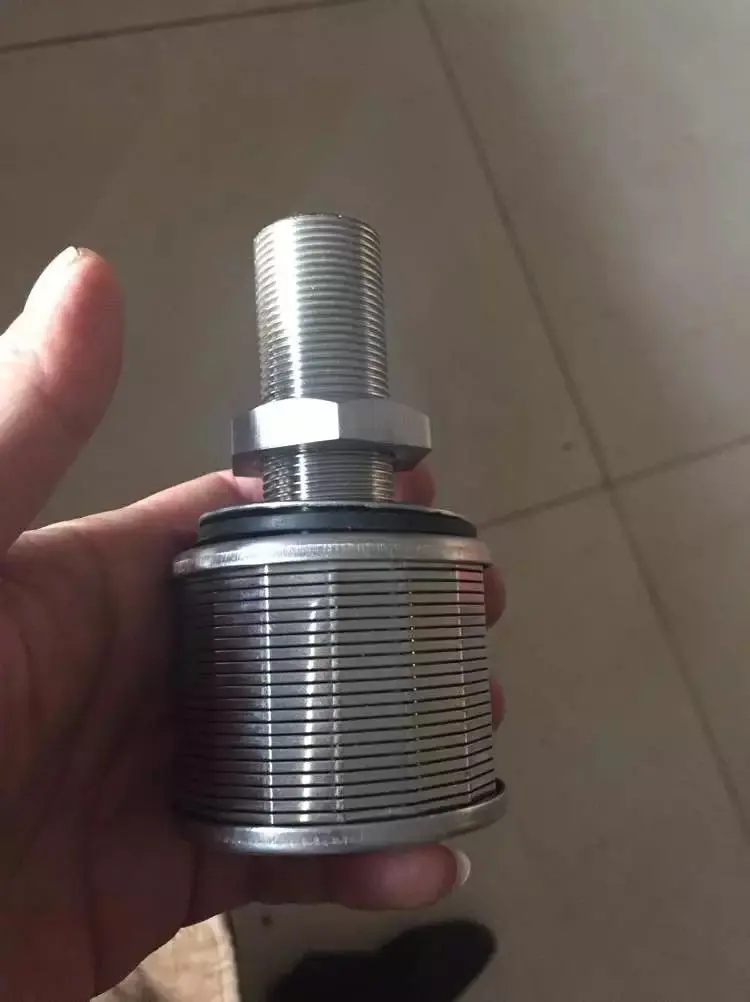

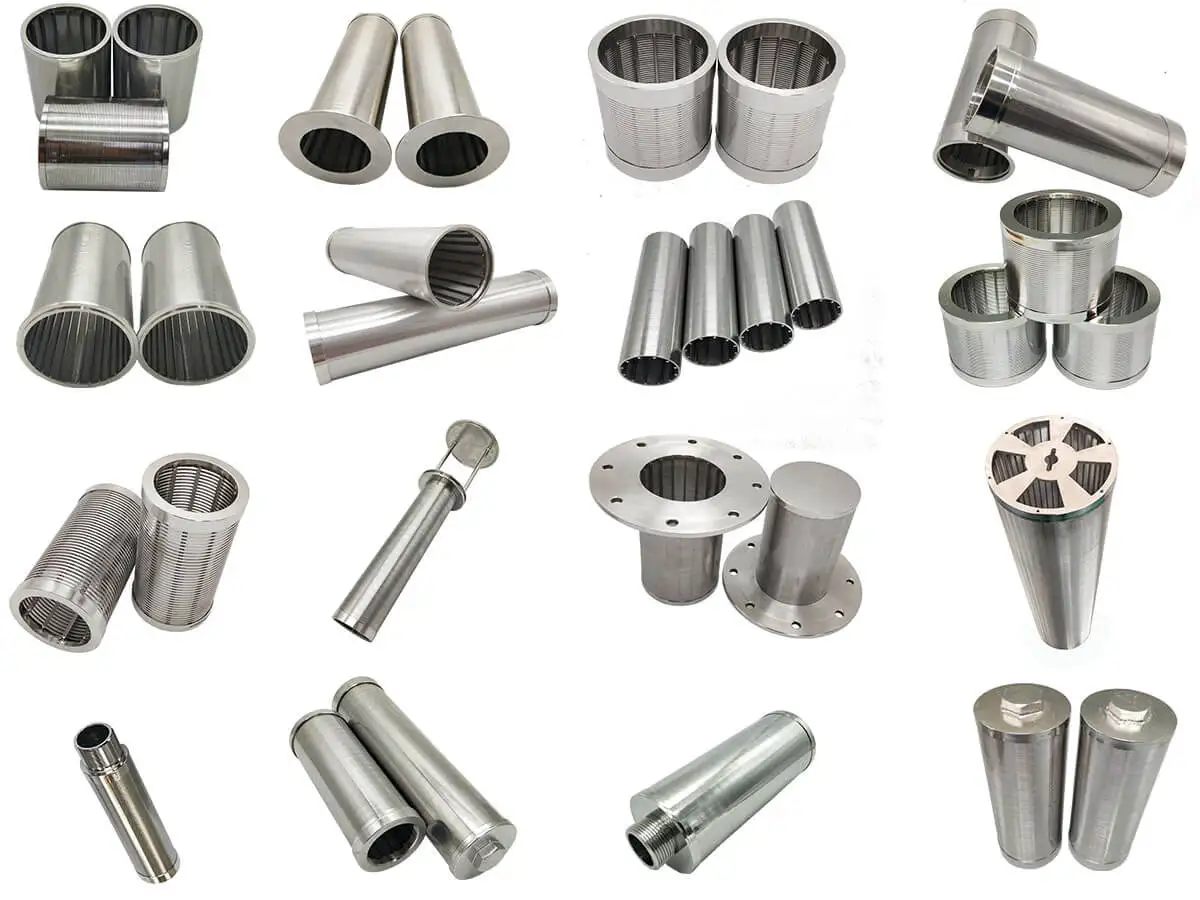

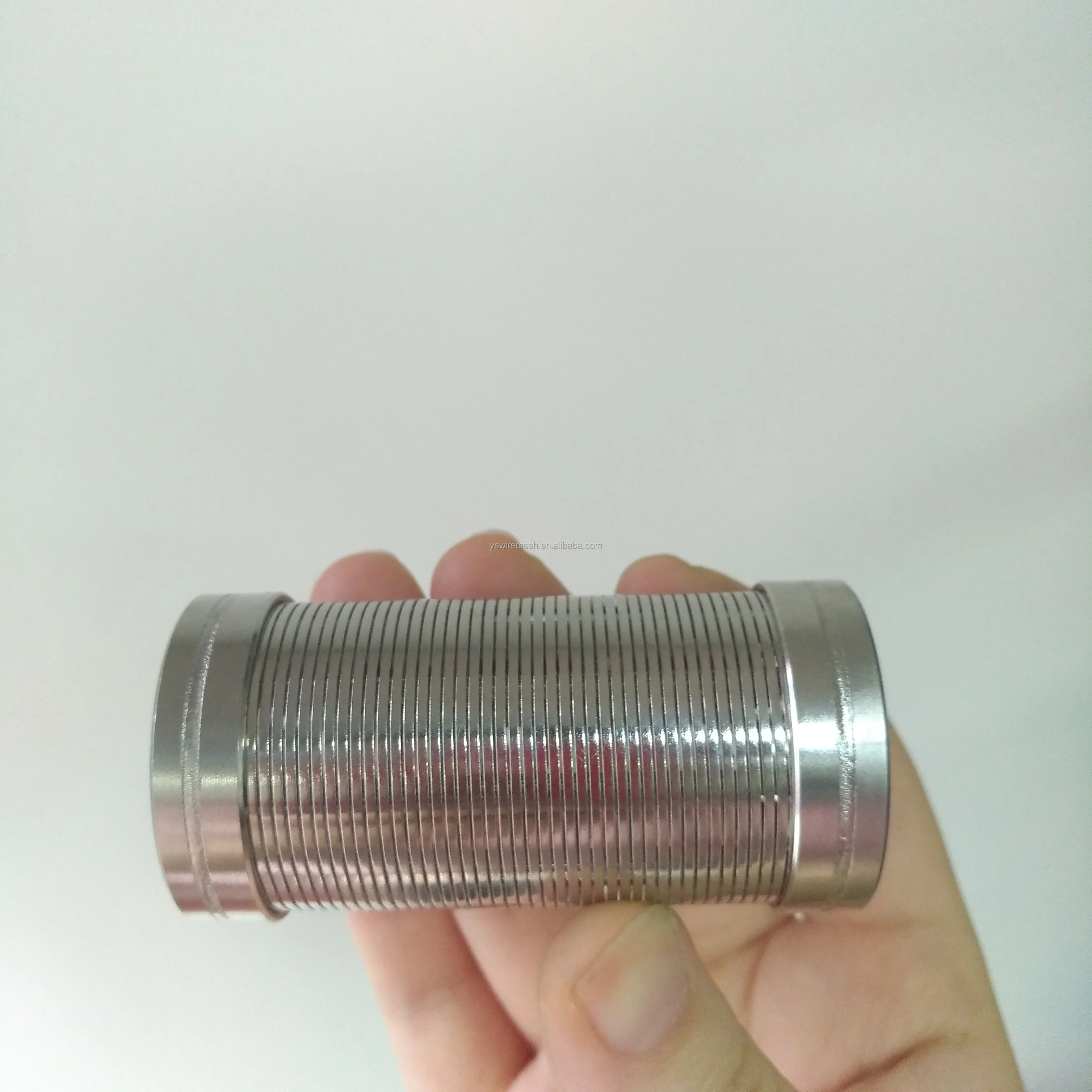

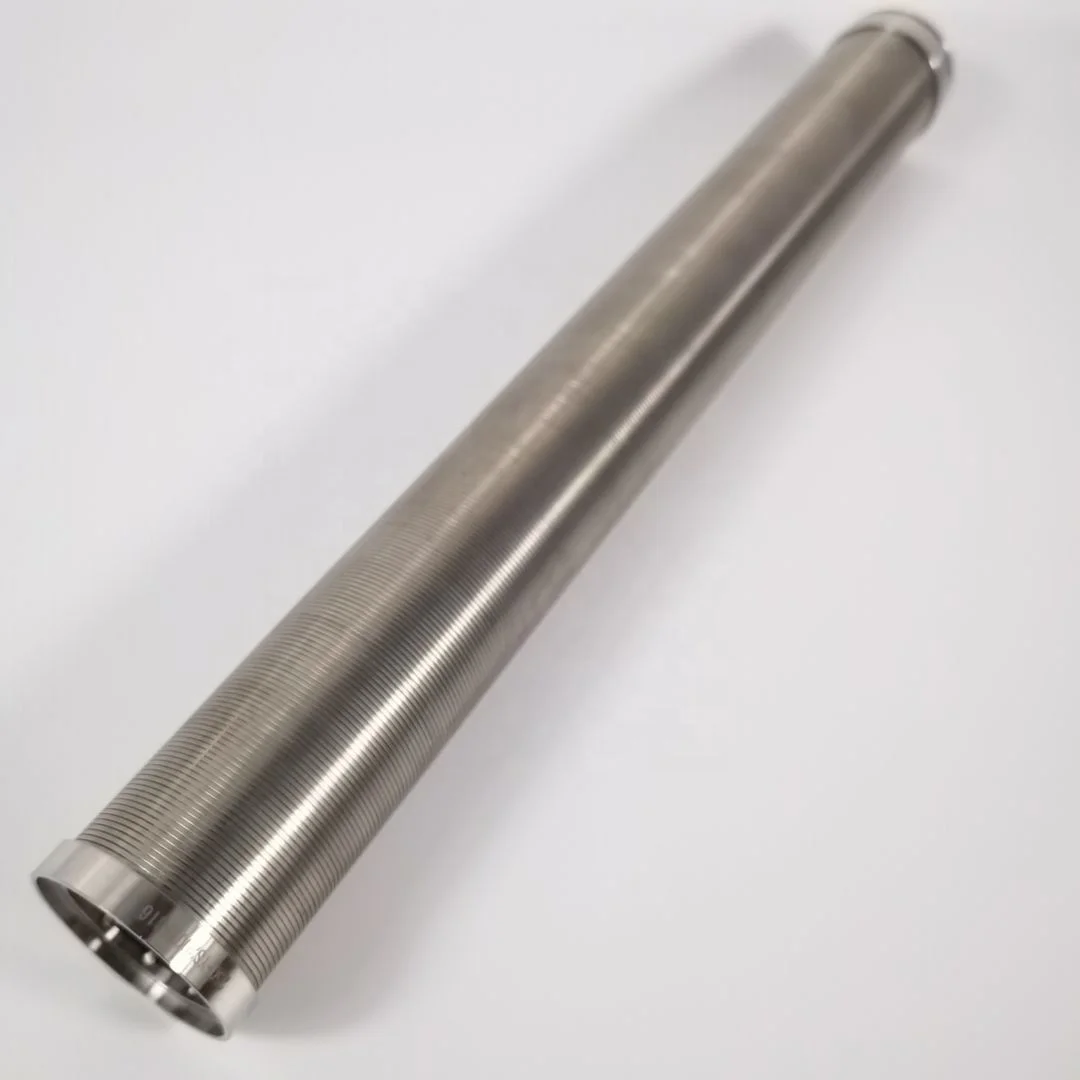

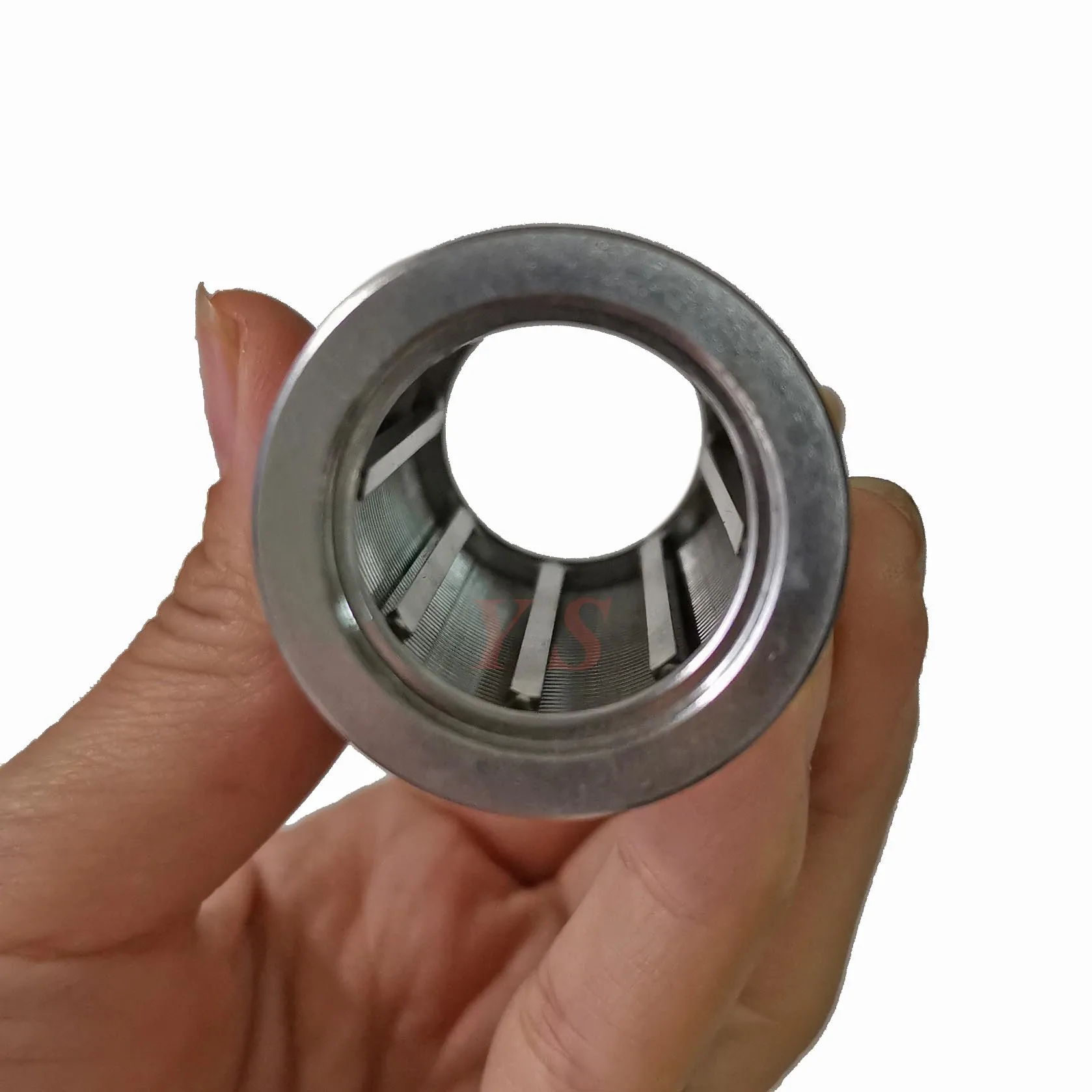

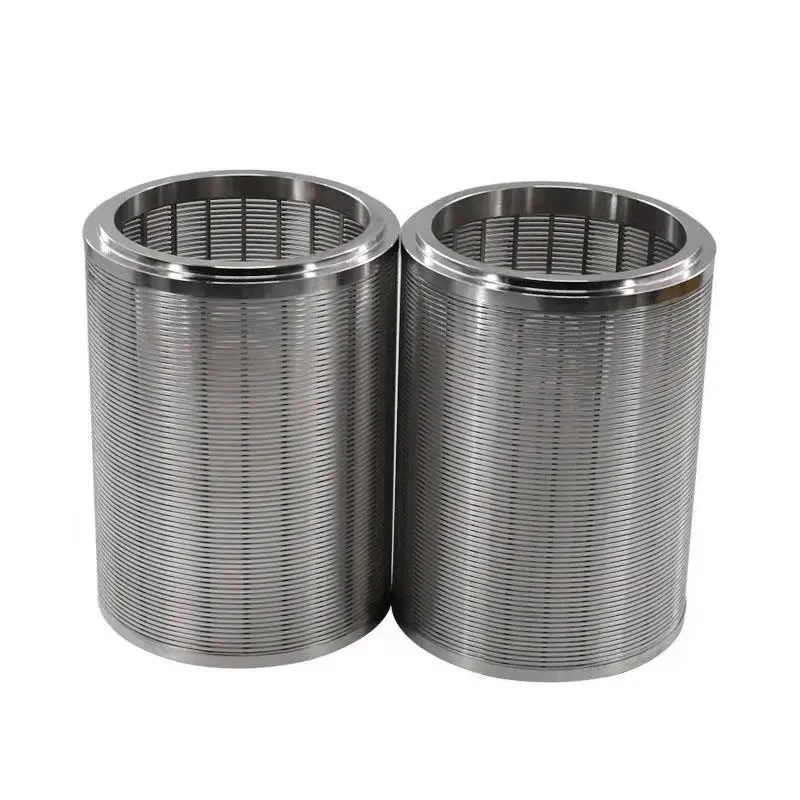

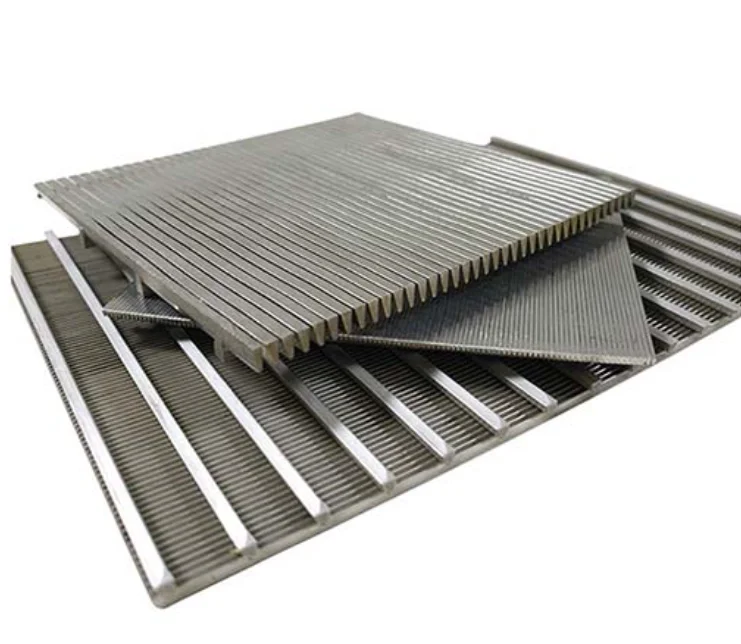

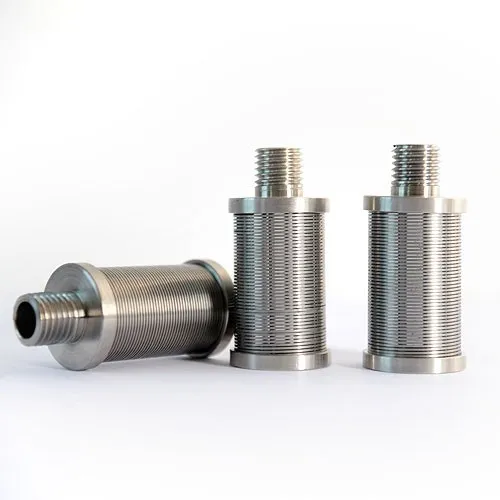

Various Types

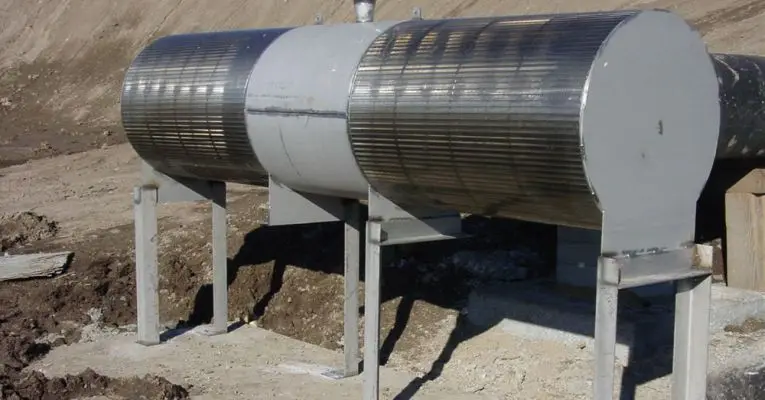

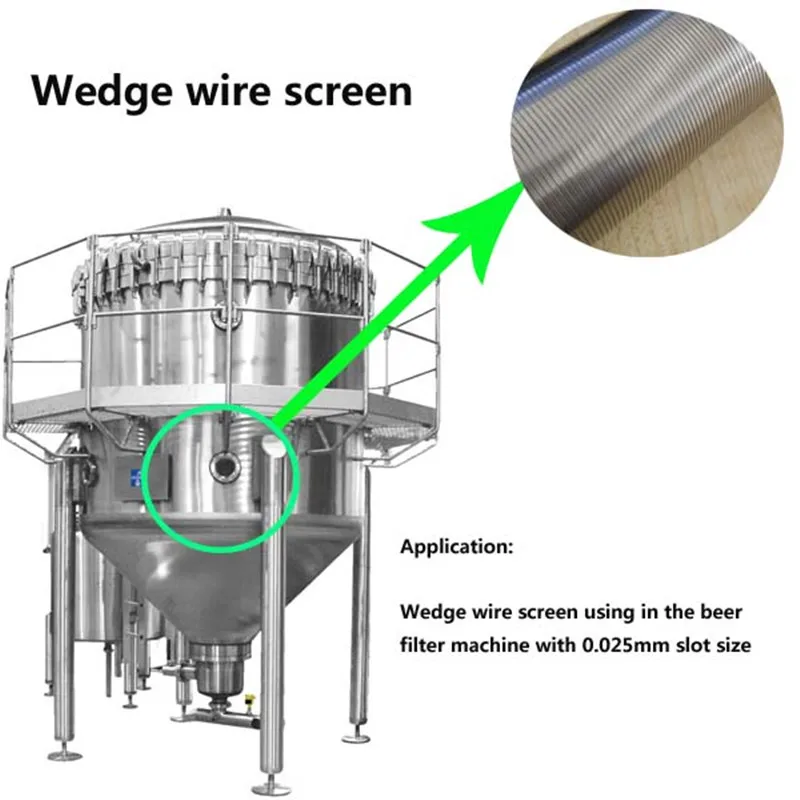

Product Applications

The wedge wire filters are widely used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.
