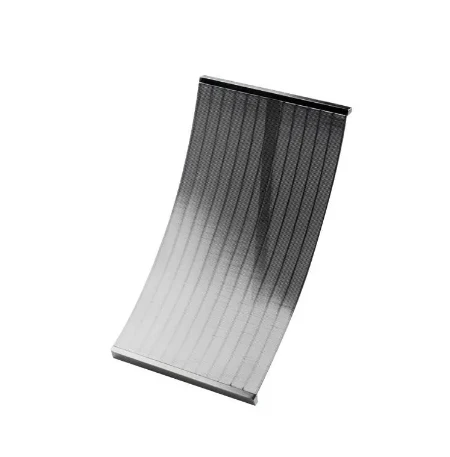

Stainless Steel 304 316L Sieve Bend S Customized High Quality Johnson Screen

Stainless Steel 304 316L Sieve Bend S Customized High Quality Johnson Screen

Product Description WHAT IS CURVED SIEVE BEND Sieve Bend Screens also known as side hill screens, parabolic screens, run down creens, gravity screens and DSC Screen can be custom designed to separate solids from liquids in various appli-cations including food processing, pulp and paper, waste...

Send Inquiry

Features

Product Description
product-1-1

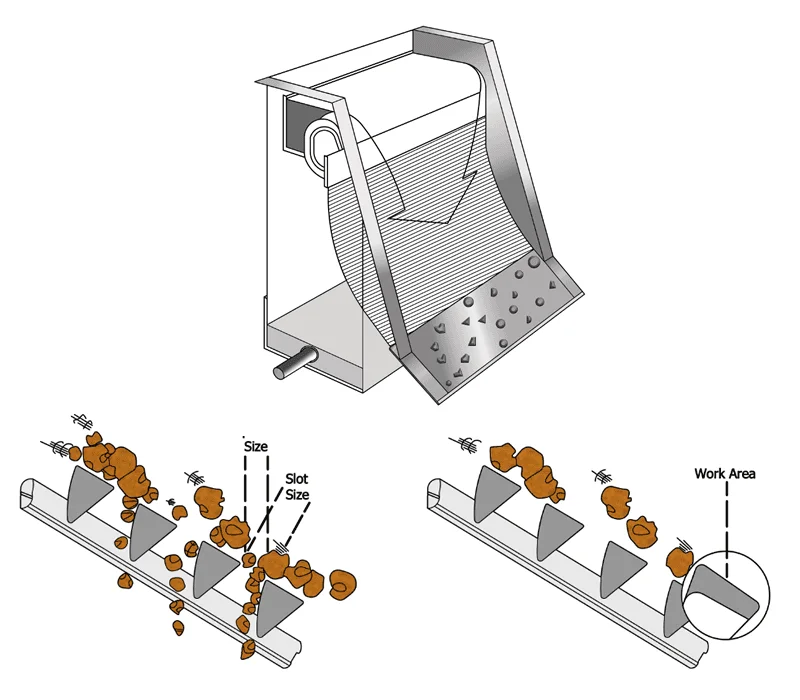

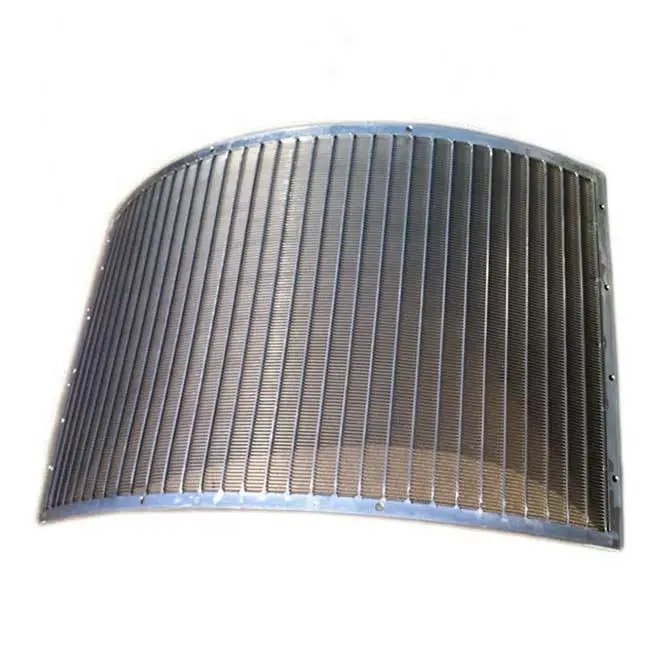

WHAT IS CURVED SIEVE BEND
Sieve Bend Screens also known as side hill screens, parabolic screens, run down creens, gravity screens and DSC Screen can be custom designed to separate solids from liquids in various appli-cations including food processing, pulp and paper, waste water clean up, surface water intakes, corn wet milling, coal preparation, and gold recovery.
Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.
Anping County Guande Wire Mesh Co., Ltd. Manufacture premium quality Wedge Wire Sieve Bend Screens.

Specification
Material
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Key word
Stainless Johnson welded wedge wire DSM sieve bend screen for static sieve
Size
Up to 6000*6000mm
Slot Range
20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes
Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
Wedge Wire
0.5x1.5
0.75x1.5
1x2
1.5x2
2x3
2x4
3x5
Support Rod
1.5x2.5
2x3
1.5x2.5
2x3
1.5x2.5
2x3
1.8x2.5
2x3
2x3
2x4
3x5
3x6
3x104x6
2x4
3x5
3x6
3x10
4x6
5x6
3x5
3x6
3x10
4x6
5x6
5x8
End Finishing
With the frame, without any frame, according to request.
Note
Customized According To Requirement
Details Images
product-1-1
product-1-1
TECHNICAL DETAILS :
* Slot size 0.15 mm to 10 mm
* Length 0.2 mtr - 6 mtr.
* Material - SS 304/316/316 L or LCG or as per Customer Requirement
* End fittings - as per customer requirement.
product-1-1

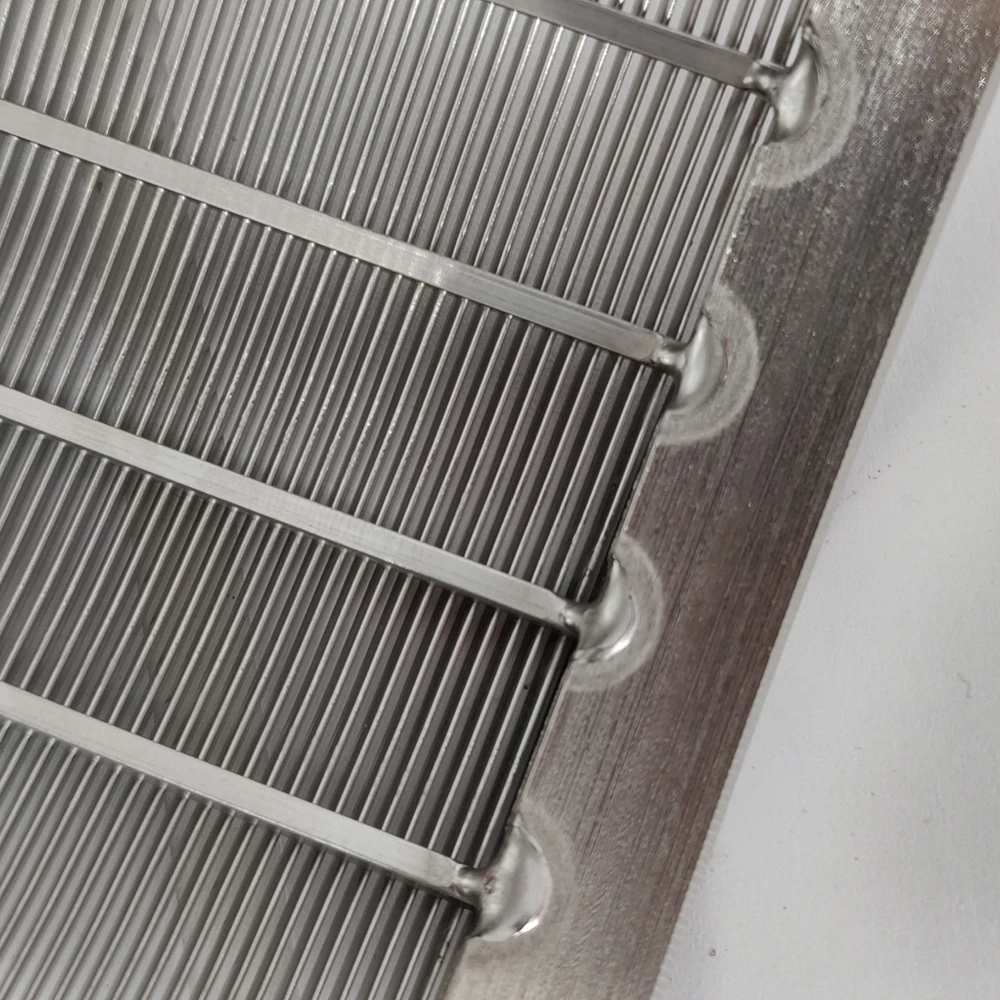

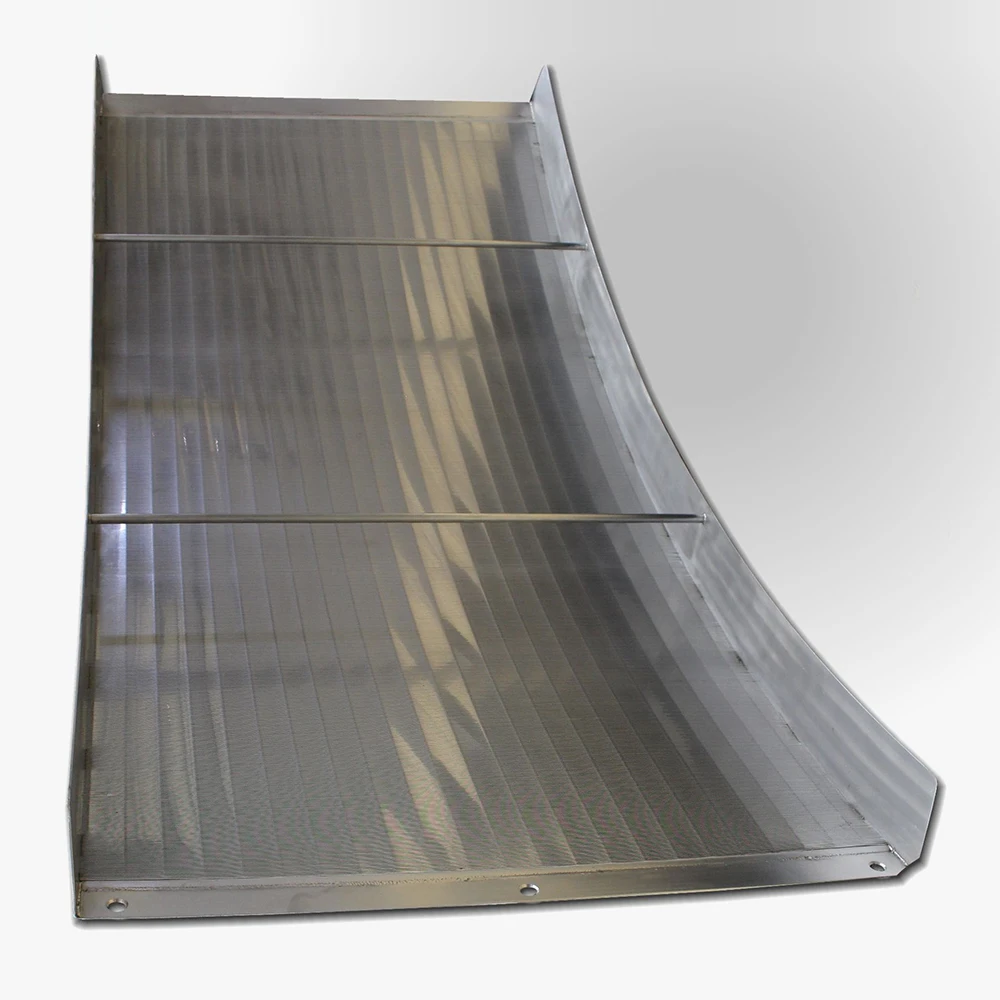

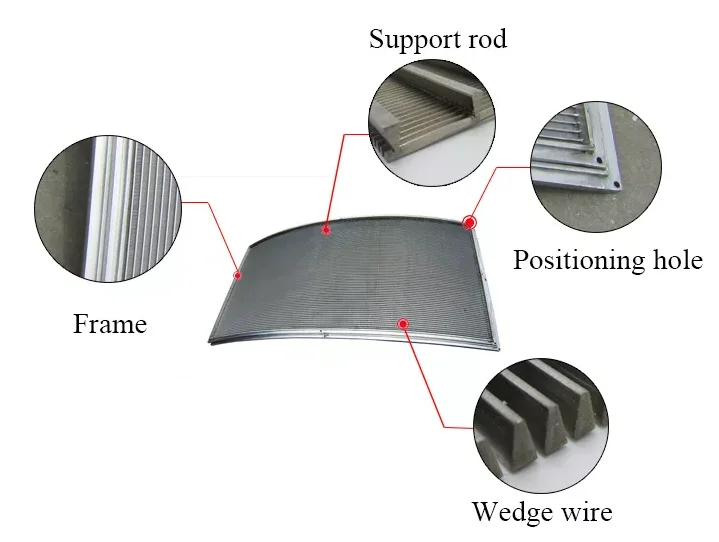

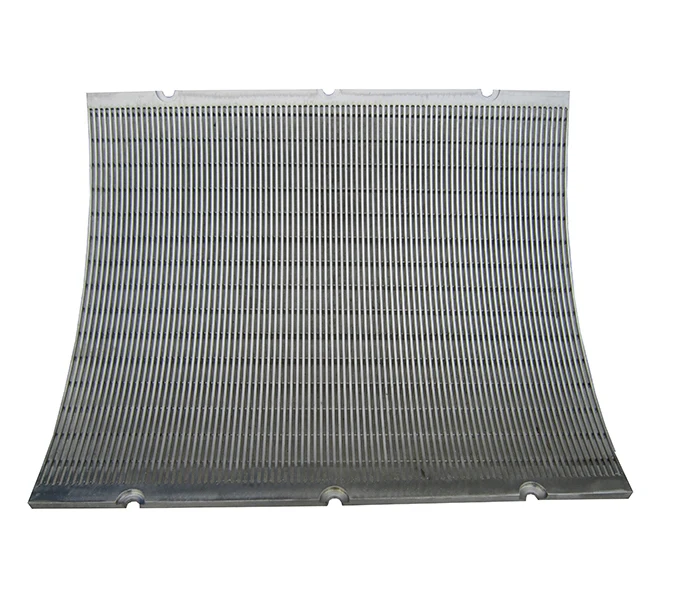

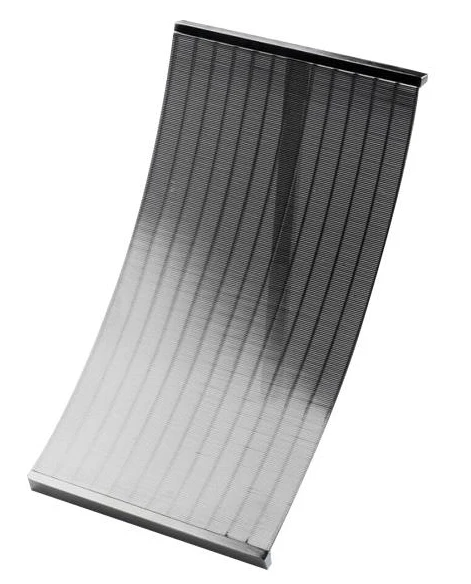

At Anping County Guande Wire Mesh Co., Ltd. our high quality sieve bend screens consist of a concave curved profile wire screen mounted in a frame with the screen openings either perpendicular or parallel to the flow. We can supply both complete Wedge Wire sieve bend units and replacement Wedge Wire sieve bend screens to suit your existing unit. For special applications, we can offer wedge wire screens made from Stainless Steel (201, 202,304,304L, 316,316L) duplex & super duplex stainless steels.
product-1-1
product-1-1
product-1-1
product-1-1
product-1-1
product-1-1
product-1-1
product-1-1
Packaging & Shipping
product-1-1
The common packing:
1. 30 m/roll in PVC bag.
2. 2-8 rolls per carton.
3.water proof bags outside.
4.package belt strengthen.
The common shipping:
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
Why Choose Us
product-1-1
product-1-1
product-1-1
product-1-1
