Stainless Steel 304/316 0.75mm Slot Johnson Well Screen Tube/wedge Wire Filter

Stainless Steel 304/316 0.75mm Slot Johnson Well Screen Tube/wedge Wire Filter

Stainless steel 304/316 0.75mm slot Johnson well screen tube Stainless steel 304/316 0.75mm slot Johnson well screen tube consist of V-shape profile wire and the longitudinal support rods.the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight....

Send Inquiry

Features



Stainless steel 304/316 0.75mm slot Johnson well screen tube



Stainless steel 304/316 0.75mm slot Johnson well screen tube consist of V-shape profile wire and the longitudinal support rods.the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.



Stainless steel 304/316 0.75mm slot Johnson well screen tube/wedge wire filter

Stainless steel 304/316 0.75mm slot Johnson well screen tube/wedge wire filter





Stainless steel 304/316 0.75mm slot Johnson well screen tube

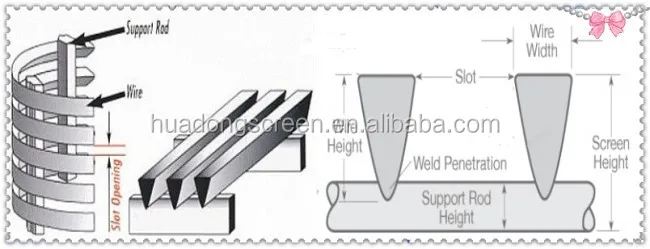

Stainless steel 304/316 0.75mm slot Johnson well screen tube Vee-Wire Profile wires range in widths from 0.020in.(0.508mm)to 0.195in.(4.953)and heights ranging from 0.040 in. (1.016 mm) to 0.363 in. (9.220 mm). Other wire shapes (Tri-Wire, Iso-Wire, Iso-Grizzly Wire, Grizzly-Wire, and more) also available.

Stainless steel 304/316 0.75mm slot Johnson well screen tube/wedge wire filter



Common Johnson Screens Shaped Support Rods



Johnson Screens shaped support rods range in widths from 0.029 in. (0.737 mm) to 0.151 in. (3.835 mm) and heights ranging from 0.102 in. (2.591 mm) to 0.120 in. (3.048 mm).



Open area calculations

To calculate the open area of a certain screen, use the simple formula provided



Open Area (%) = Slot Size * 100

Slot size + Wire width

Specification

SIZE

(inch)

O.D

(mm)

SLOT

(inch)

LENGTH

(m)

Collapse

Strength

(psi)

Tensile

Weight

(ton)

Wire size

(mm)

RODS (mm)

4

117

0.040

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8mm/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8mm/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8mm/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8mm/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8mm/50





Product display

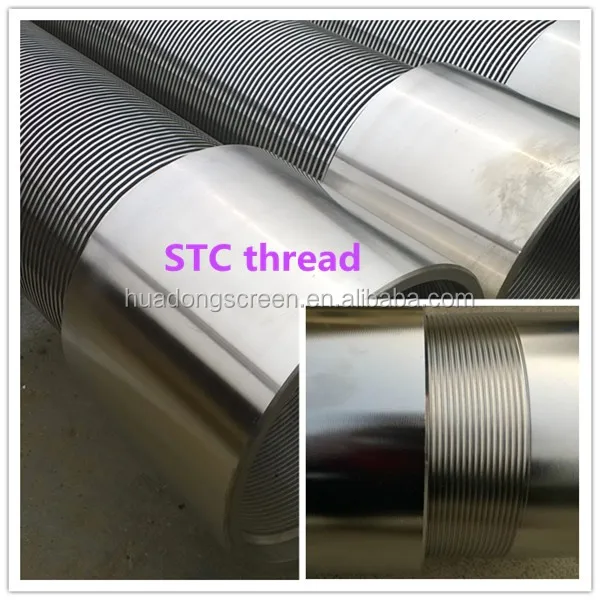

Stainless steel 304/316 0.75mm slot Johnson well screen tube/wedge wire filter

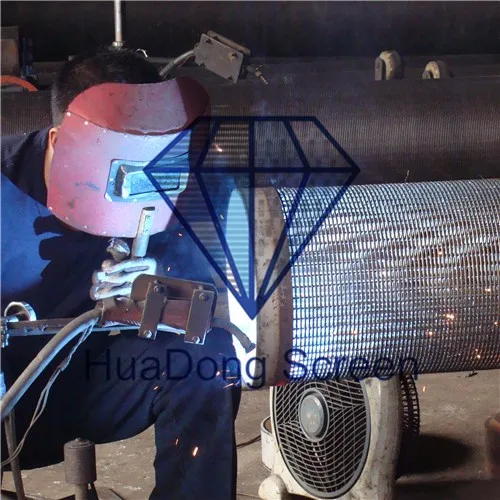

Stainless steel 304/316 0.75mm slot Johnson well screen tube/wedge wire filter





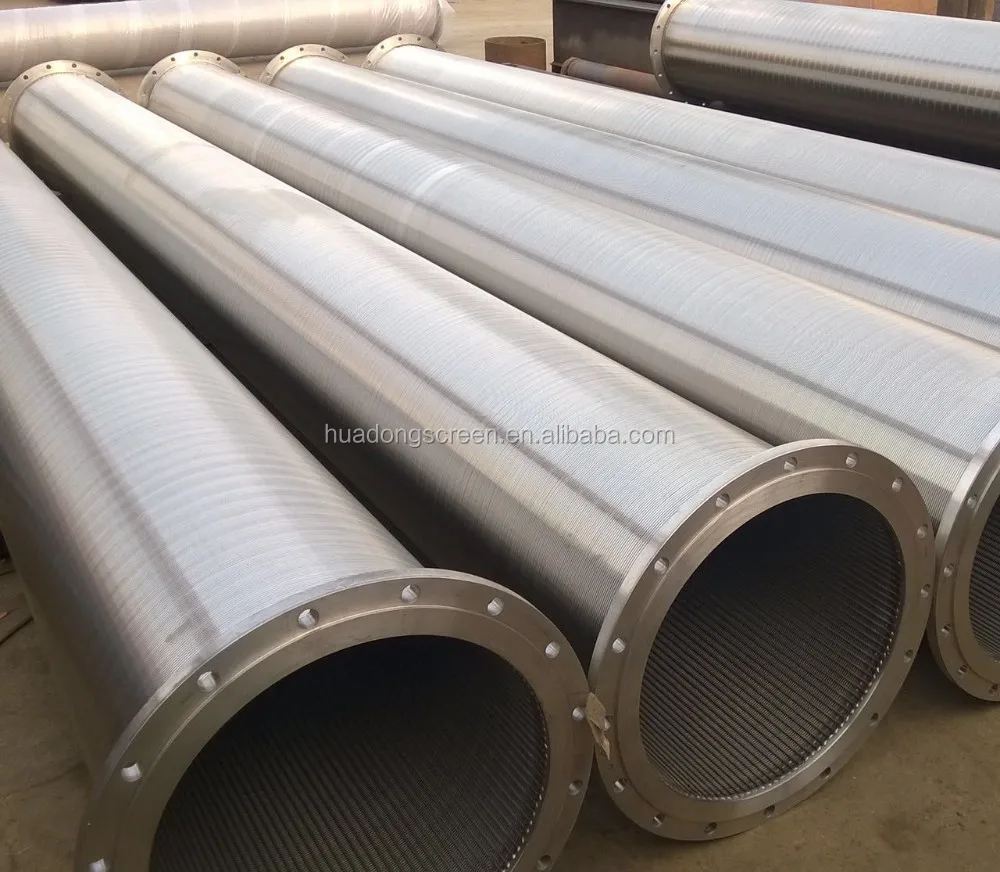

Stainless steel 304/316 0.75mm slot Johnson well screen tube/wedge wire filter

Stainless steel 304/316 0.75mm slot Johnson well screen tube/wedge wire filter

Hot Tags: stainless steel 304/316 0.75mm slot johnson well screen tube/wedge wire filter, China stainless steel 304/316 0.75mm slot johnson well screen tube/wedge wire filter manufacturers, suppliers, factory, Pipe Based Screen
