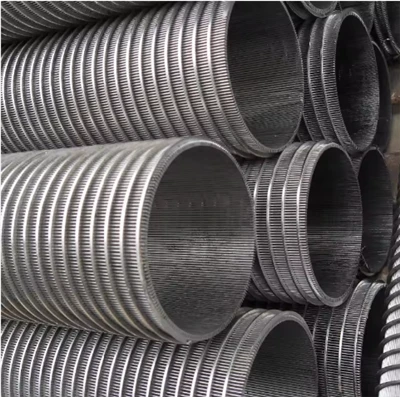

Pipe Based Wire Wrapped Reinforced Water Well Screen For Deep Well

The pipe base screens are used for deep water well application and oil field application. It is used for sand control in wells with high pressure and high traction value due to the depths.
Pipe based well screens consist of base pipe, all-welded wedge wire screen and supporting rod. The base pipe is perforated or slotted API casing pipe. The base pipe can be stainless steel or carbon steel API 5CT casing. The all-welded wedge wire screens are welded together with base pipe by supporting rod.Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapities and high tensile strength Loads. Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing. Opening area for the base pipe is up to 15% and for the jacket is up to 30%. Jacket slot size is between 0.15mm to 3mm.
