Johnson Water Well Strainer /well Screen Pipe With Welded Ring

Overview

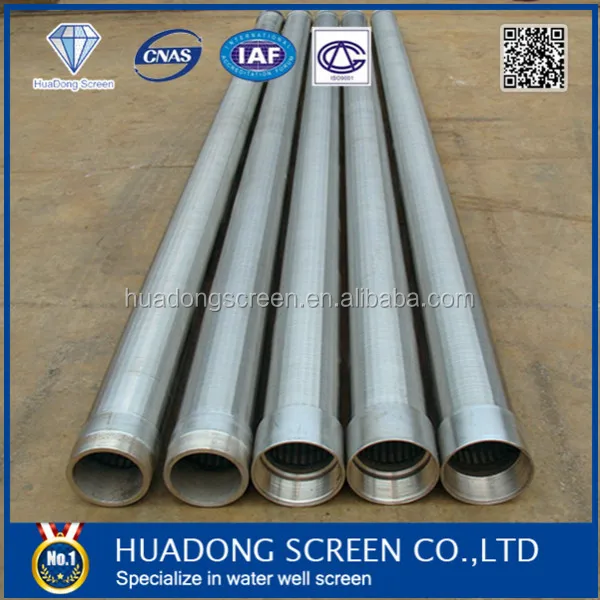

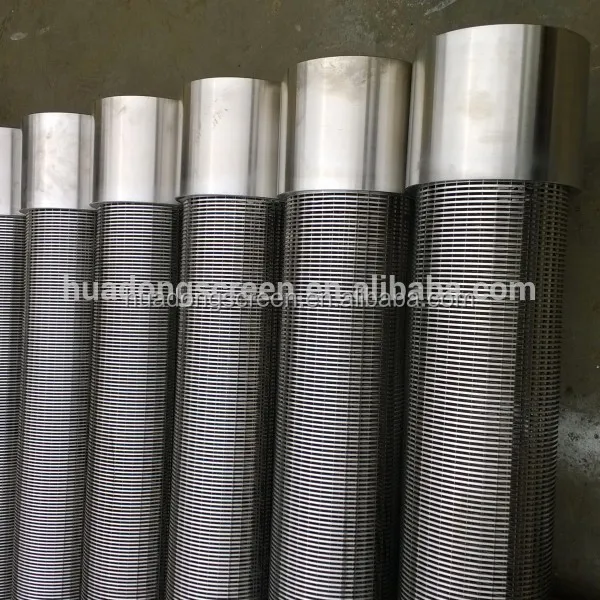

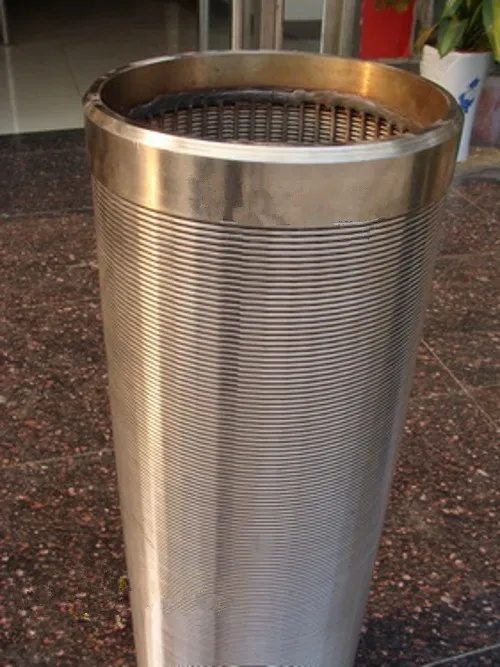

Johnson water well strainer pipe with welded ring

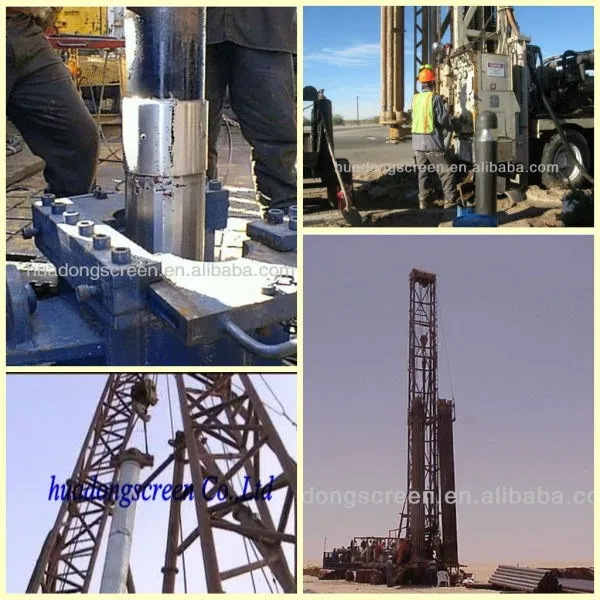

1.The continuous slot wire-wrap screen is used throughout the world for water, oil, and gas wells

2.environmental well completions. It is the dominant screen type used in the water well industry.

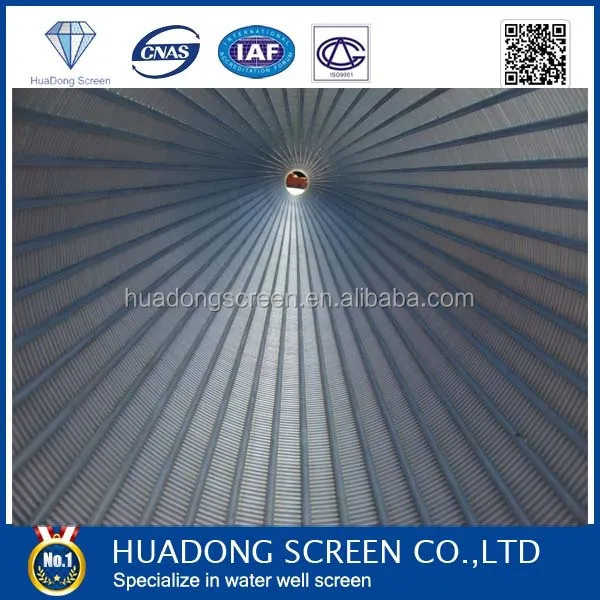

3.this type of screen made up of rods and warp.



4.the rod can be round wire,triangular wire and trapezoid wire.



5.the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.



6.the warp is triangular wire(v-shape wire).



7.The water well screens have astructure and high open area;as well as accurate slot dimension.



8.At the same time,water well screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.





Technical Parameters :

SIZE (INCH)	O.D (MM)	SLOT (INCH)	LENGTH (M)	COLLAPSE STRENGTH (PSI)	TENSILE WEIGHT (TON)	WRAPthick*deep (MM)	RODS (MM)
4	117	0.040	3	395	6	2.2*3.0	3.8MM/22
4	114.3	0.040	3	395	6	2.3*3.0	3.8MM/22
6	168.3	0.040	3	252	8	2.3*3.5	3.8MM/32
8	219.1	0.010	3	399	10.5	3.0*5.0	3.8MM/48
8	219.1	0.020	3	370	10.5	3.0*5.0	3.8MM/48
8	219.1	0.040	3	323	10.5	3.0*5.0	3.8MM/48
10	273.1	0.010	3	206	11	3.0*5.0	3.8MM/50
10	273.1	0.020	3	191	11	3.0*5.0	3.8MM/50
10	273.1	0.040	3	167	11	3.0*5.0	3.8MM/50





We can produce the products according to your requirements.



Production







Packing Details:

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with:

1.Name & identification mark of manufacturer-HuaDong Brand

2. Batch number

3. Date of manufacturer

4. Material

5. Safe heating & application temperature





Application:



The applications of johnson screen in oil refining machines

The applications of johnson screens in water treatment equipments







The company's products are used for large national projects, and enjoys a good reputation in the country, is the leading domestic industry in the area of manufacturing water filters
