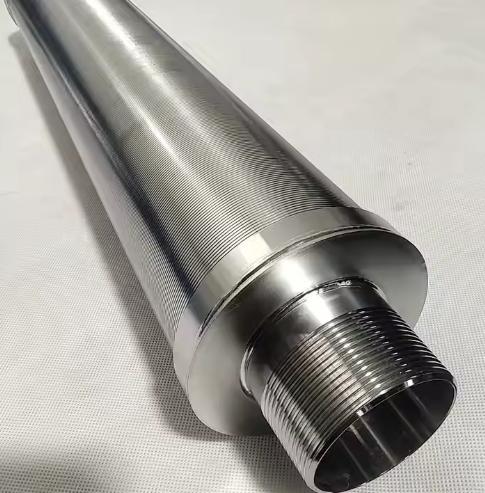

Hot-selling Stainless Johnson Well Screen Pipe For Water Treatment

Hot-selling Stainless Johnson Well Screen Pipe For Water Treatment

Stainless Johnson Well Screen Pipe for Water Treatment Johnson screen consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so it has sturdy constriction and good mechanical property. The V-shape section plane can avoid...

Send Inquiry

Features

Stainless Johnson Well Screen Pipe for Water Treatment
Johnson screen consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so it has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better.
Material
304,316,316L
Diameter range(cm)
2-150
Surface wire size
1.5*2.2 mm or customize
Support rid size
22*2.7 mm or customize
Gap parameter(mm)
0.02-0.5mm
Connection way
Flat end,pipe hoop, flange, thread
Remark
Provide customized services
product-1-1



Product FeatureS
1.Bear the great differential pressure due to high mechanical strength. 2.Form the even filter cake conducive to the back wash due to the even slit. 3.Wedge slit can improve the regeneration capacity of back wash. 4.Proof pressure, temperature resistance, ageing resistance, corrosion resistance. applicable to a variety of fluid. 5.Adopting metal wedge wire screen (johnson pipe) as the filtering element, the metalwedge screen filtering element is characterized by high mechanical strength, strong differentialpressure resistance and easiness of back wash and regeneration.
product-1-1
product-1-1
